Advance Tabco  |  SKU: 94-23-60-18R

Advance Tabco 94-23-60-18R Regaline Compartment Sinks

$4,793.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

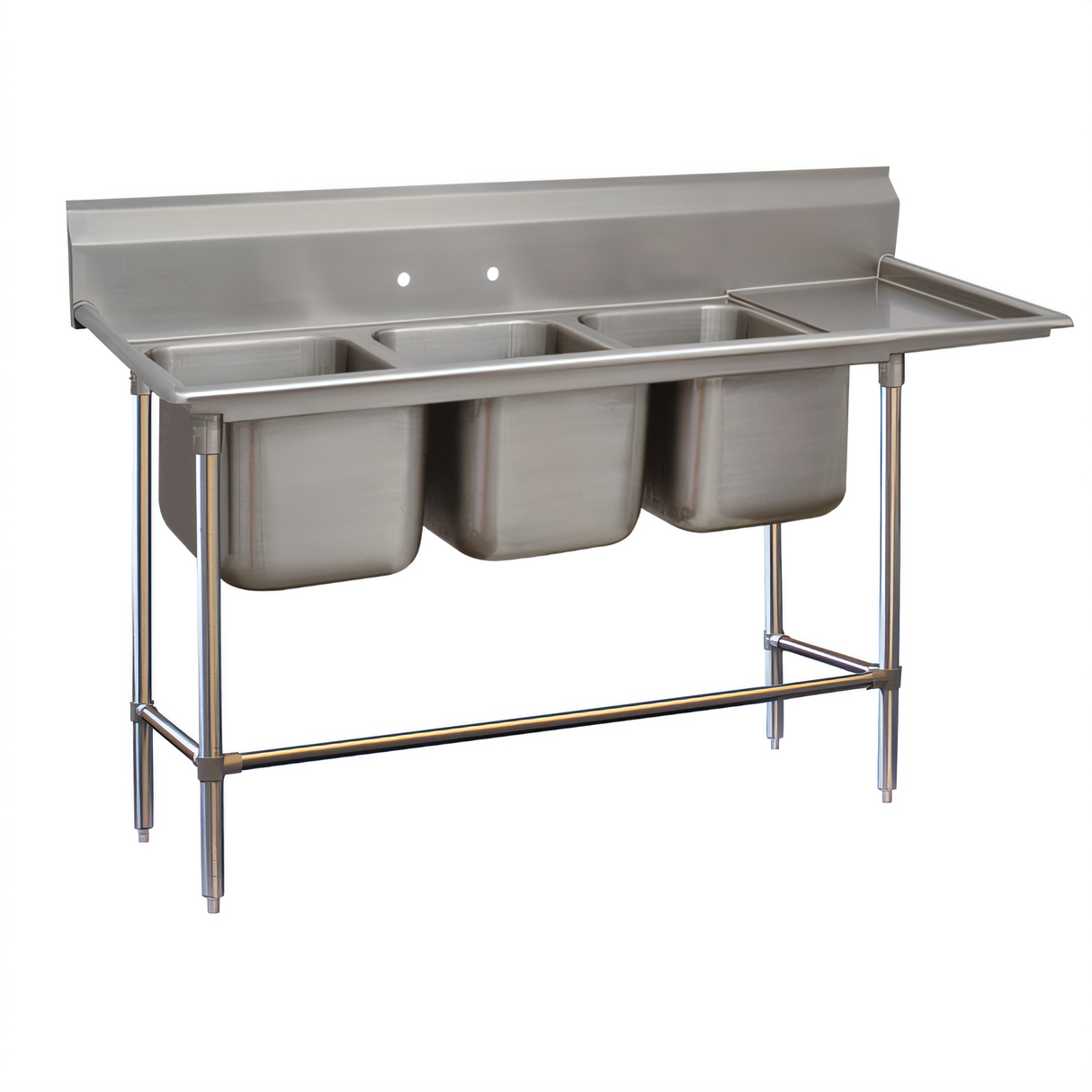

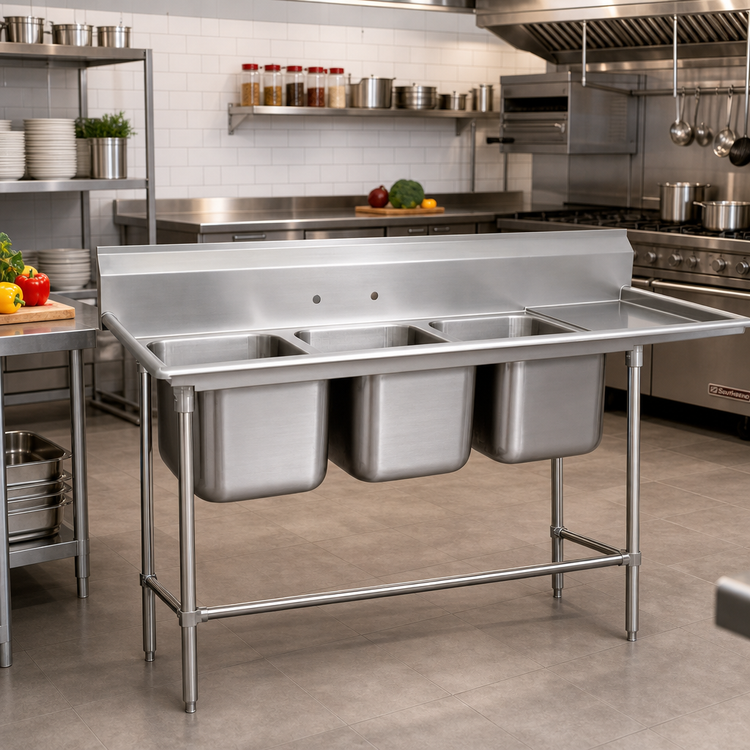

Advance Tabco Regaline 3-Compartment Sink w/ 18" Right Drainboard

Model 94-23-60-18R | NSF Listed, 14 ga. 304 Stainless Steel

Engineered for heavy-duty, high-volume warewashing, the Advance Tabco Regaline 94-23-60-18R delivers outstanding durability and ergonomics in a compact 90" footprint. Three spacious 20" × 20" bowls handle everything from prep to pots & pans, while the integrated 18" right-hand drainboard speeds drying and staging.

Key Features

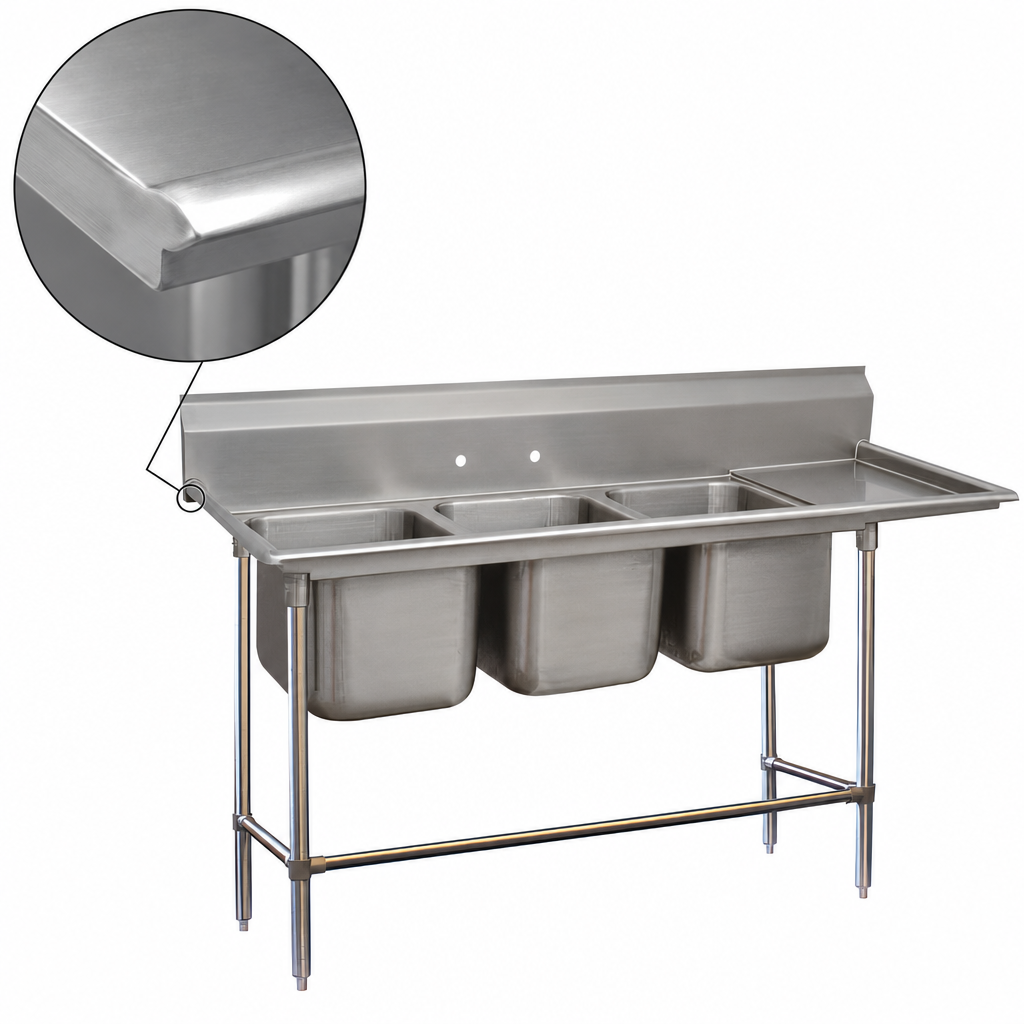

  • 14 ga. type 304 stainless steel – our heaviest Regaline gauge for maximum rigidity
  • One-piece deep-drawn bowls with 14" working depth and easy-clean 3" radius corners
  • 11" high backsplash with 2" return helps keep walls dry and sanitary
  • 18" drainboard (right) features stamped drain lines for quick water run-off
  • 1⅝" Ø stainless legs with adjustable front & side cross-bracing for rock-solid stability
  • 1" adjustable stainless bullet feet level the sink on uneven floors
  • (3) 1½" IPS basket drains included; bowls pre-punched for 8"-OC faucets
  • All TIG-welded construction, blended to a high-grade satin finish
  • NSF certified for foodservice sanitation

At-a-Glance Specs

Overall dimensions 90" L × 28" F/B × 34" H (to rolled rim)
Bowl count / size 3 bowls, each 20" F/B × 20" W × 14" D
Drainboard 18" L (right-hand)
Backsplash height 11"
Gauge / material 14 ga. 304 stainless steel (sink & drainboard)
Legs & bracing 1 ⅝" Ø S/S legs, adjustable left-to-right & front cross rails
Drain size 1 ½" IPS center outlet w/ stainless basket strainers
Faucet holes 8" centers (faucets sold separately)
Approx. weight 234 lb

Ideal Applications

  • Mid- to high-volume restaurants & bars
  • Hotel room-service & banquet kitchens
  • Catering commissaries
  • School & hospital foodservice
Note: Faucets, overflow pipes, and trap assemblies are not included and must be ordered separately. Specify right- or left-hand drainboard orientation when purchasing.

Need custom modifications or accessories? Ask us about Advance Tabco Smart Fabrication™ for tailored solutions.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

90.0in

Depth

28.0in

Shipping Weight

234.0lbs

Drainboards

with right-hand drainboard

Overall Length

85" - 96"

Top Gauge

14 gauge

Sink Depth (rim - drain)

14"

Compartment Width (side - side)

20"

Base Type

legs with boxed crossrails

Base Construction

stainless steel

Splash Height

11"

Top Stainless Series

300 series

Compartment (front - back)

20"

Specifications

Regaline Sink, 3-compartment, with right-hand drainboard, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 90" L/R, NSF
