Advance Tabco  |  Regaline  |  SKU: 94-22-40-36RL  |  UPC: 747545109941

Advance Tabco 94-22-40-36RL Regaline Compartment Sinks

$4,622.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

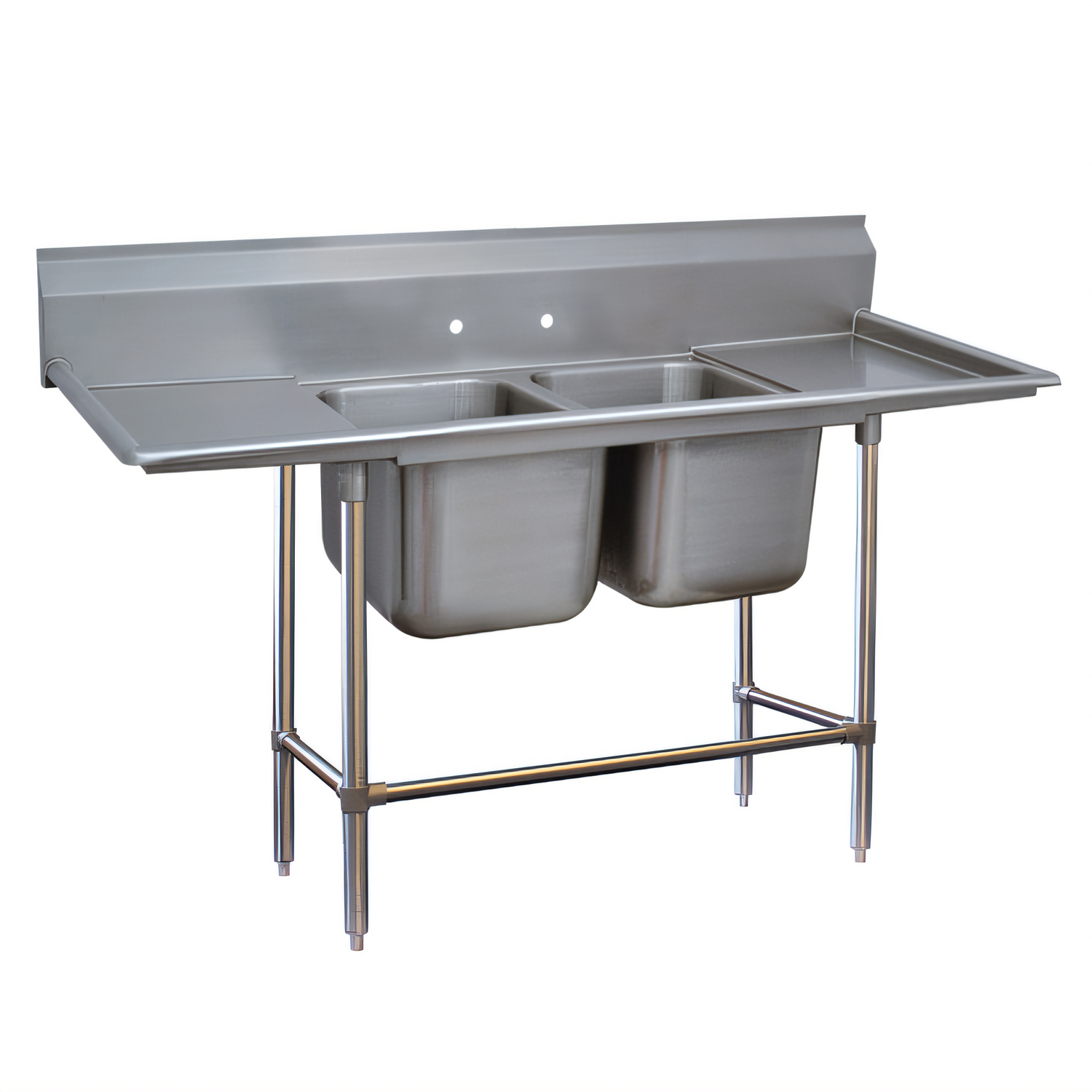

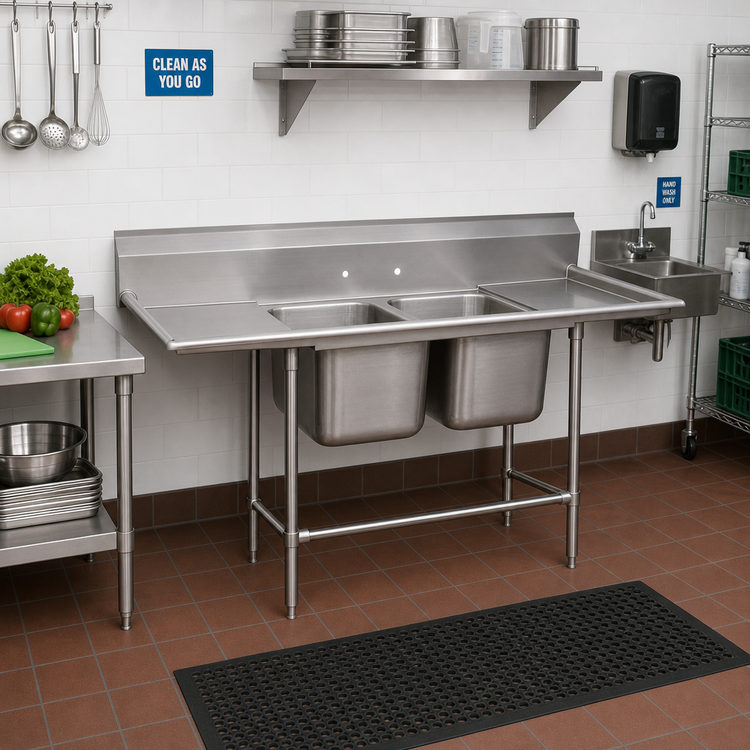

Advance Tabco Regaline 94-22-40-36RL 2-Compartment Sink w/ (2) 36" Drainboards

14-Gauge Type 304 Stainless Steel | NSF Listed

Give your dish or prep area the rugged performance it deserves. Engineered from heavy-duty 14-gauge stainless steel, the Regaline 94-22-40-36RL pairs two generous 20" × 20" × 14" bowls with full-length 36" drainboards on both sides—perfect for high-volume pot washing, produce prep or sheet-pan rinsing. Seam-welded construction, an 11" backsplash and extra support legs keep the station rock-solid shift after shift.

Key Benefits

  • Spec-Line 14-gauge 304 stainless steel resists dents, rust and harsh chemicals.

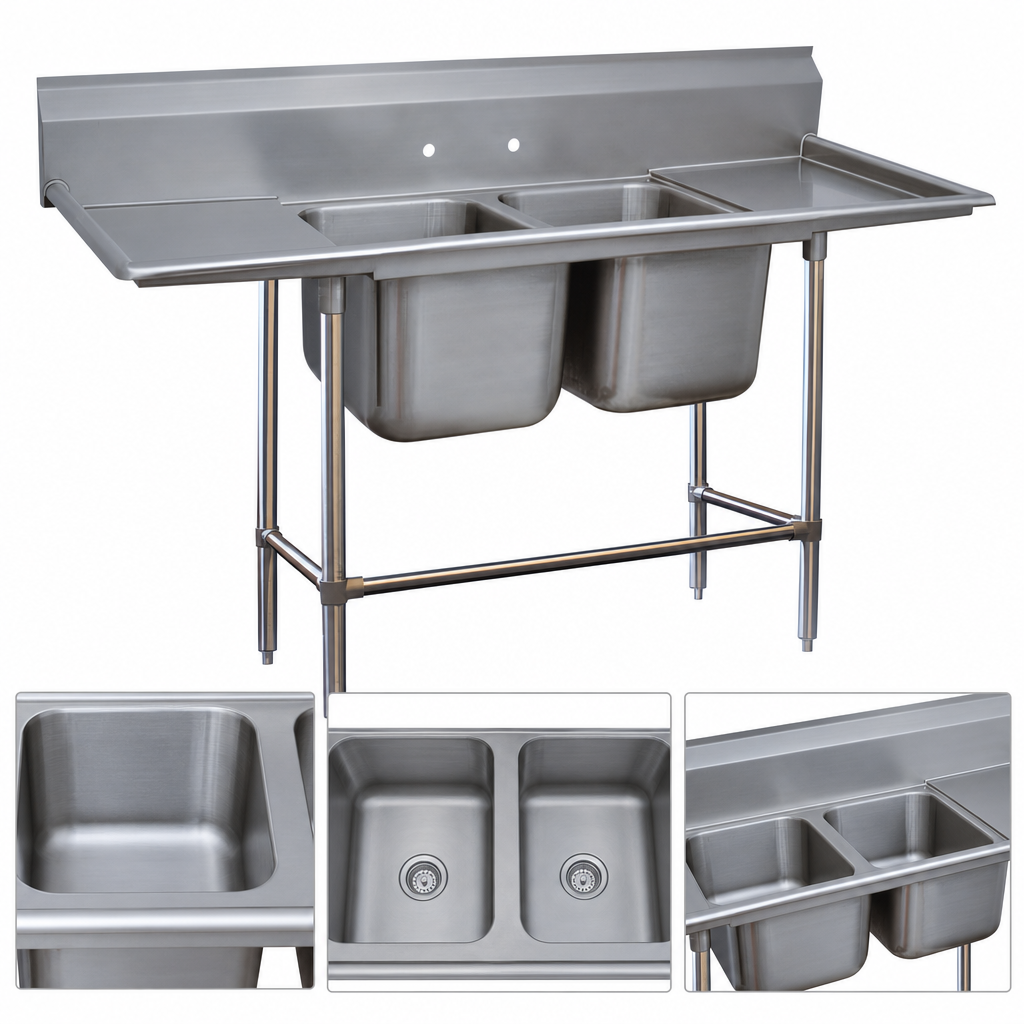

  • (2) Seamless deep-drawn bowls with 3" radius corners for fast, sanitary clean-up.
  • Left & right 36" drainboards feature pitched drain channels; additional legs supplied to prevent sagging.
  • Integral 11" backsplash with tile edge protects walls and speeds installation.
  • 1 5⁄8" Ø stainless legs with both front & side adjustable cross-bracing for maximum rigidity.
  • 1" adjustable bullet feet level the sink on uneven floors.
  • Pre-punched 8"-on-center faucet holes; 1 1⁄2" IPS basket drains included.
  • TIG-welded seams are blended to a satin finish for a professional appearance.
  • NSF certified for open food-service use.

At-A-Glance Specs

Series / Model Regaline 94 Series / 94-22-40-36RL
Compartments 2
Bowl Interior (each) 20" W × 20" F-B × 14" D
Drainboards (2) 36" L – left & right
Overall Dimensions 117" W × 28" D × 45" H (to top of backsplash)
Backsplash Height 11"
Material / Gauge 14-ga Type 304 stainless steel, satin finish
Legs & Bracing 1 5⁄8" Ø S/S legs, adjustable front & side cross-bracing, 1" bullet feet
Drain Opening 1 1⁄2" IPS basket drains (center of bowls)
Faucet Holes (1) set, 8" on-center (faucet not included)
Shipping Weight Approx. 273 lb
Certifications NSF
Important: Faucet, trap and other plumbing accessories are sold separately.

Need a different bowl size, drainboard length or pre-installed accessories?  Contact us for a custom Advance Tabco Smart Fabrication quote.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

117.0in

Depth

28.0in

Shipping Weight

273.0lbs

Drainboards

with left & right-hand drainboards

Sink Depth (rim - drain)

14"

Overall Length

91" - 135"

Top Stainless Series

300 series

Splash Height

11"

Base Construction

stainless steel

Compartment (front - back)

20"

Top Gauge

14 gauge

Compartment Width (side - side)

20"

Base Type

legs with front & side crossrails

Specifications

Regaline Sink, 2-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 36" drainboards, 1" adjustable feet, 14 gauge 304 stainless steel, overall 28" F/B x 117" L/R, NSF
