Advance Tabco  |  Regaline  |  SKU: 94-22-40-36L  |  UPC: 747545109927

Advance Tabco 94-22-40-36L Regaline Compartment Sinks

$4,298.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

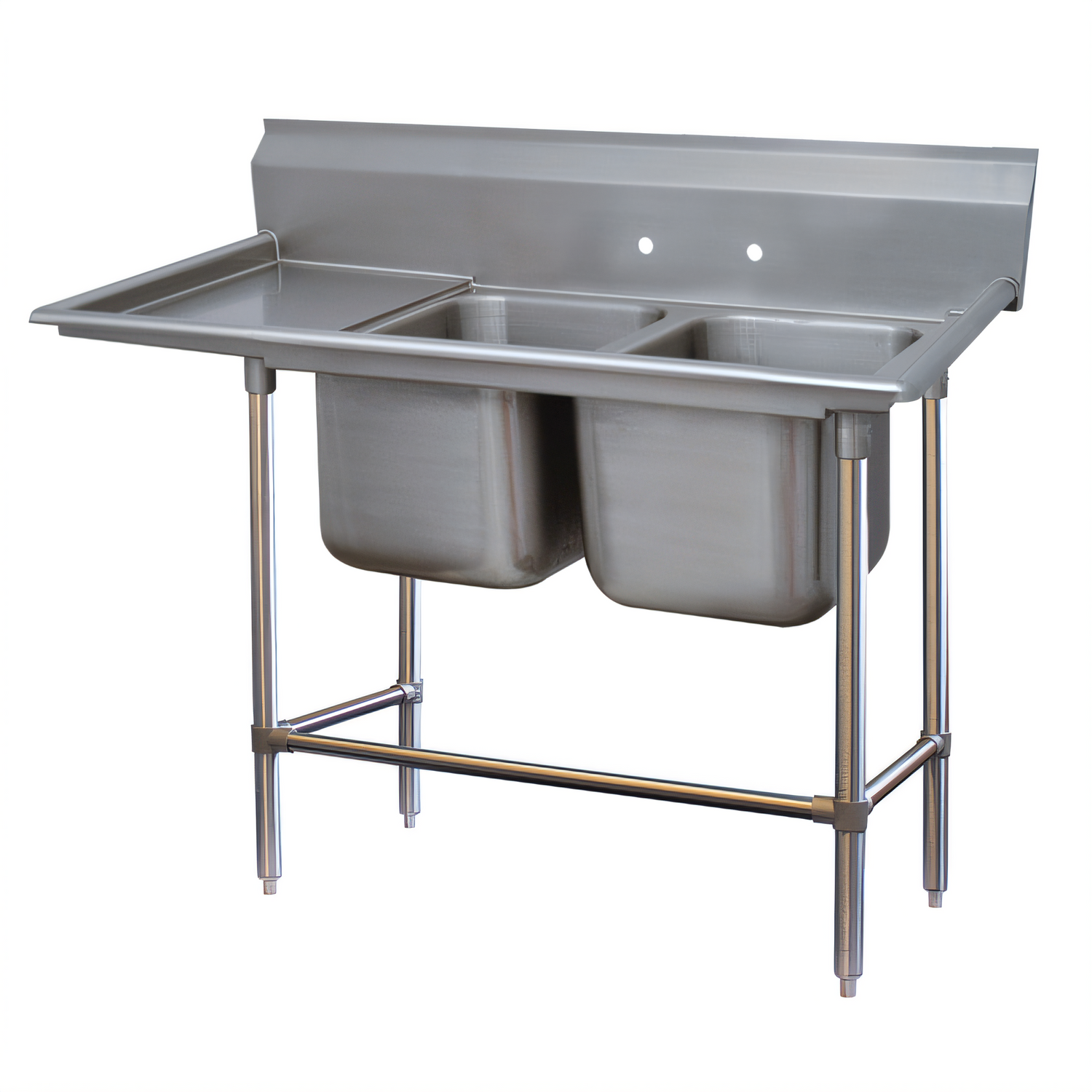

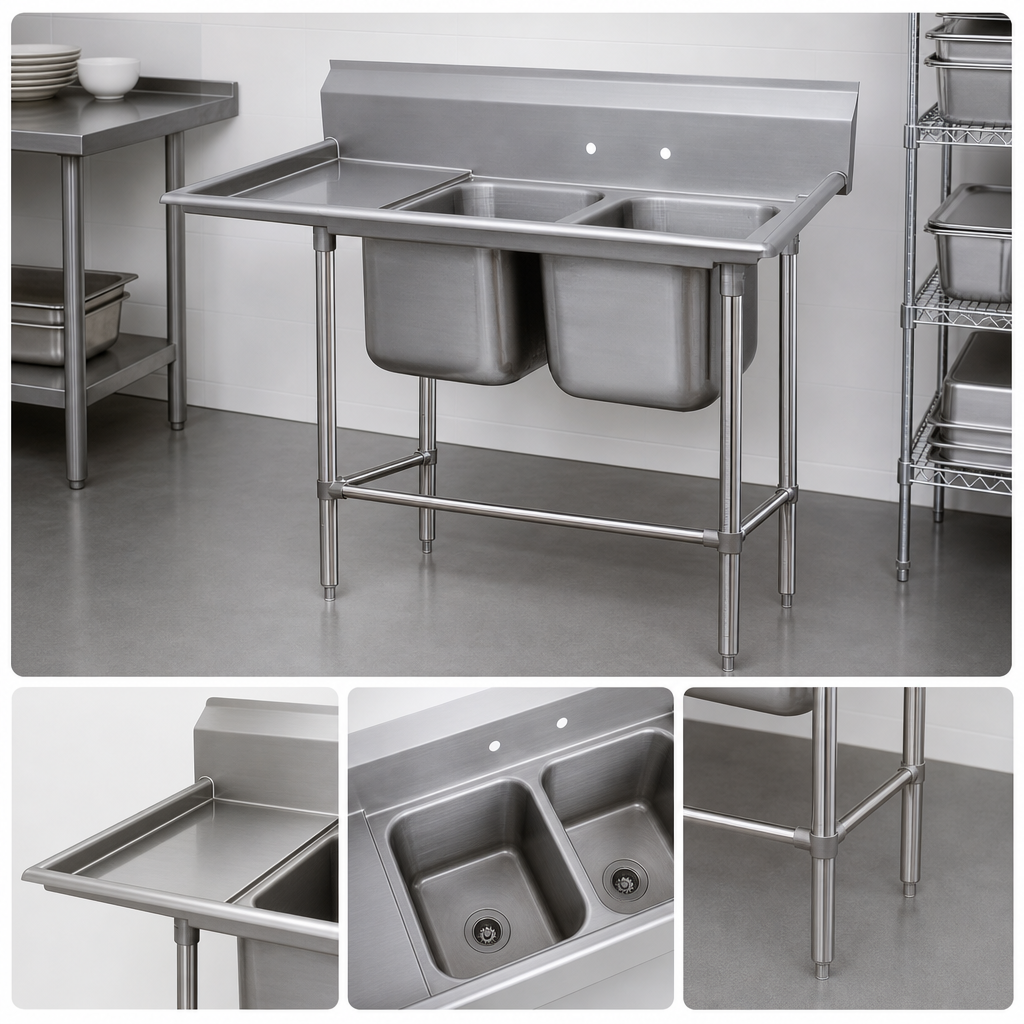

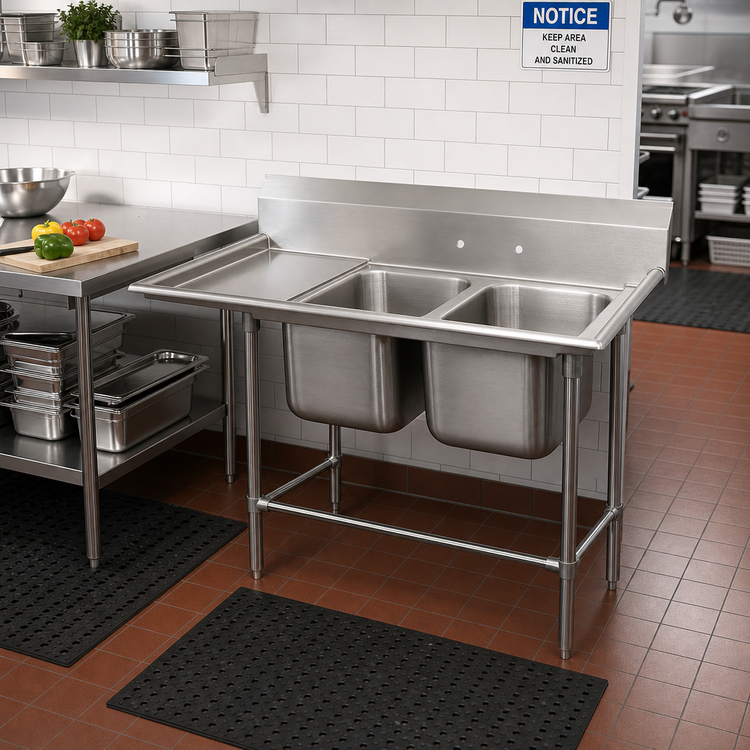

Advance Tabco 94-22-40-36L “Regaline” 2-Compartment Sink with 36" Left Drainboard

85" L x 28" D x 44" H overall • Two 20" x 20" x 14" bowls • NSF Listed

Built from extra-heavy 14-gauge type 304 stainless steel, this Spec-Line Regaline sink is engineered for the busiest commercial kitchens. Deep, seamless bowls, a full 36" drainboard and rock-solid leg bracing create a durable, sanitary workstation that keeps dishes, pots and prep ware moving.

Why you’ll love it

  • 14 ga 304 stainless steel stands up to constant impact, chemicals and high-heat sanitizing.
  • Two 20" x 20" x 14" deep-drawn bowls with 3" radius corners clean fast and drain completely.
  • Integrated 36" left-hand drainboard speeds drying and staging.
  • 11" high backsplash with tile edge protects walls and simplifies installation.
  • 1 5/8" Ø stainless legs with adjustable front & side cross-bracing—plus two extra support legs for the oversized drainboard.
  • 1" adjustable stainless bullet feet level the sink on uneven floors.
  • Factory 8"-on-center faucet holes; add the wall-mount faucet of your choice (sold separately).
  • Supplied with (2) 1 1/2" IPS stainless basket drains.

Quick-view specifications

Series / Model Regaline Spec-Line 94-22-40-36L
Compartments (2) 20" W x 20" F-B x 14" D
Drainboard 36" Left-hand
Overall Dimensions 85" L x 28" F-B x 44" H (to top of backsplash)
Backsplash Height 11"
Material / Gauge 14 ga type 304 stainless steel
Legs & Bracing 1 5/8" Ø S/S legs, adjustable front & side cross-braces, 6-leg configuration
Feet 1" adjustable stainless bullet feet
Faucet Holes 8" centers, 1-1/8" dia.
Waste Drains 1 1/2" IPS basket-type (included)
Shipping Weight Approx. 163 lb
Certifications NSF

Looking for alternate bowl sizes, drainboard orientations or custom punchings? Ask about Advance Tabco’s Smart Fabrication™ modifications.

Heads-up: Faucets, supply lines and traps are sold separately. Confirm local code requirements before installation.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

85.0in

Depth

28.0in

Shipping Weight

163.0lbs

Splash Height

11"

Sink Depth (rim - drain)

14"

Drainboards

with left-hand drainboard

Overall Length

73" - 90"

Compartment (front - back)

20"

Base Construction

stainless steel

Top Gauge

14 gauge

Compartment Width (side - side)

20"

Top Stainless Series

300 series

Base Type

legs with front & side crossrails

Specifications

Regaline Sink, 2-compartment, with left-hand drainboard, 20" front-to-back x 20"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 36" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 85" L/R, NSF
