Description

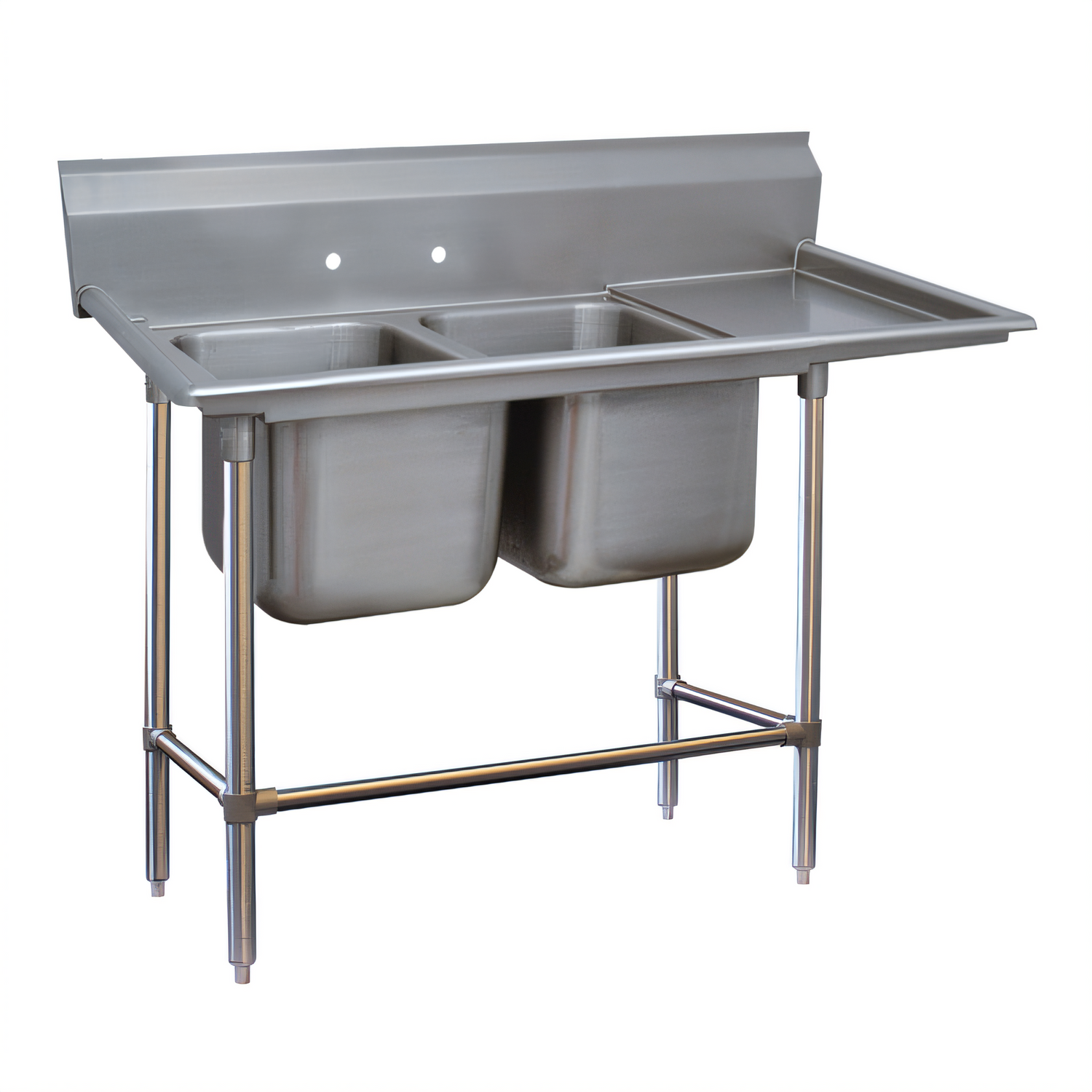

Advance Tabco Regaline 2-Compartment Sink
with 24" Right-Hand Drainboard
Model 94-22-40-24R | NSF Listed
Built from heavy-duty 14 ga. type 304 stainless steel, this Regaline Spec-Line sink delivers the strength, sanitation and workflow efficiency today’s busy prep and warewashing areas demand.
Why You’ll Love It
- Two seamless 20" × 20" bowls—14" deep—for versatile dish & pot washing.

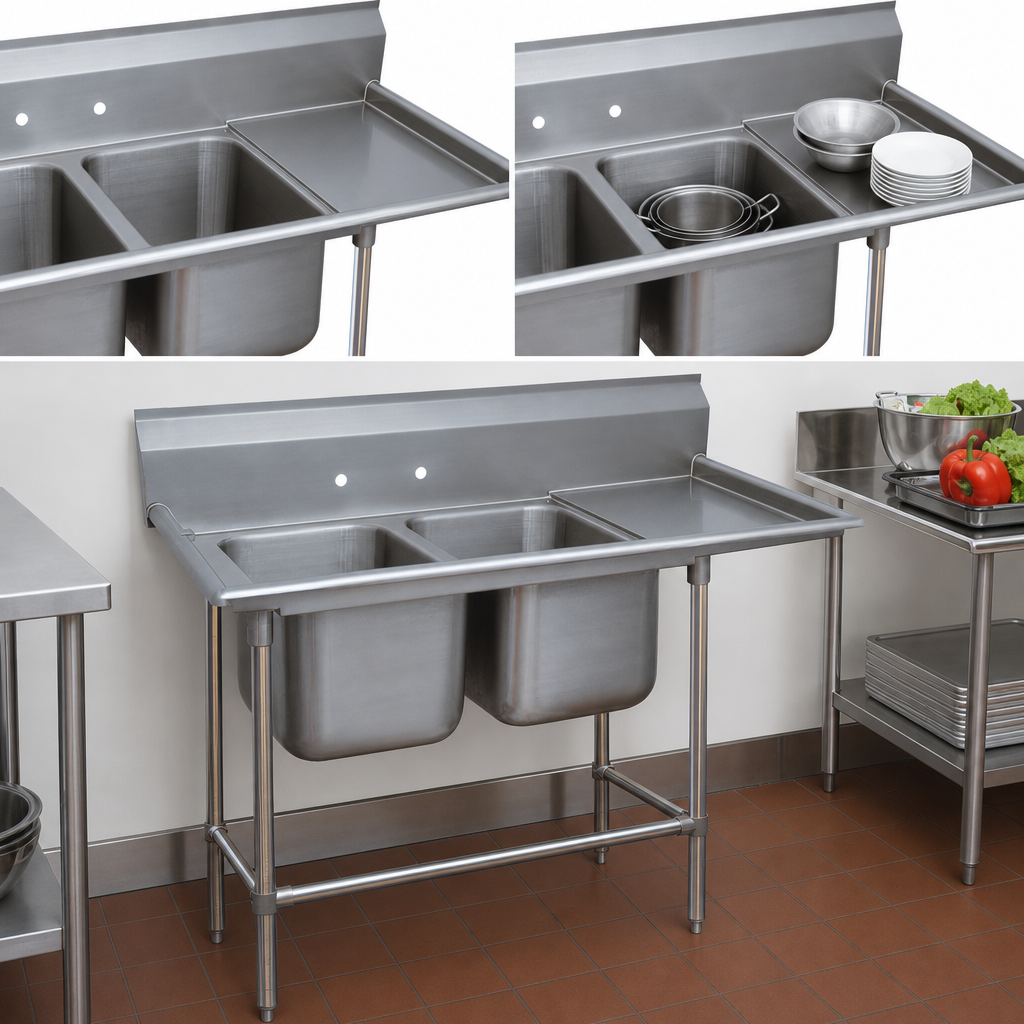

- Integrated 24" drainboard (right side) keeps clean or dirty wares organized and off the counter.
- 11" high backsplash with tile-edge eases installation and contains splashes.
- Large 3" bowl corner radii simplify clean-up and promote superior drainage.
- Fully TIG-welded with satin-smooth finish for a professional look and long service life.
- 1⅝" Ø tubular stainless legs with adjustable front & side cross-bracing—no wobble, even under full loads.
- 1" stainless bullet feet provide up to 1" of leveling adjustment on uneven floors.
- Includes (2) 1½" IPS basket drains—ready to hook up out of the crate.
Ideal Applications
- Restaurants & cafeterias
- Catering & commissary kitchens
- School, hospital and corporate foodservice
- Bar glass & utensil washing stations
Product Specifications
Series / Construction | Regaline Spec-Line, 14 ga. 304 stainless steel |
---|---|
Compartments | (2) 20" W × 20" F/B × 14" D bowls |
Drainboard | 24" right-hand, integral with splash |
Backsplash Height | 11" |
Overall Dimensions | 73" L/R × 28" F/B × 44" H (to top of backsplash) |
Faucet Mount | (2) holes on 8" centers (faucet sold separately) |
Drain Size & Type | 1½" IPS stainless basket drains, center-mounted |
Legs / Bracing | 1⅝" Ø S/S legs with adjustable left-to-right & front cross rails |
Adjustability | 1" S/S bullet feet |
Shipping Weight | Approx. 136 lb |
Certifications | NSF |
Plumbing & Installation Notes
- 1/2" IPS hot & cold supply lines required.
- Faucet, traps and supplies are not included.
- Review rough-in drawings to position floor or wall penetrations prior to installation.
Need custom modifications (extra drainboards, pre-rinses, or cutting board accessories)? Contact us for a Smart Fabrication™ quote.
