Advance Tabco 94-22-40-24L Regaline Compartment Sinks
Description

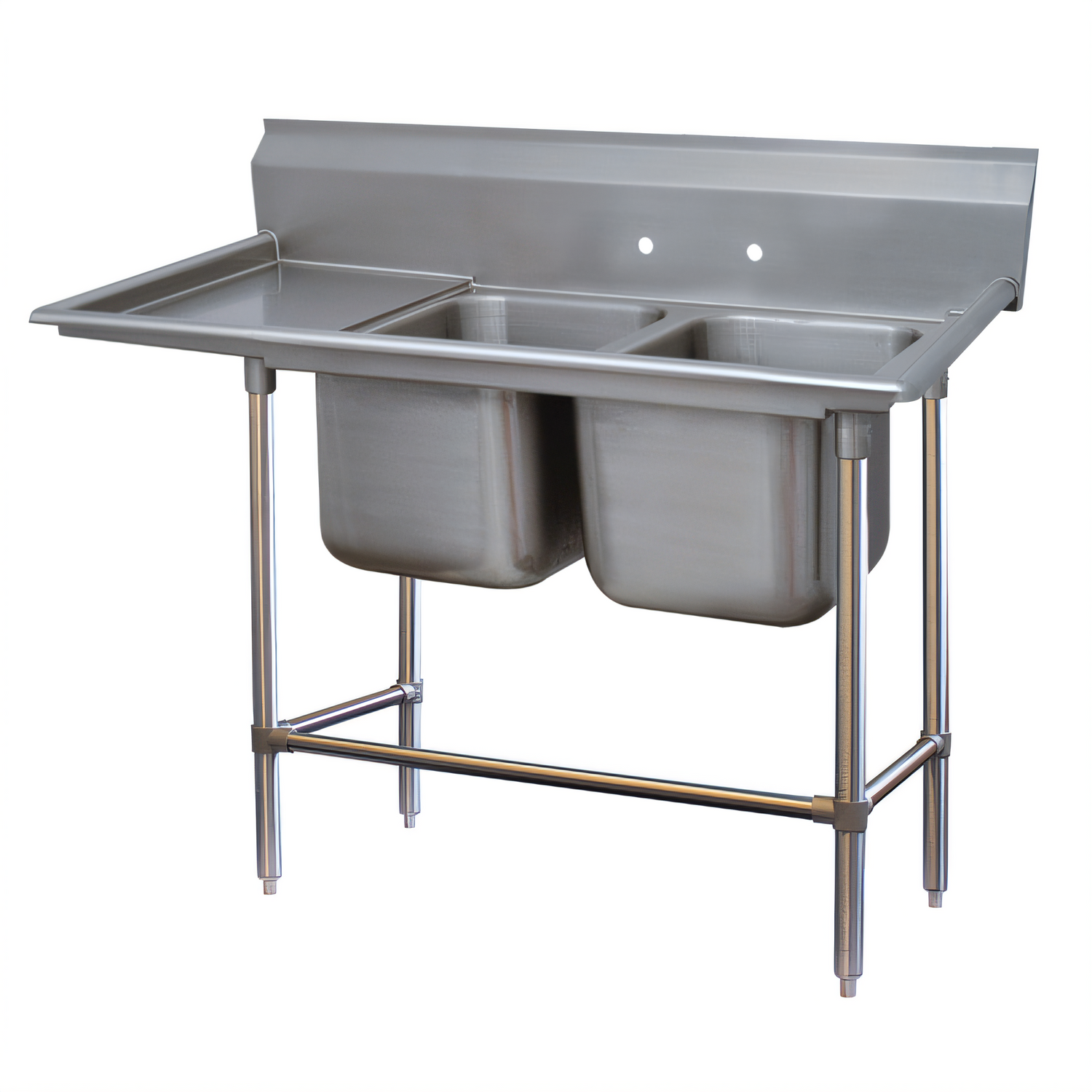

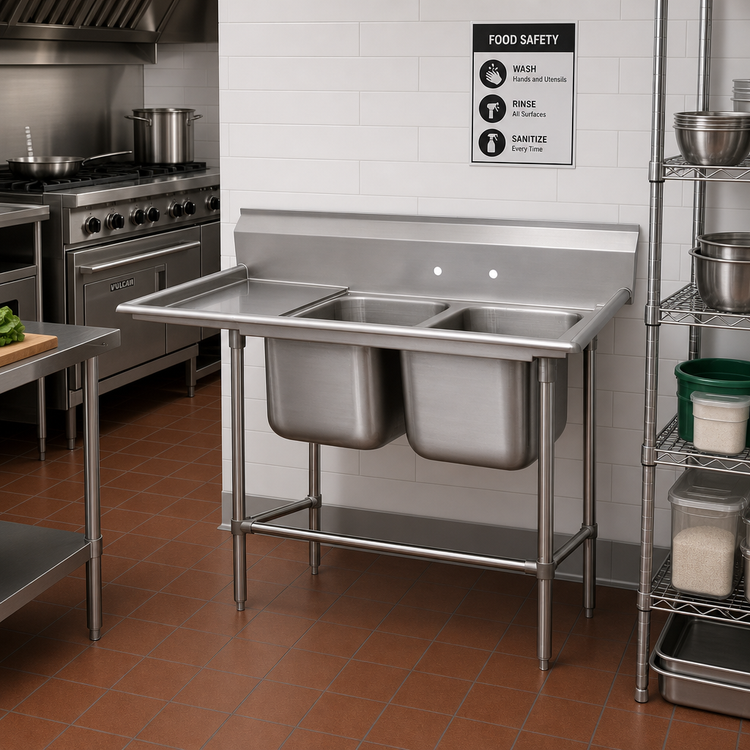

Advance Tabco Regaline 2-Compartment Sink w/ 24" Left Drainboard – 94-22-40-24L
Spec-Line 94 Series | 14 ga 304 Stainless Steel | NSF CertifiedBuilt for the heaviest commercial workloads, the Regaline 94-22-40-24L combines two generous 20" × 20" bowls, a full-length 24" left-hand drainboard and rock-solid 14-gauge construction. Seam-less TIG welds, an 11" backsplash and adjustable front-and-side bracing deliver a sanitary, worry-free workstation that installs fast and cleans even faster.
Key Benefits
- Premium 14 ga type 304 stainless steel sinks, drainboard & legs resist corrosion and dents.
- Deep-drawn 14" bowls with large 3" radius corners speed cleanup and improve drainage.
- Integrated 11" backsplash with 8"-on-center faucet holes protects walls and simplifies rough-ins.
- 24" pitched drainboard (left) keeps dishes and cookware off the counter while directing water back to the bowl.
- 1 ⅝" tubular stainless legs with adjustable front & side cross-bracing provide maximum stability.
- 1" stainless bullet feet level the unit on uneven floors.
- (2) 1 ½" IPS basket drains included; ready for standard plumbing hook-ups.
- NSF listed for open food-service use.
At-a-Glance Specifications
| Series / Model | Regaline 94 Series – 94-22-40-24L (left drainboard) |
|---|---|
| Compartments | 2 |
| Bowl Dimensions (W × F/B × Depth) | 20" × 20" × 14" |
| Drainboard Size | 24" (left-hand) |
| Overall Dimensions (L × F/B) | 73" × 28" |
| Backsplash Height | 11" |
| Material Thickness | 14 ga (0.078") |
| Legs / Bracing | 1 ⅝" Ø S/S legs with adjustable front & side cross-braces |
| Faucet Holes | 8" centers, 1 ⅛" dia. (faucet not included) |
| Drains | (2) 1 ½" IPS basket drains (centered in each bowl) |
| Approx. Ship Weight | 136 lb |
| Certifications | NSF |
Perfect For
- Restaurant & hotel kitchens
- Catering commissaries & ghost kitchens
- School & institutional food-service operations
- Bar or prep areas needing a full-size drainboard
Need a different drainboard orientation, bowl size or custom modification? Ask about Advance Tabco’s Smart Fabrication™ program — contact us for a quote.
