Advance Tabco 94-22-40-18R Regaline Compartment Sinks
$3,838.00
Unit price
/
Unavailable
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 94-22-40-18R Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 94-22-40-18R Regaline Compartment Sinks
$3,838.00
Unit price
/
Unavailable
Description

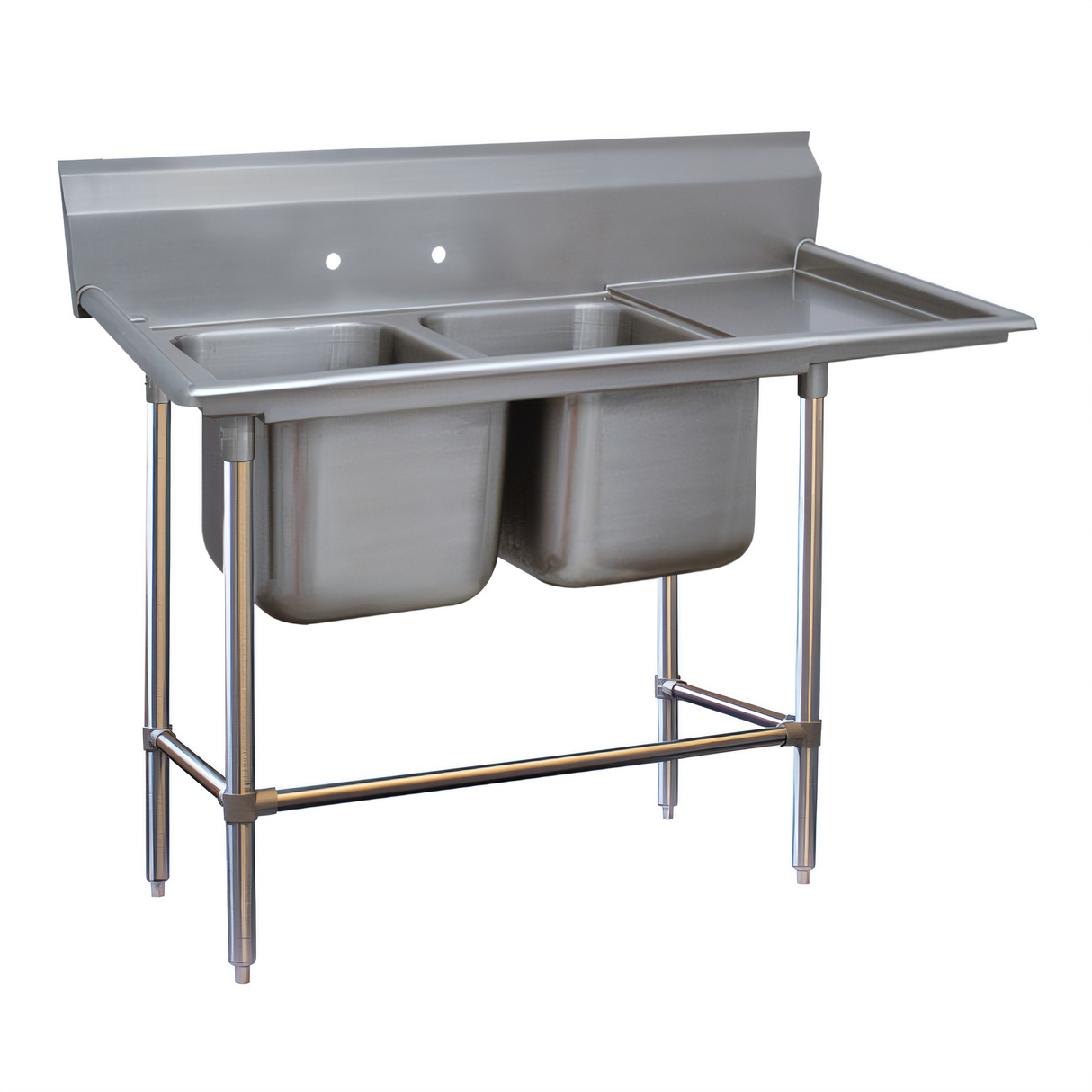

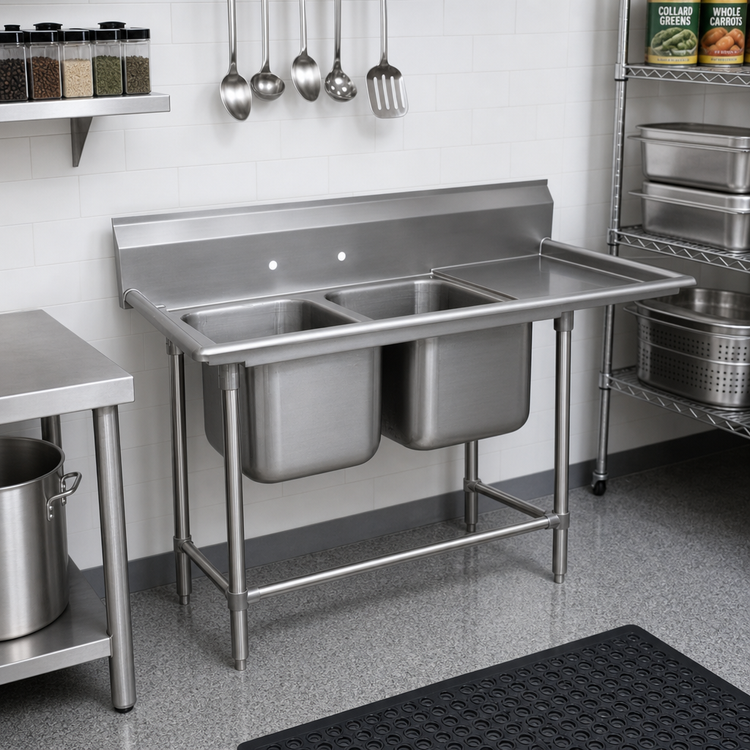

Advance Tabco Regaline 94-22-40-18R 2-Compartment Sink w/ 18" Right Drainboard
14 ga Type 304 Stainless Steel • 20" × 20" × 14" Bowls • NSF ListedBuilt for the rigours of high-volume service, the Regaline Spec-Line sink delivers exceptional strength, sanitation and workflow efficiency in a space-saving 67" footprint.
Key advantages
- Seamless TIG-welded construction with blended satin finish for a crisp, professional appearance.
- Heavy-duty 14 ga type 304 stainless steel—40 % thicker than 18 ga sinks—for superior dent and corrosion resistance.

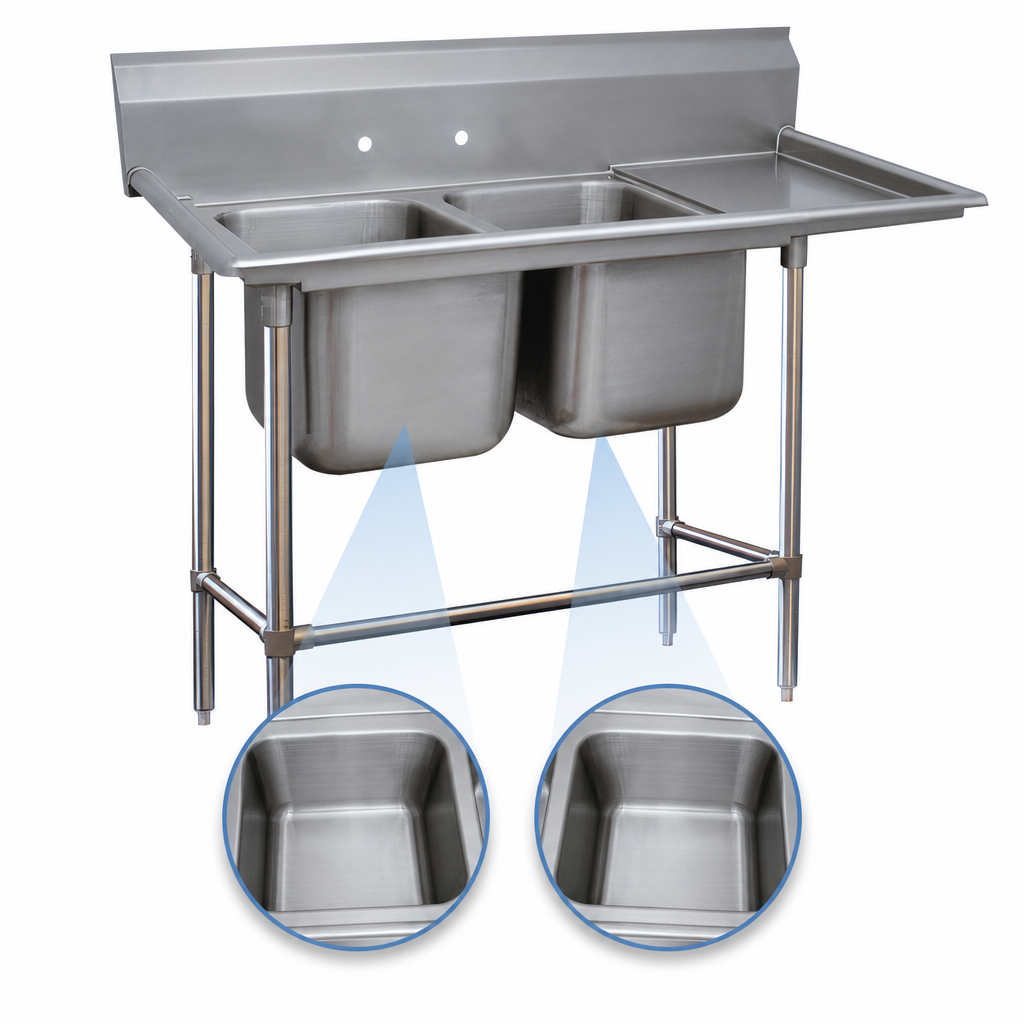

- Two deep-drawn 20" × 20" bowls, 14" deep, with easy-to-clean 3" radius corners.
- Integral 18" right-hand drainboard with splash keeps countertops dry and organised.
- 11" high backsplash with tile edge simplifies installation and shields surrounding walls.
- 1 ⅝" O.D. stainless legs with adjustable front and side cross-bracing for rock-solid stability.
- 1" stainless bullet feet adjust quickly to uneven floors—no tools required.
- (2) faucet holes on 8" centres and 1 ½" IPS basket drains included for easy hook-up.
- NSF certified for use in all commercial food-service applications.
Technical specifications
| Model | 94-22-40-18R (right-hand drainboard) |
|---|---|
| Compartments | 2 |
| Bowl size (W × F/B × D) | 20" × 20" × 14" |
| Drainboard | 18" (integral, right side) |
| Overall dimensions | 67" L/R × 28" F/B |
| Backsplash height | 11" |
| Material / gauge | 14 ga 304 stainless steel |
| Legs & bracing | 1 ⅝" Ø stainless legs with adjustable front & side cross-rails |
| Feet | 1" adjustable stainless bullet feet |
| Drain opening | 1 ½" IPS with stainless basket strainers (centre of each bowl) |
| Faucet holes | (2) × 1 ⅛" Ø holes on 8" centres |
| Approx. shipping weight | 118 lb |
| Certifications | NSF |
Faucet, cutting boards, sink covers and other accessories are sold separately.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
45.0in
Width
67.0in
Depth
28.0in
Shipping Weight
118.0lbs
Overall Length
63" - 72"
Sink Depth (rim - drain)
14"
Compartment (front - back)
20"
Top Stainless Series
300 series
Splash Height
11"
Base Construction
stainless steel
Top Gauge
14 gauge
Compartment Width (side - side)
20"
Base Type
legs with front & side crossrails
Drainboards
with right-hand drainboard
Specifications
Regaline Sink, 2-compartment, with right-hand drainboard, 20" front-to-back x 20"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 67" L/R, NSF
