Advance Tabco  |  Regaline  |  SKU: 94-22-40-18L  |  UPC: 747545109835

Advance Tabco 94-22-40-18L Regaline Compartment Sinks

$4,029.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

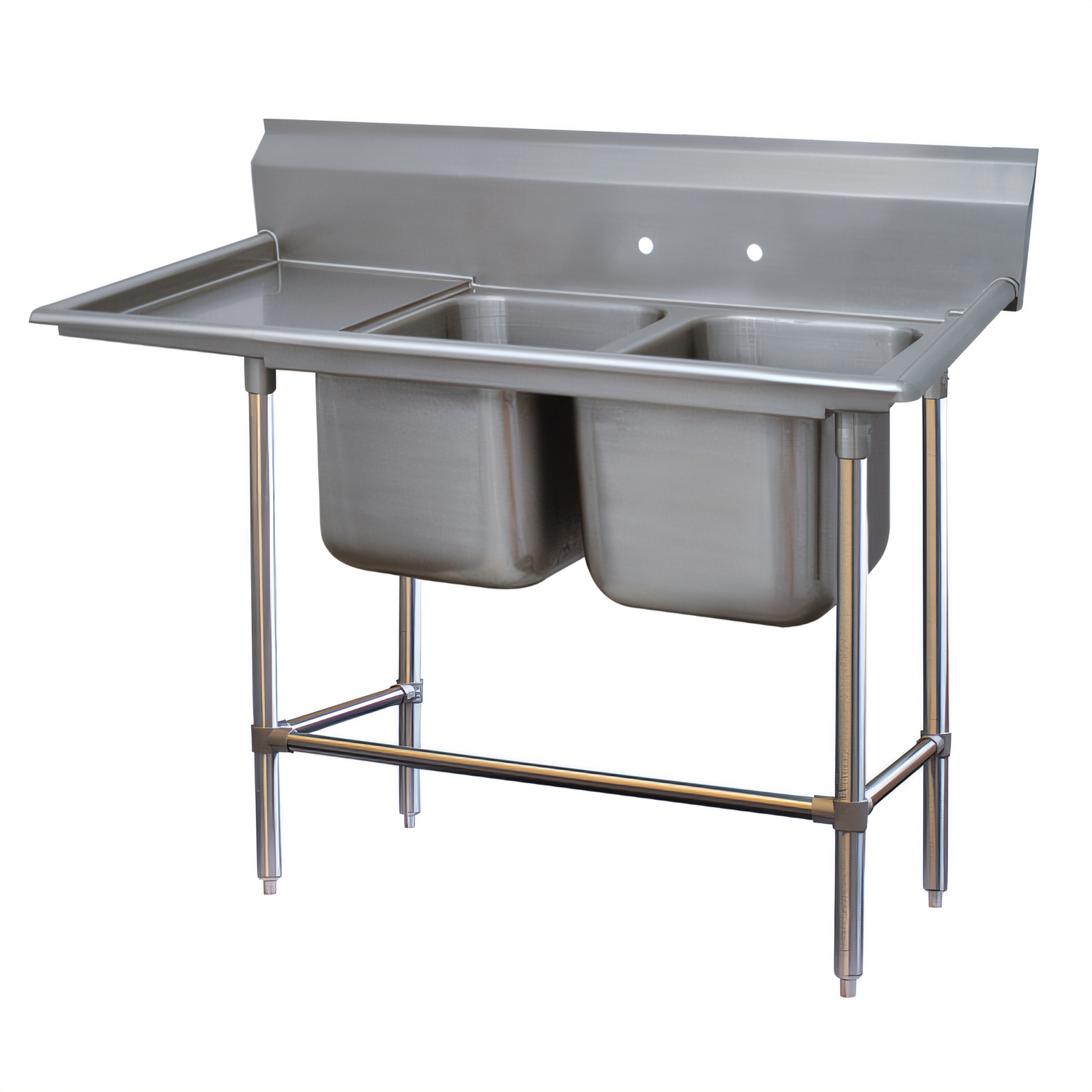

Advance Tabco Regaline 2-Compartment Sink w/ 18" Left Drainboard – 14 Ga. 304 SS

Spec-Line 94 Series • NSF Listed

Built for the hardest-working prep and pot-washing stations, the Regaline 94-22-40-18L combines rugged 14-gauge 304 stainless steel with a seamless, easy-to-clean design that keeps your kitchen running smoothly shift after shift.

Key Benefits
  • Heavy-duty 14 ga. type 304 stainless steel top, bowls & drainboard for maximum durability.
  • TIG-welded, deep-drawn 20" × 20" bowls with 3" radius corners for fast, thorough sanitation.

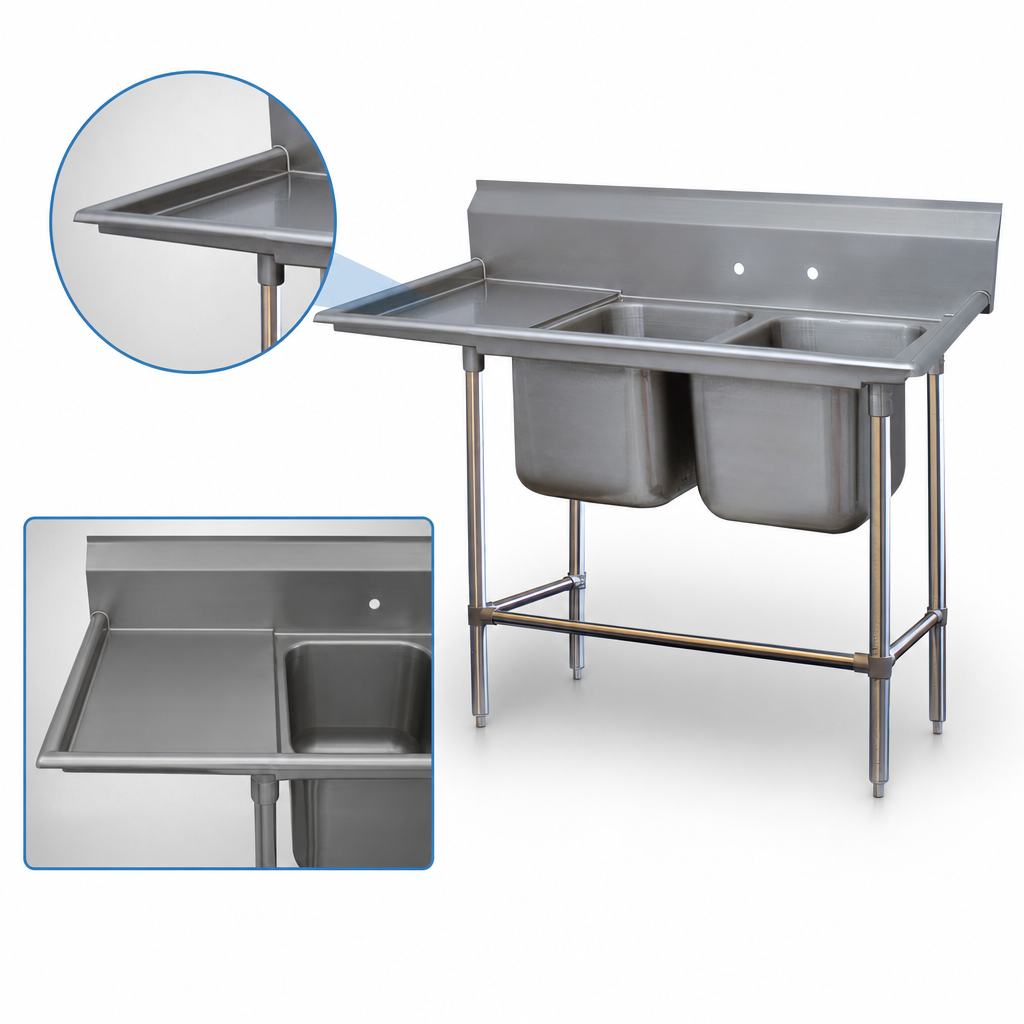

  • Integrated 18" left-hand drainboard with splash—ideal for air drying glassware and smallwares.
  • 11" high backsplash with tile edge protects walls and installs flush.
  • Pre-punched 8" on-center faucet holes (faucet not included) simplify rough-in.
  • 1 5/8" Ø stainless legs with adjustable front & side cross-bracing deliver rock-solid stability.
  • 1" adjustable stainless bullet feet level the sink on uneven floors.
  • (2) 1 1/2" IPS basket drains included; no extra purchase required.
  • NSF certified for food-contact safety and code compliance.
Technical Specifications
Manufacturer / Series Advance Tabco Regaline – Spec-Line 94
Model 94-22-40-18L (left drainboard)
Compartments 2
Bowl Size (each) 20" W × 20" F/B × 14" D
Drainboard 18" L (left side), integrally welded
Backsplash 11" H with 8" o.c. faucet holes
Overall Dimensions 67" L × 28" D
Material Thickness 14 ga. type 304 stainless steel
Legs & Bracing 1 5/8" Ø stainless legs with adjustable front & side cross rails
Feet 1" stainless adjustable bullet feet
Drains Included (2) 1 1/2" IPS basket-type
Approx. Ship Weight 118 lb
Certifications NSF

Faucet, overflow fittings, and any additional plumbing accessories are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

67.0in

Depth

28.0in

Shipping Weight

118.0lbs

Overall Length

63" - 72"

Sink Depth (rim - drain)

14"

Drainboards

with left-hand drainboard

Top Stainless Series

300 series

Splash Height

11"

Base Construction

stainless steel

Compartment (front - back)

20"

Top Gauge

14 gauge

Compartment Width (side - side)

20"

Base Type

legs with front & side crossrails

Specifications

Regaline Sink, 2-compartment, with left-hand drainboard, 20" front-to-back x 20"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 67" L/R, NSF
