Advance Tabco  |  Regaline  |  SKU: 94-21-20-24RL  |  UPC: 747545109781

Advance Tabco 94-21-20-24RL Regaline Compartment Sinks

$3,104.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

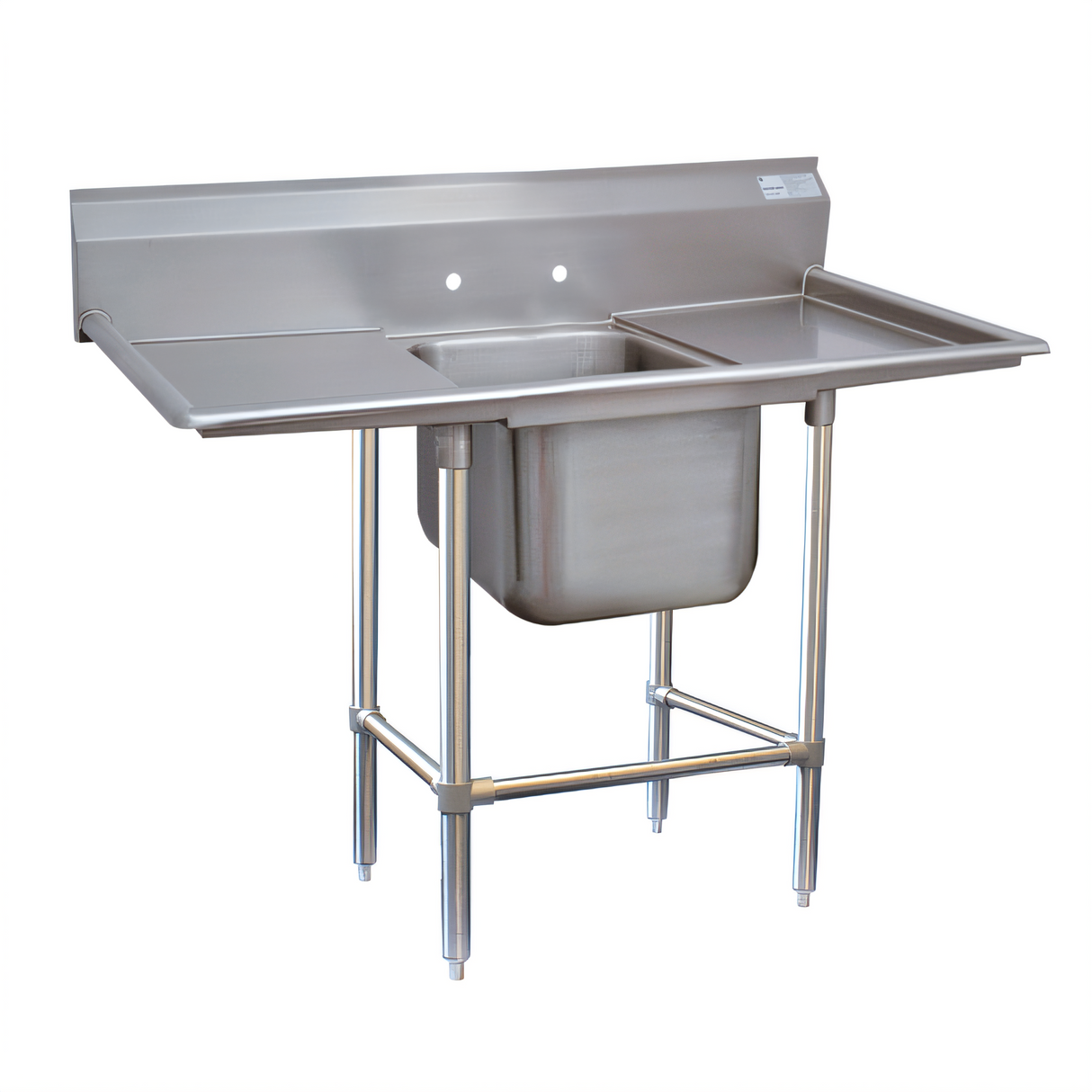

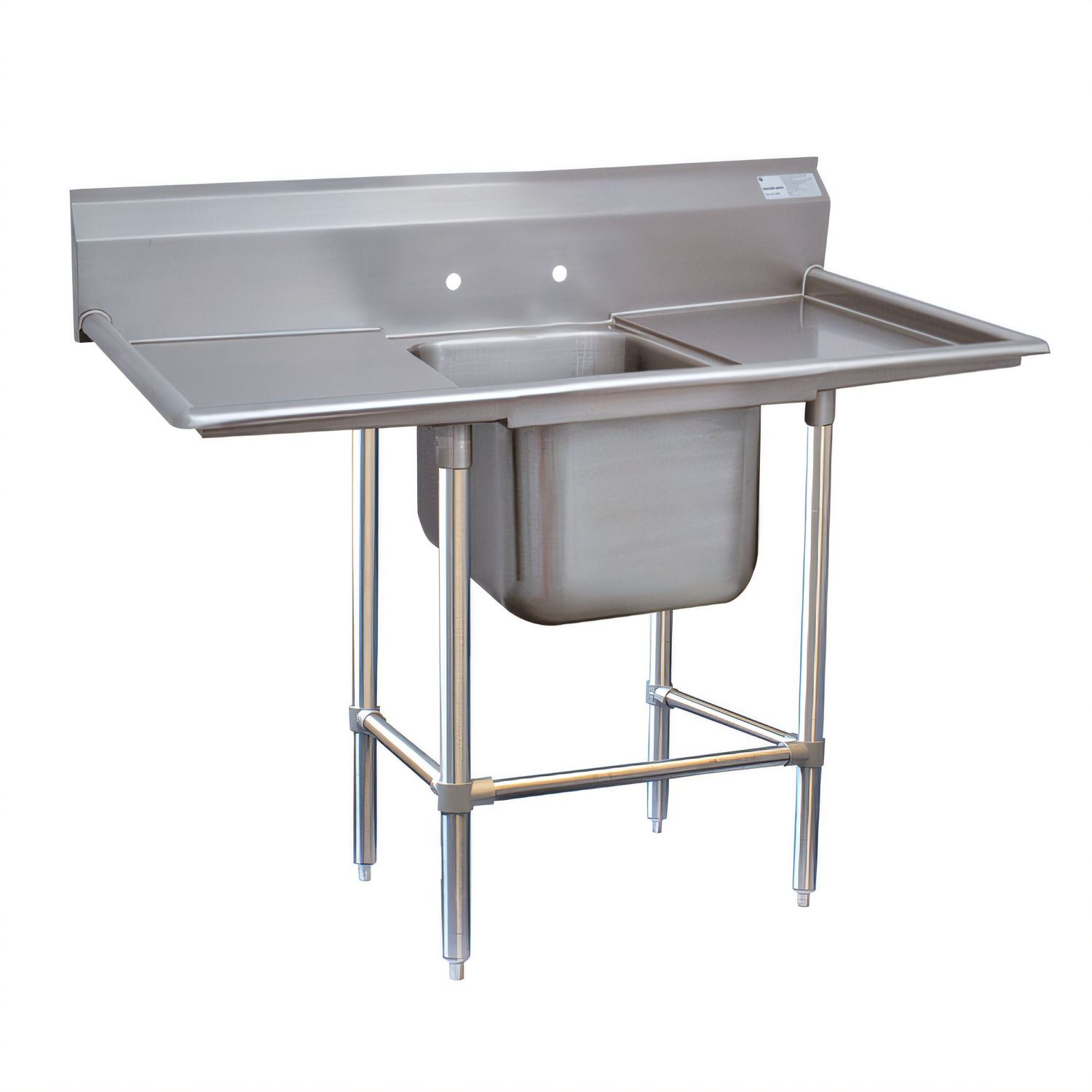

Advance Tabco Regaline 94-21-20-24RL 1-Compartment Sink – (2) 24" Drainboards

Spec-Line 94 Series • 14 ga. Type 304 Stainless Steel • NSF Listed

Engineered for relentless commercial use, the Regaline 94-21-20-24RL combines a seamless 20" × 20" sink bowl with generous 24" left- and right-hand drainboards. Heavy 14-gauge, 304 stainless steel construction, full TIG welding and adjustable cross-bracing provide the muscle you need for high-volume dish and pot washing while the 11" backsplash, rolled rims and large 3" corner radii make cleanup fast and sanitary.

Why You’ll Love It

  • Single deep-drawn bowl with integrated drainboards – zero seams, zero leaks.
  • 14 ga. type 304 stainless steel – our thickest, most durable Regaline spec.
  • 11" high tile-edge backsplash with 8" O.C. faucet holes (faucet sold separately).
  • Stainless 1 ⅝" tubular legs with adjustable front & side cross-bracing for rock-solid stability.
  • 1" stainless steel bullet feet for quick leveling on uneven floors.
  • Large 3" inside corner radii speed cleaning and improve drainage.
  • 1 ½" IPS basket-type drain assembly included – installs in seconds.
  • NSF listed – meets the most rigorous food-safety standards.

At-a-Glance Specs

Model 94-21-20-24RL
Compartments 1
Bowl Size ( W × F/B × Depth ) 20" × 20" × 14"

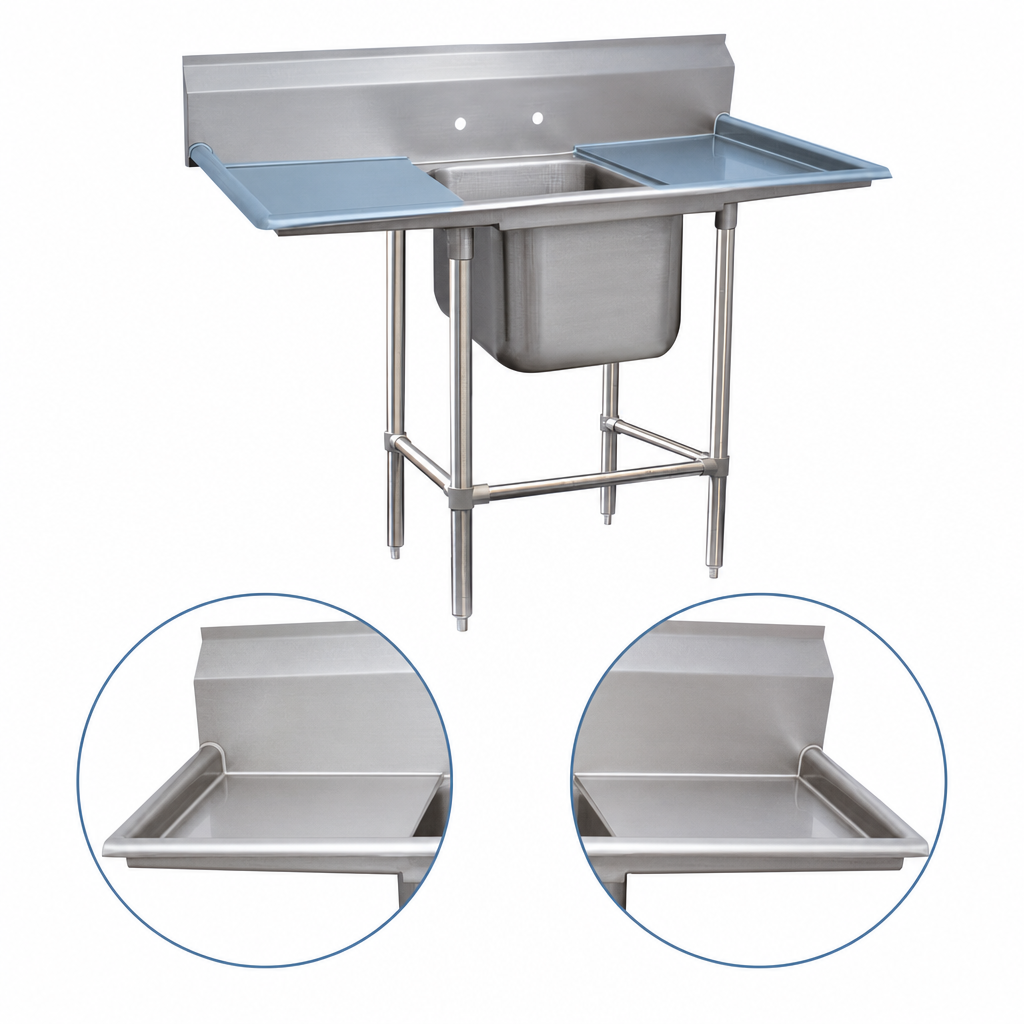

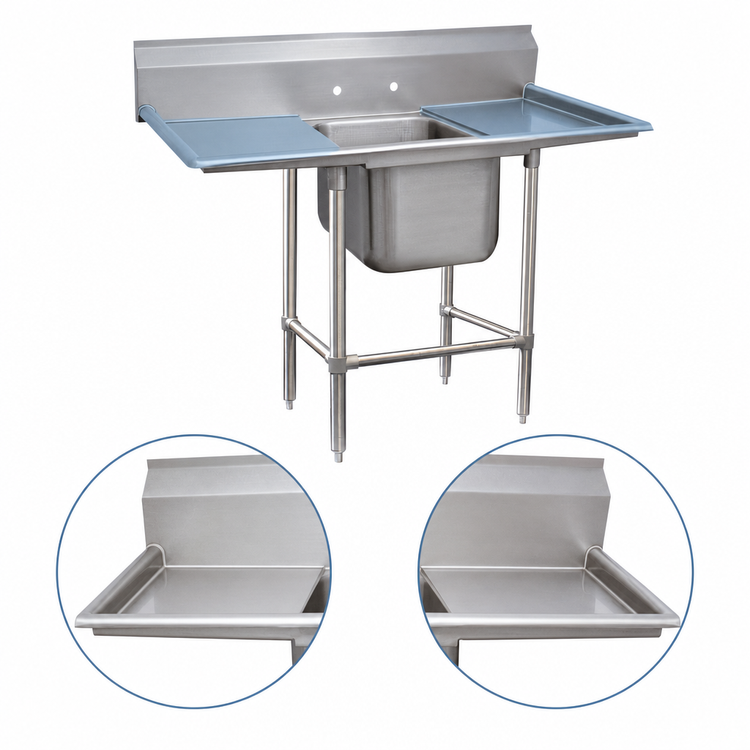

Drainboards 24" left + 24" right (integral, ribbed)
Overall Dimensions (L × F/B) 70" × 28"
Backsplash Height 11"
Material / Gauge 304 stainless steel / 14 ga.
Legs 1 ⅝" Ø stainless tube w/ front & side cross-rails
Feet 1" stainless adjustable bullet feet
Faucet Holes 8" centers (faucet not included)
Drain Connection 1 ½" IPS, basket-type
Shipping Weight / Cube ≈ 117 lb  /  34 ft³
Certifications NSF

Perfect For

  • High-volume dishrooms needing both wash and air-dry space.
  • Commissaries, ghost kitchens and food-service production lines.
  • Restaurants upgrading from lighter 16-/18-ga. sinks to heavy-duty spec.
Heads-Up: Supply lines, faucet and trap are shown for reference only and are not included. Follow local codes for plumbing rough-ins and field assembly.

Have questions or need a custom modification? Contact our Smart Fabrication™ team at smartfab@advancetabco.com.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

70.0in

Depth

28.0in

Shipping Weight

117.0lbs

Top Gauge

14 gauge

Drainboards

with left & right-hand drainboards

Compartment Width (side - side)

20"

Overall Length

63" - 72"

Compartment (front - back)

20"

Base Construction

stainless steel

Top Stainless Series

300 series

Sink Depth (rim - drain)

14"

Base Type

legs with boxed crossrails

Splash Height

11"

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 24" drainboards, 14 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 70" L/R, NSF
