Advance Tabco 94-2-36-36RL Regaline Compartment Sinks
Description

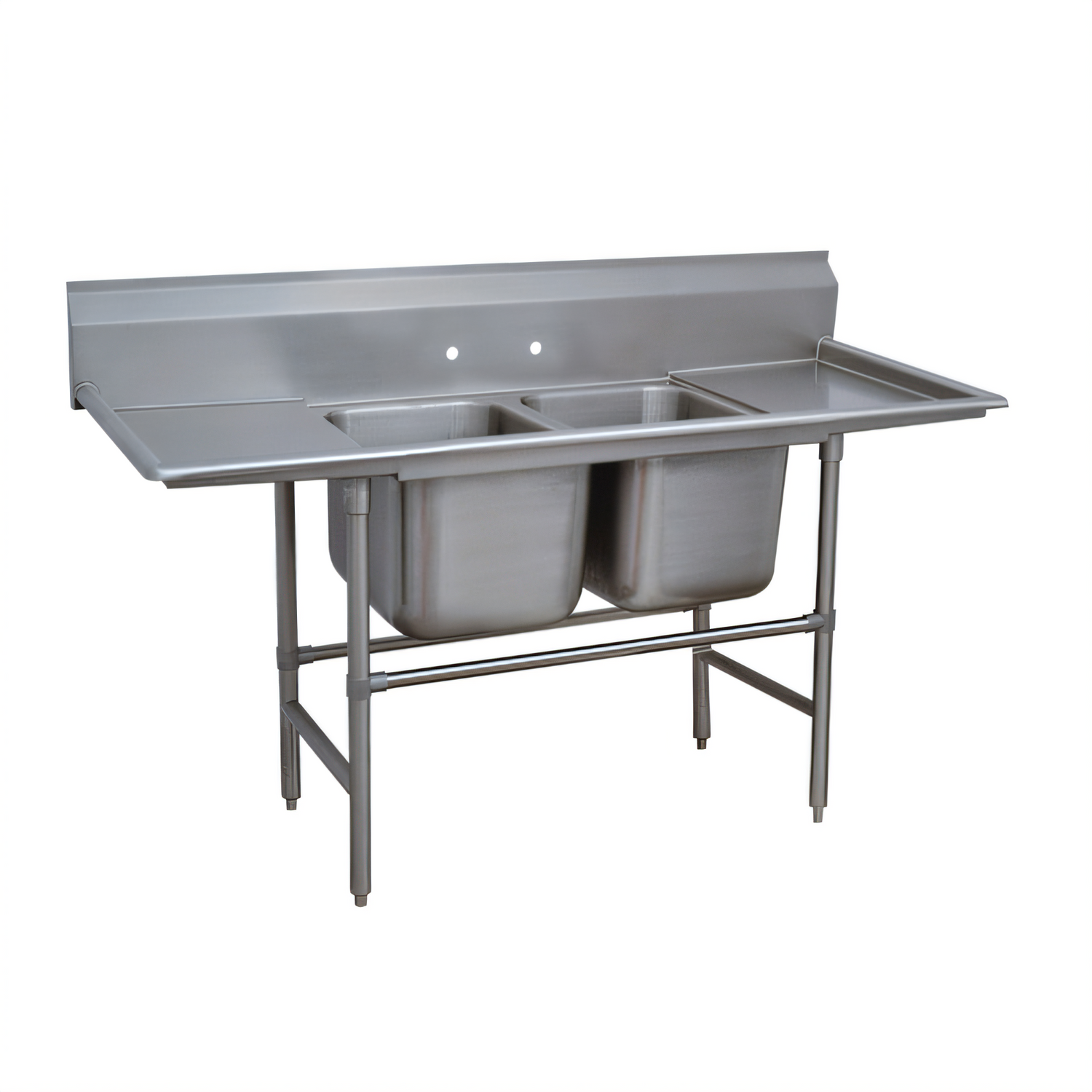

Advance Tabco “Regaline” 94-2-36-36RL Two-Compartment Sink with Double 36" Drainboards
14 ga. 304 Stainless Steel • Spec-Line Series • NSF ListedGive your ware-washing area the rugged capacity it deserves. Engineered from extra-heavy 14 gauge type 304 stainless steel, this Regaline sink combines two roomy 20" F/B × 16" W × 14" D bowls with a full-length 36" drainboard on both the left and right. From pot and pan washing to everyday prep, it stands up to the toughest commercial workloads while keeping workflow smooth and sanitary.
Why You’ll Love It
- Spec-Line 14 ga. 304 stainless steel resists corrosion, dents & warping.

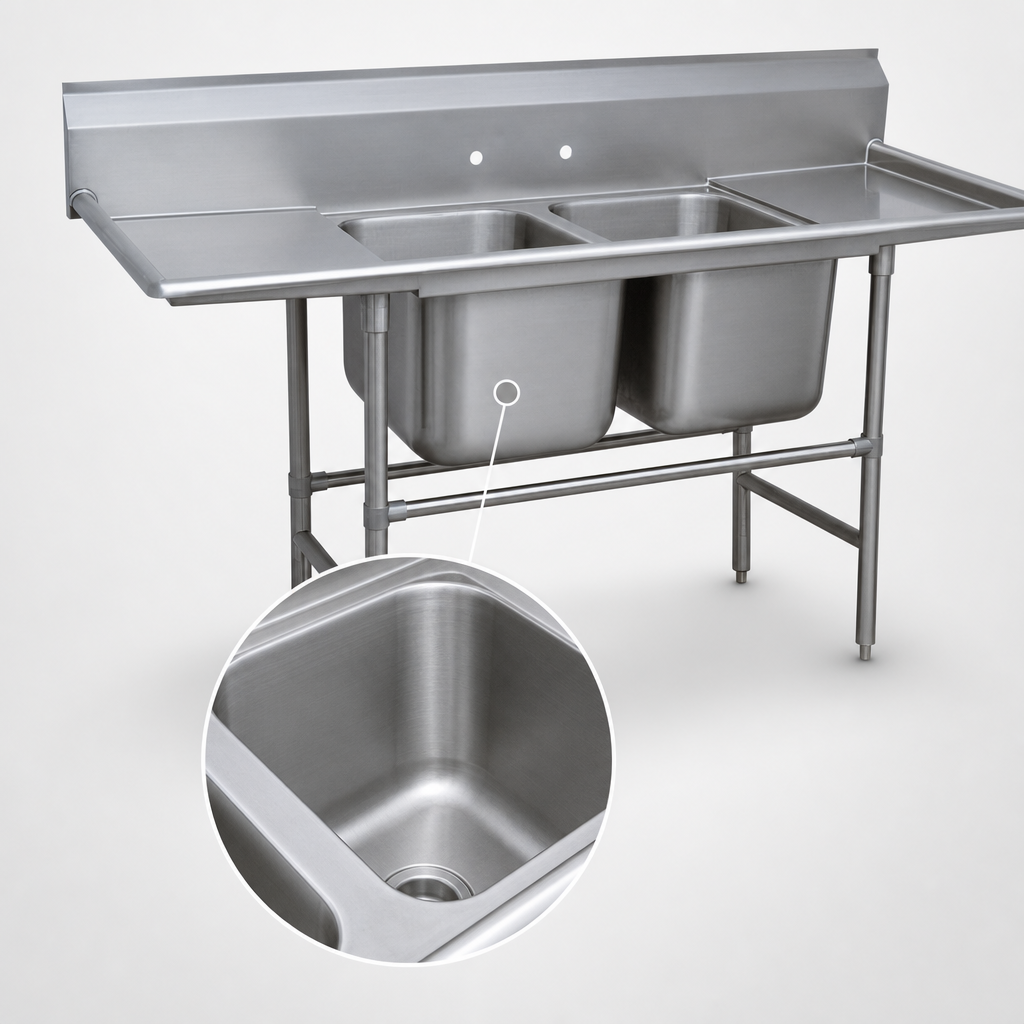

- One-piece deep-drawn bowls with generous 3" radius corners speed clean-up.
- Integral 11" high backsplash contains splashes and meets health code requirements.
- Massive 36" drainboards (left & right) feature positive drain pitch for fast drying.
- Open frame base with 1 5⁄8" Ø tubular legs, stainless gussets & side crossrails for rock-solid stability.
- Extra support legs under each 36" drainboard prevent sagging under heavy racks.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- All TIG-welded construction with blended satin finish for a seamless, easy-to-sanitize surface.
- (2) 1 ½" IPS stainless steel basket drains included; faucet holes punched on 8" centers.
- NSF certified for open food-service applications.
Technical Specifications
| Model | 94-2-36-36RL (Regaline) |
|---|---|
| Compartments | 2 |
| Bowl Dimensions (each) | 20" front-to-back × 16" left-to-right × 14" deep |
| Drainboards | 36" left & 36" right (integral with bowls & backsplash) |
| Overall Dimensions | 27" front-to-back × 109" left-to-right (34" working height + 11" backsplash) |
| Material / Gauge | 14 ga. type 304 stainless steel (all exposed surfaces) |
| Legs & Feet | 1 5⁄8" Ø stainless steel legs with side crossrails & 1" adjustable bullet feet |
| Backsplash | 11" H with tile-edge top & 2" return |
| Drain Opening | 1 ½" IPS, center of each bowl (basket drains furnished) |
| Faucet Punching | (1) set 8" O.C. mounting holes (faucet not included) |
| Shipping Weight | ≈ 212 lb (crated) |
| Certifications | NSF |
Faucet, splash-mount accessories, and plumbing fittings are sold separately. For custom modifications, contact Advance Tabco Smart Fabrication™.
