Advance Tabco  |  Regaline  |  SKU: 94-1-24-18R  |  UPC: 747545109514

Advance Tabco 94-1-24-18R Regaline Compartment Sinks

$2,636.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

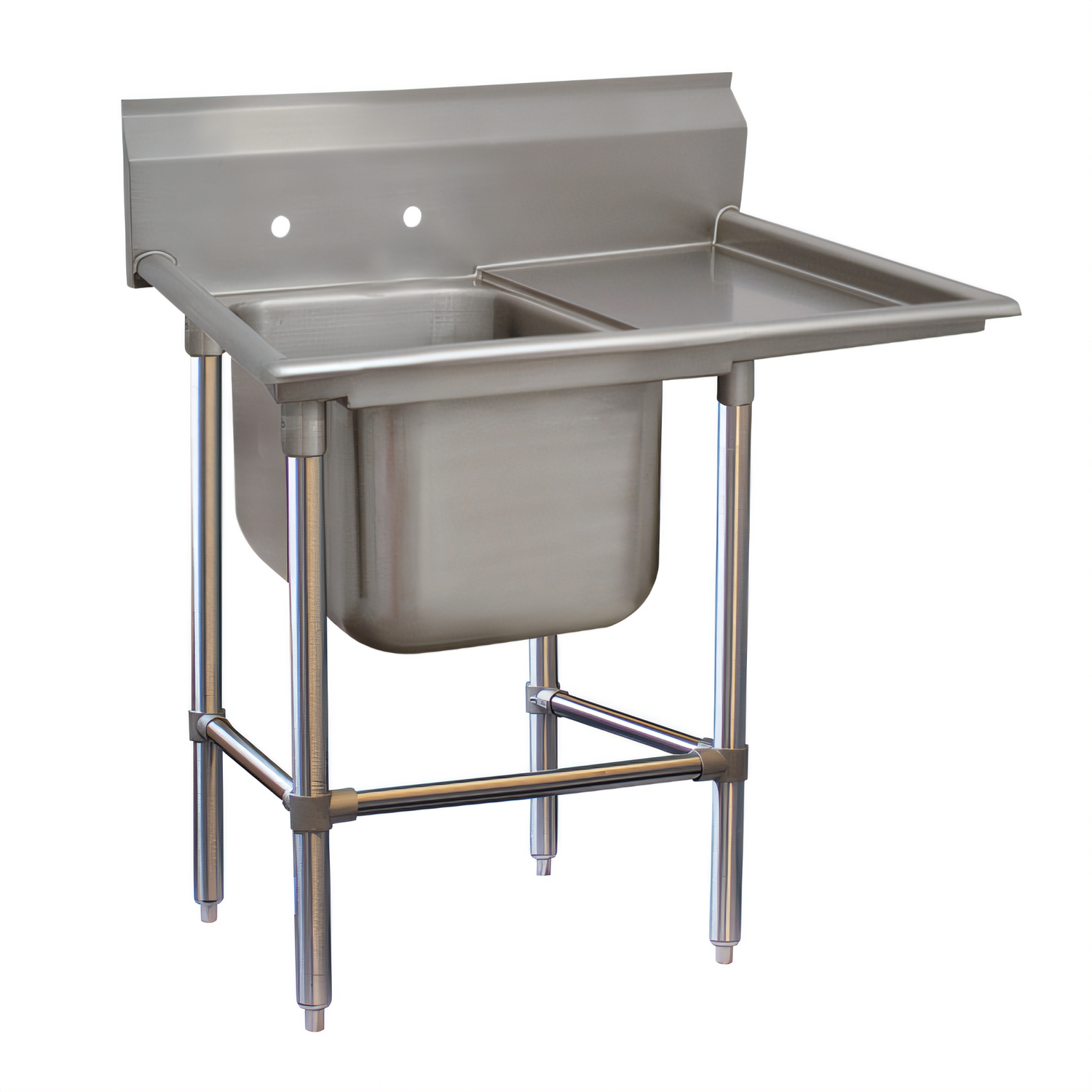

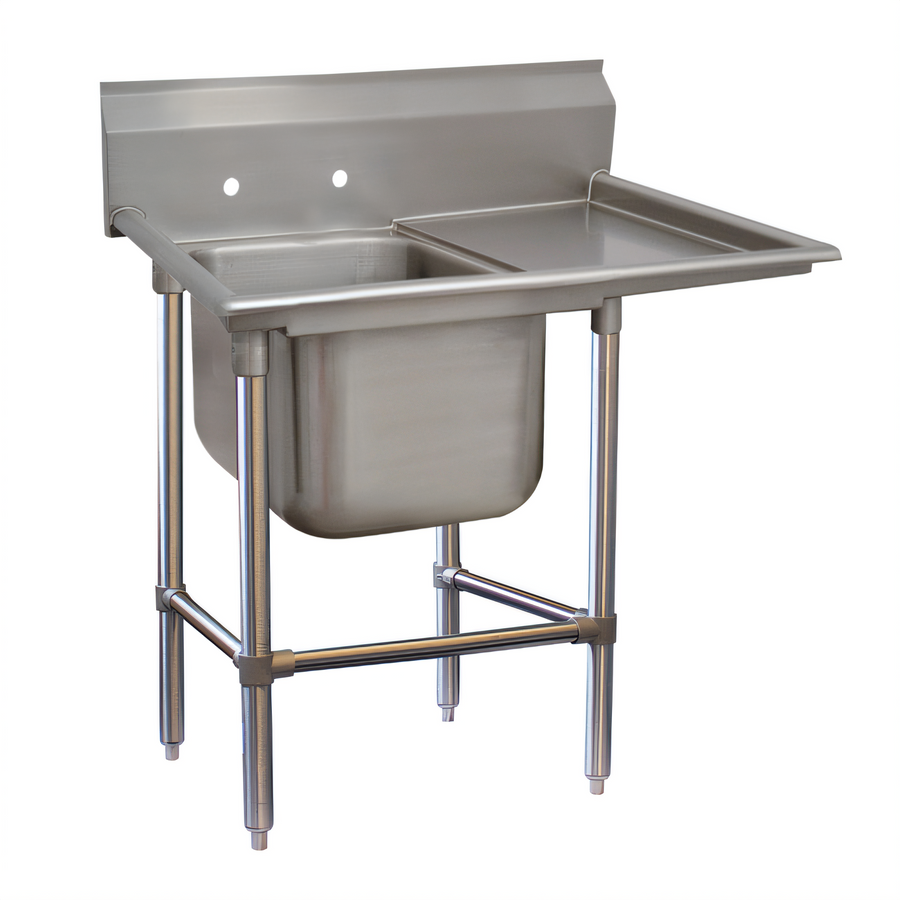

Advance Tabco Regaline 1-Compartment Sink with 18" Right Drainboard – 14 Ga 304 SS

Spec-Line 94 Series | Model 94-1-24-18R

Engineered for high-volume food-service operations, the Regaline 94-Series sink pairs extra-heavy 14-gauge type 304 stainless steel with a space-saving one-compartment layout and an integrated right-hand drainboard. All TIG-welded seams are ground and polished to a satin finish, delivering the strength you need and the clean look you expect from Advance Tabco.

Key Features

  • Deep-drawn bowl: 16" W × 20" F/B × 14" D with large 3" radius corners for easy wipe-down.
  • Integrated 18" right-hand drainboard slopes toward the bowl for rapid draining and faster turn-arounds.
  • 11" high backsplash with tile-edge top speeds installation and keeps moisture off surrounding walls.
  • All TIG-welded stainless construction; welds blended to match adjacent surfaces for a uniform satin finish.
  • 1⅝" Ø tubular stainless legs with stainless gussets plus adjustable side and front cross rails for rock-solid stability.
  • 1" adjustable stainless bullet feet—level the unit in seconds on uneven floors.
  • Pre-punched 8"-on-center faucet holes; 1½" IPS basket drain included.
  • NSF listed for food-contact safety.

At-a-Glance Specifications

Overall size (L × F/B) 40" × 28"
Compartments 1
Bowl size (W × F/B × D) 16" × 20" × 14"
Drainboard 18"  •  Right-hand
Backsplash height 11"
Steel gauge / type 14 ga  •  Type 304 stainless
Legs / braces 1⅝" Ø S/S legs with adjustable side & front cross-bracing
Feet 1" adjustable S/S bullet feet
Faucet holes 8" centers (faucet sold separately)
Drain connection 1½" IPS basket drain (included)
Certifications NSF
Installation note: Hot & cold supplies require ½" IPS connections. Always verify local plumbing codes before rough-in and final hookup.

Need faucets, scrap blocks or sink covers? Explore our full line of Regaline accessories to build the perfect ware-washing station.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

40.0in

Depth

28.0in

Shipping Weight

98.0lbs

Top Gauge

14 gauge

Compartment (front - back)

20"

Compartment Width (side - side)

16"

Drainboards

with right-hand drainboard

Overall Length

40" - 53"

Base Construction

stainless steel

Top Stainless Series

300 series

Sink Depth (rim - drain)

14"

Base Type

legs with boxed crossrails

Splash Height

11"

Specifications

Regaline Sink, 1-compartment, with right-hand drainboard, 20" front-to-back x 16"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 40" L/R, NSF
