Advance Tabco  |  Regaline  |  SKU: 94-1-24-18L  |  UPC: 747545109507

Advance Tabco 94-1-24-18L Regaline Compartment Sinks

$2,636.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

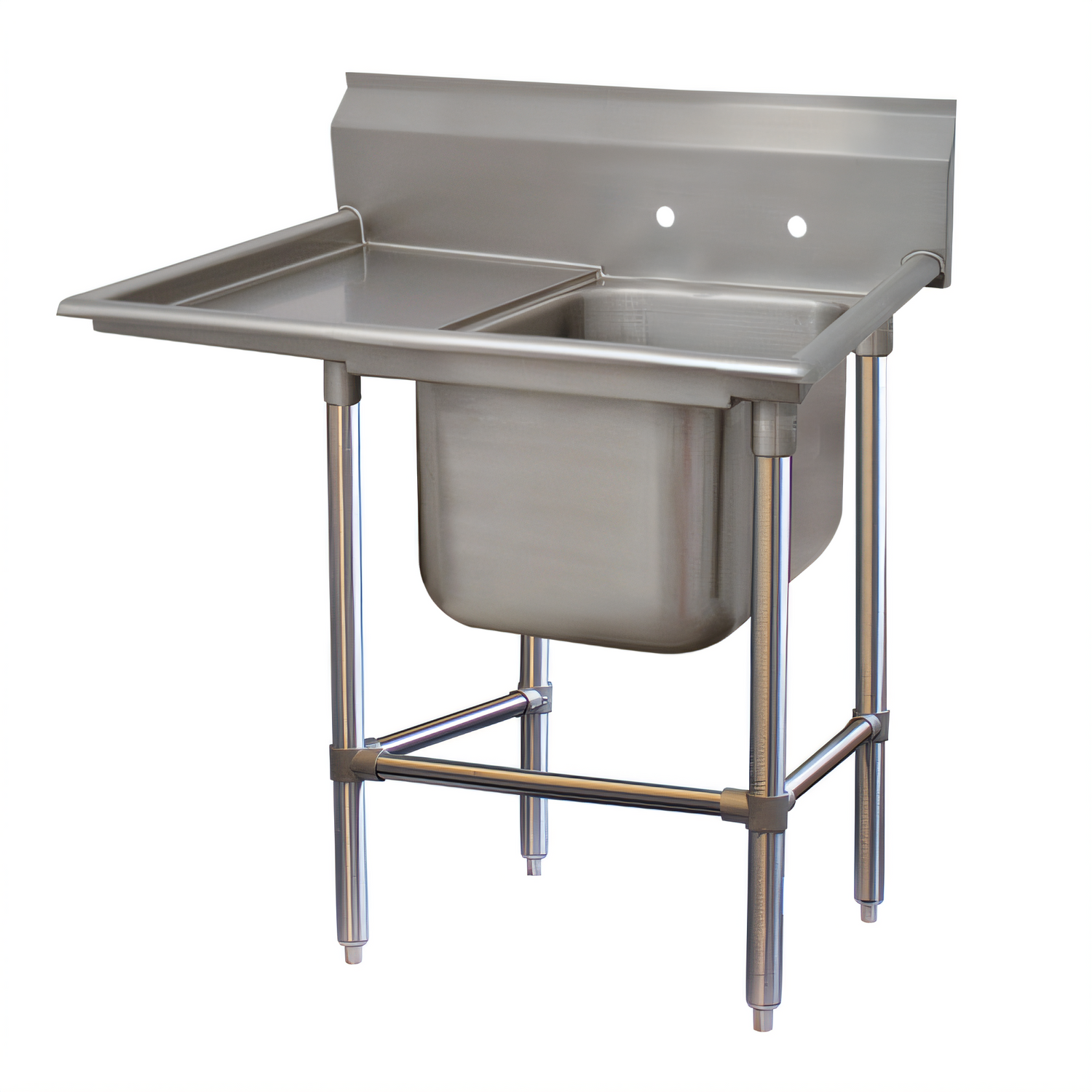

Advance Tabco Regaline 1-Compartment Sink with 18" Left Drainboard

94 Series • Heavy-Duty 14 ga. Type 304 Stainless Steel

Built for high-volume commercial kitchens, the Regaline 94-Series sink combines rugged 14-gauge stainless construction with the convenience of an integral drainboard. Seam-less TIG welds, generous 3" radius corners and an 11" backsplash deliver the sanitation, durability and easy-clean performance food-service professionals demand.

Key Features
  • One-piece deep-drawn bowl measures 20" front-to-back x 16" left-to-right and 14" deep.
  • 18" left-hand drainboard with splash keeps dishes organized and work surfaces dry.
  • All TIG-welded seams blended to a smooth, sanitary satin finish.
  • 11" high backsplash with tile edge simplifies mounting and protects walls.
  • 1 ⅝" Ø tubular stainless steel legs with adjustable front and side cross rails for rock-solid stability.
  • 1" stainless steel bullet feet provide up to 1" of height adjustment for a perfectly level install.
  • Pre-punched 8" on-center faucet holes (faucet sold separately).
  • Centered 1 ½" IPS stainless steel basket drain included.
  • Large 3" inside corner radius speeds cleanup and meets health-code requirements.
  • NSF certified for safe, sanitary food-service use.
Specifications
Brand / Series Advance Tabco Regaline 94
Compartments 1
Drainboard Left-hand, 18" length
Bowl Size (F/B × L/R × D) 20" × 16" × 14"
Overall Dimensions (F/B × L/R) 28" × 40"
Backsplash Height 11"
Material / Gauge 14 ga. Type 304 stainless steel
Legs & Feet 1 ⅝" Ø S/S legs, adjustable side & front cross rails, 1" bullet feet
Drain Opening 1 ½" IPS basket drain (included)
Faucet Holes (2) holes on 8" centers
Certifications NSF

Looking for a different bowl size, drainboard orientation or special modification? Our Smart Fabrication™ team can help—contact us for a quote.

Note: Faucet, supply lines and waste-line plumbing are not included.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

40.0in

Depth

28.0in

Shipping Weight

98.0lbs

Top Gauge

14 gauge

Drainboards

with right-hand drainboard

Compartment Width (side - side)

16"

Compartment (front - back)

20"

Base Construction

stainless steel

Overall Length

40" - 53"

Sink Depth (rim - drain)

14"

Top Stainless Series

300 series

Base Type

legs with boxed crossrails

Splash Height

11"

Specifications

Regaline Sink, 1-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 40" L/R, NSF
