Description

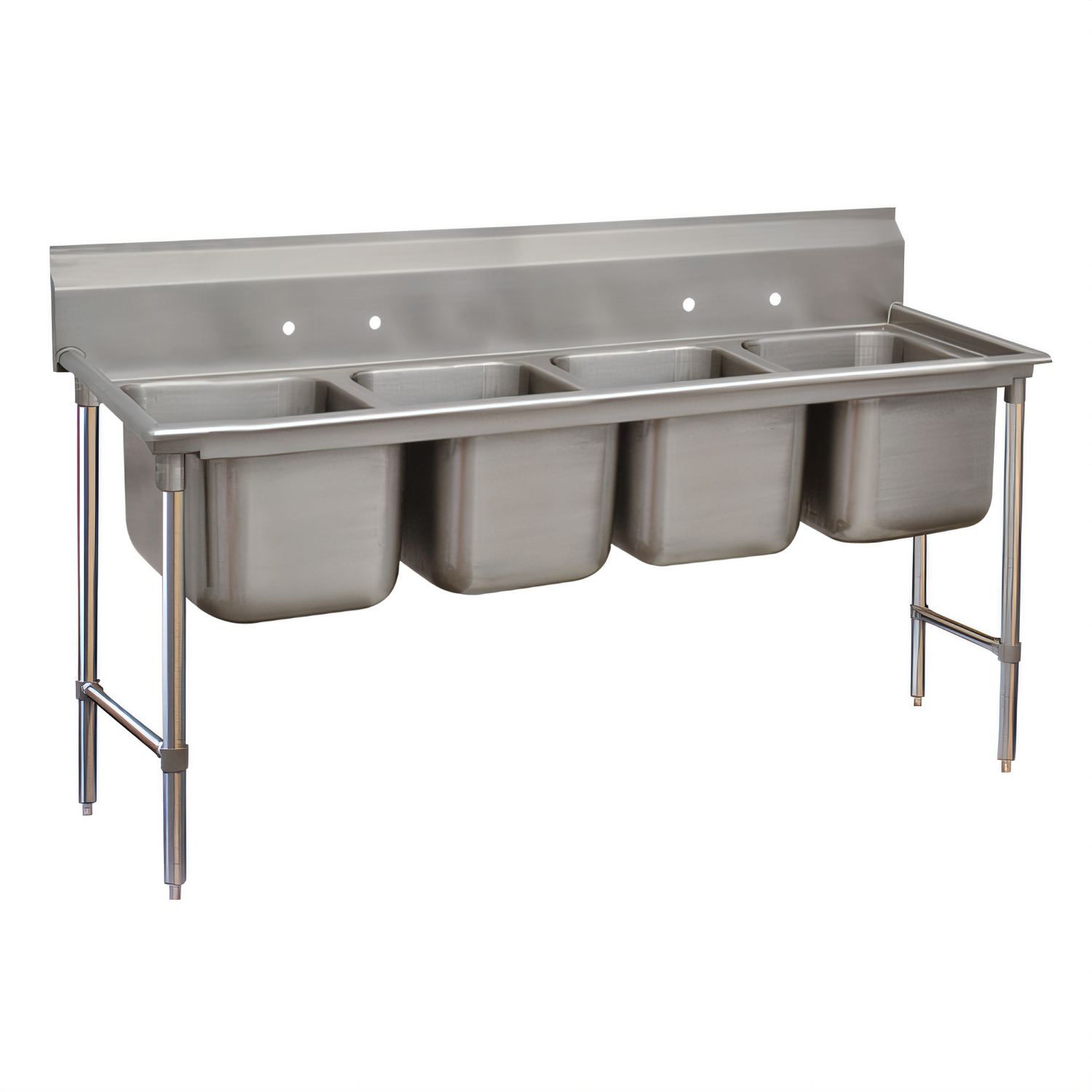

Advance Tabco “Regaline” 4-Compartment Sink – 93-84-80

99" L x 36" D • 20" x 28" Bowls • 16-Gauge 304 Stainless Steel

Built for the busiest prep areas, the Advance Tabco Regaline 93-Series sink combines heavy-duty construction, easy-clean design and NSF sanitation compliance—making it the long-term solution for ware-washing, produce rinsing or thawing in high-volume kitchens.

Why you’ll love it
  • Four extra-deep bowls – 12" working depth holds large stock pots and sheet pans without splashing.
  • Premium 16-gauge 304 stainless steel – resists corrosion from harsh ware-washing chemicals.
  • Deep-drawn, seamless bowls with 3" radius corners for fast, sanitary clean-ups.
  • 8" integral backsplash with tile-edge simplifies wall installation and keeps water off surrounding surfaces.
  • Open frame base with adjustable side cross-bracing delivers rock-solid stability while leaving the floor clear for storage or easy mop-outs.
  • 1 ⅝" O.D. tubular legs with 1" adjustable stainless bullet feet level the sink on uneven floors.
  • Center drains & basket strainers included – each bowl is supplied with a 1 ½" IPS stainless drain assembly.
  • NSF listed & TIG-welded construction meets the strictest food-service health codes.
Technical specifications
Model 93-84-80 (Regaline 93 Series)
Compartments 4
Interior bowl size (W x F/B x Depth) 20" x 28" x 12"
Splash height 8"
Overall dimensions (L x D) 99" x 36"
Working height to rolled rim 34" (approx. 42" to top of backsplash)
Material / gauge 304 stainless steel / 16 ga.
Legs & feet 1 ⅝" O.D. stainless legs, adjustable bullet feet
Drain connections (4) 1 ½" IPS basket drains (included)
Faucet holes (2) sets on 8" centers – requires two deck-mount faucets
Shipping weight ≈ 310 lb
Certifications NSF
Faucets are not included. The sink is pre-drilled for two 8"-center deck faucets; order compatible fixtures separately to complete your installation.

Advance Tabco continually improves product design; published dimensions and weights are typical and subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

99.0in

Depth

36.0in

Shipping Weight

310.0lbs

Sink Depth (rim - drain)

12"

Compartment (front - back)

28"

Splash Height

8"

Base Type

legs with side crossrails

Compartment Width (side - side)

20"

Top Stainless Series

300 series

Overall Length

98" - 113"

Top Gauge

16 gauge

Drainboards

without drainboards

Base Construction

stainless steel

Specifications

Regaline Sink, 4-compartment, 28" front-to-back x 20" wide sink compartments, 12" deep, with 8" high splash, stainless steel open frame base, side crossrails, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 36" F/B x 99" L/R, NSF (requires 2 faucets)
