Advance Tabco 93-84-80-36RL Regaline Compartment Sinks
Advance Tabco 93-84-80-36RL Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

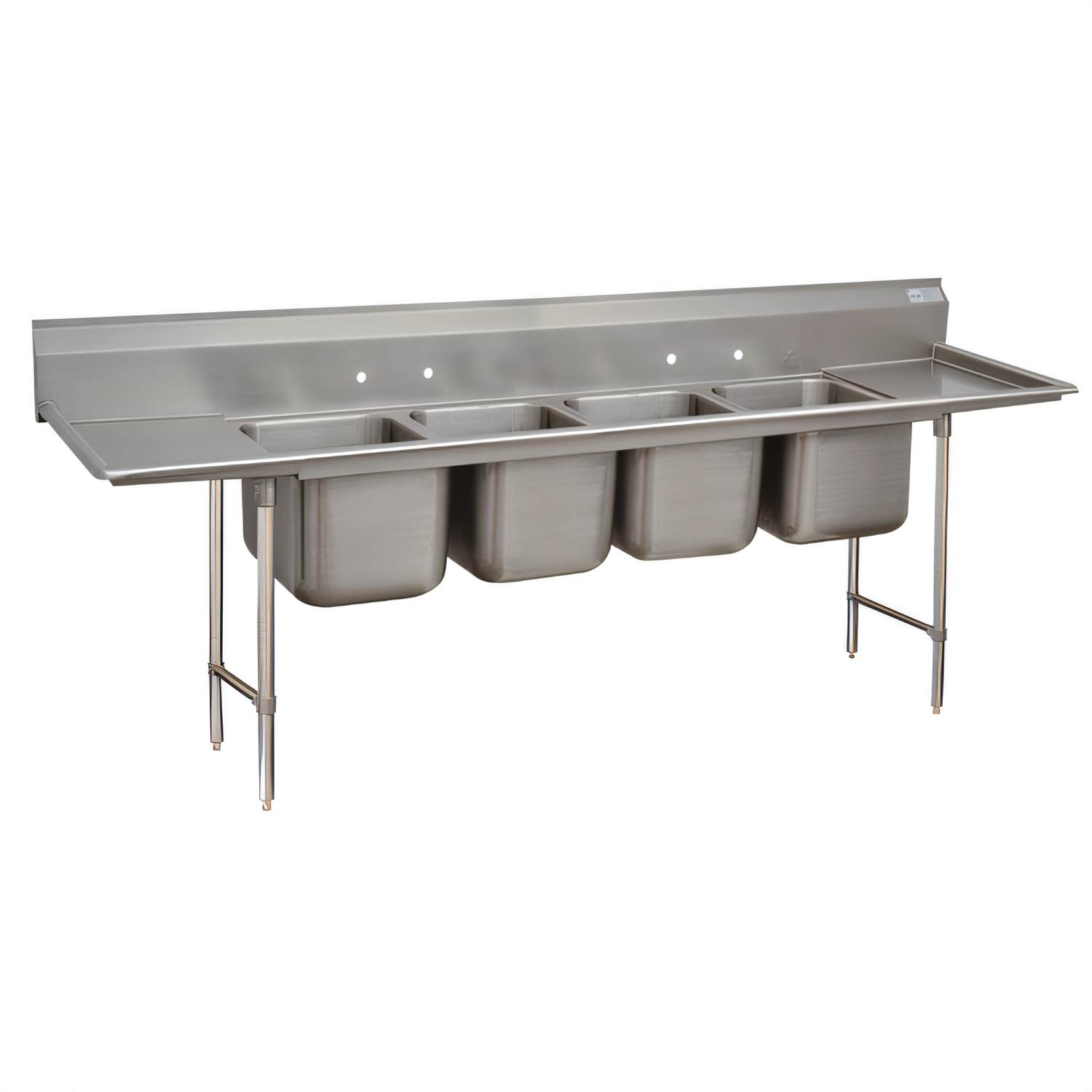

Advance Tabco Regaline 4-Compartment Sink w/ 36" L&R Drainboards
Model 93-84-80-36RL • 16 ga 304 Stainless SteelBuilt for high-volume warewashing and prep areas, the Regaline series pairs seamless deep-drawn bowls with rugged open-frame construction—and it’s all NSF-listed for worry-free code compliance.
Key Features
- (4) spacious 20" W × 28" F/B × 12" D bowls—TIG welded and blended to a satin finish.
- Dual 36" drainboards (left & right) with integral splash and raised marine edges.
- 8" high backsplash with 1" tile edge for quick, watertight installation.
- 16-gauge type 304 stainless top & bowls resist corrosion and harsh cleaners.
- Stainless 1 5/8" Ø tubular legs, side crossrails and open frame base for maximum rigidity.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
- 1-1/2" IPS basket drains included; faucet holes punched on 8" centers.
- “YES! It’s Seamless!” design eliminates crevices where bacteria can hide.
Technical Specifications
Overall dimensions | 162" L × 32" F/B × 43 1/2" H (to top of backsplash) |
---|---|
Compartments | (4) 20" W × 28" F/B × 12" D |
Drainboards | (2) 36" L (left & right) — extra support legs included |
Backsplash | 8" H with 1" return |
Gauge / material | 16 ga type 304 stainless steel |
Faucet holes | (2) sets on 8" centers, 1-1/8" Ø (faucets sold separately) |
Waste drains | 1-1/2" IPS basket strainers (included) |
Legs & feet | 1 5/8" Ø stainless legs, adjustable side cross-bracing, 1" bullet feet |
Approx. weight | 411 lb |
Certifications | NSF |
Requires two wall-mount or deck-mount faucets. Compatible Advance Tabco faucets, sink covers and cutting boards sold separately.
