Advance Tabco 93-84-80-24RL Regaline Compartment Sinks
Description

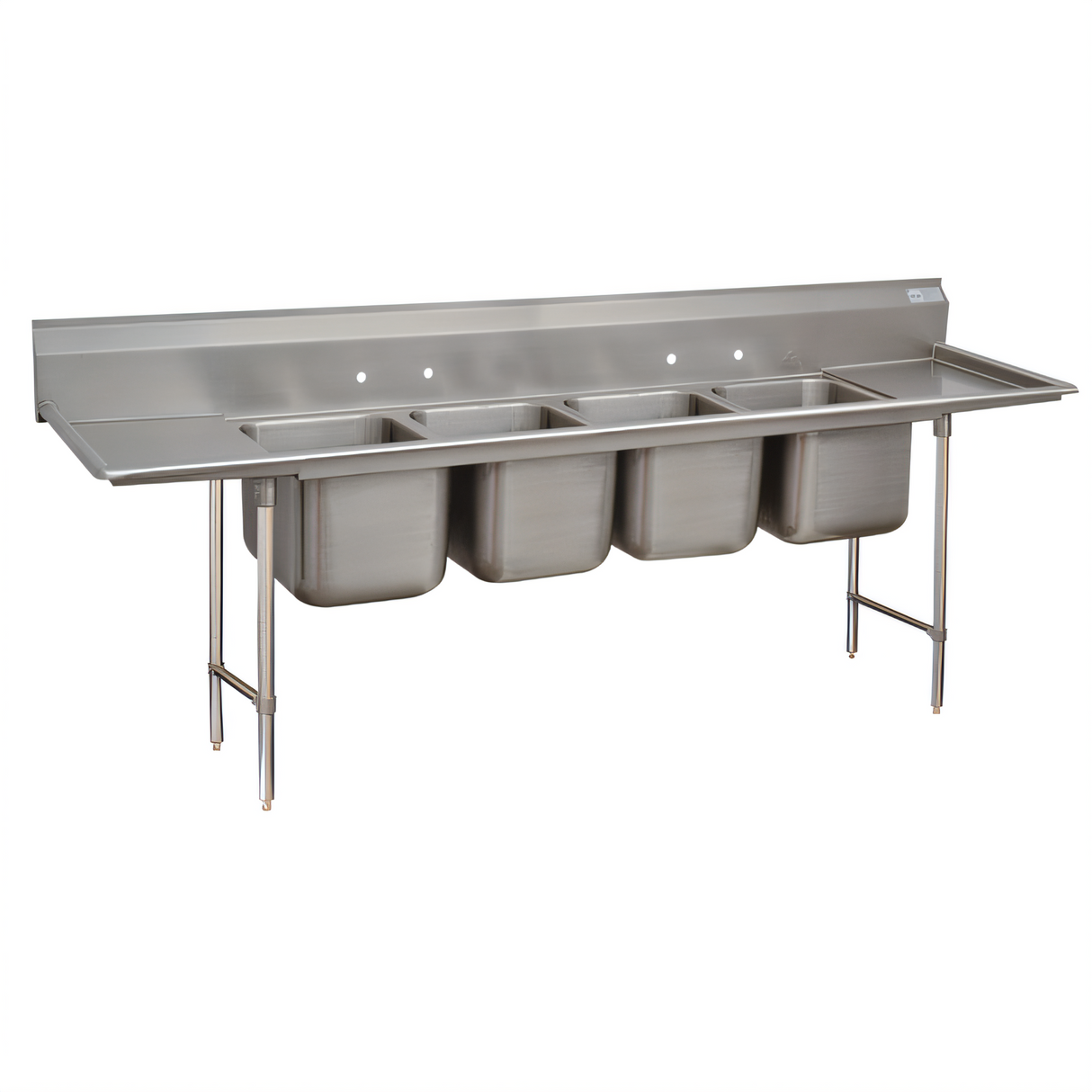

Regaline Series 4-Compartment Sink with Dual 24" Drainboards
Advance Tabco • Model 93-84-80-24RL • NSF ListedEngineered for high-volume ware-washing, this Regaline 4-compartment sink features extra-deep 20" × 28" bowls and two spacious 24" drainboards — giving your team a dedicated zone for every step of the wash-rinse-sanitize workflow. Heavy-duty 16 gauge type 304 stainless steel, TIG-welded seams and a rigid open-frame base guarantee long-term durability in the busiest commercial kitchens.
Top Features
- Seamless deep-drawn bowls with generous 3" corner radius for effortless clean-up.
- Four 20" (W) × 28" (F/B) × 12" (D) compartments hold full-size hotel pans flat.
- 8" high backsplash with tile edge keeps walls dry and simplifies installation.
- Left & right 24" drainboards slope toward the sink for fast water runoff.
- Stainless open-frame base with 1 ⅝" Ø legs and adjustable side crossrails.
- 1" stainless bullet feet let you level the sink on uneven floors.
- All welds blended to a uniform satin finish for a professional look.
- Includes four 1 ½" IPS stainless basket drains.
At-a-Glance Specs
| Overall size (F/B × L/R) | 32" × 138" |
|---|---|
| Compartments | 4 (20" W × 28" F/B × 12" D each) |
| Drainboards | 24" left & 24" right, integrally welded |
| Backsplash | 8" H with 2" return |
| Material / Gauge | 16 ga type 304 stainless steel |
| Legs & bracing | 1 ⅝" Ø stainless legs with side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Faucet holes | Two sets on 8" centers (faucets sold separately) |
| Approx. shipping weight | 374 lb |
Built to Last
- SeaMless™ Deep Drawn Bowls—no welded corners to trap food soil.
- TIG-Welded Frame—welds are ground smooth then polished to match adjacent surfaces.
- Type 304 Stainless Steel—superior corrosion resistance for chemicals and high-salt environments.
- NSF Certified—meets NSF/ANSI 2 for food-contact sanitation.
Plumbing / Installation Info
- ½" IPS hot & cold supply lines (not included).
- Basket drains are 1 ½" IPS and ship installed in bowl centers.
- Requires two deck-mount faucets with 8" centers (sold separately).
All dimensions are nominal; Advance Tabco reserves the right to modify specifications without prior notice.
