Advance Tabco 93-84-80-18R Regaline Compartment Sinks
$7,187.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 93-84-80-18R Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 93-84-80-18R Regaline Compartment Sinks
$7,187.00
Unit price
/
Unavailable
Description

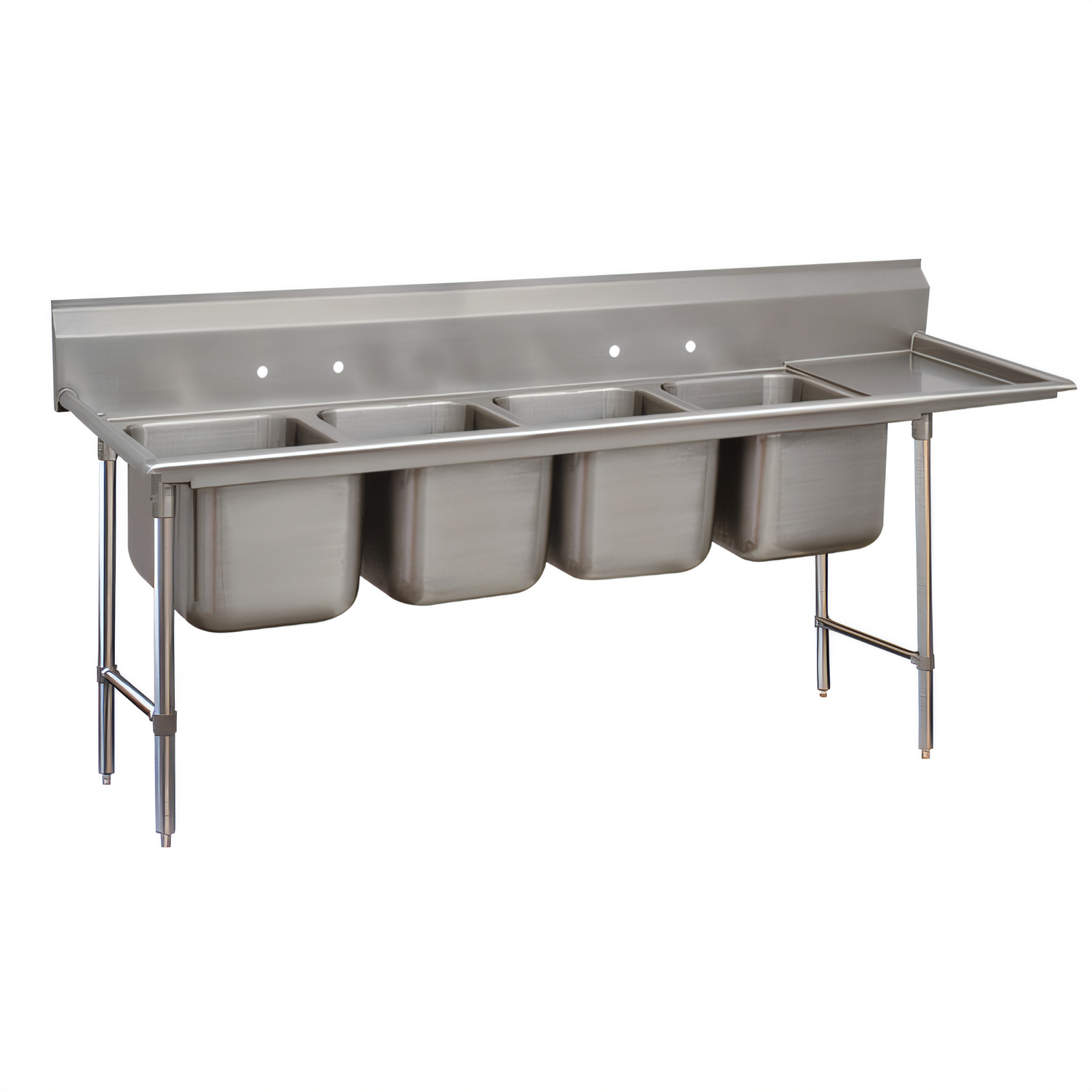

Advance Tabco Regaline 4-Compartment Sink w/ 18" Right Drainboard
93 Series • Model 93-84-80-18R • NSF ListedEngineered for high-volume warewashing, this Regaline sink combines four oversized bowls with a space-saving right-hand drainboard and the rugged durability that has made Advance Tabco the go-to name in food-service fabrication.
Key Benefits
- Four deep-drawn 20" W x 28" F/B x 12" D bowls accommodate sheet pans, stock pots, and hotel pans with ease.
- 16 gauge, type 304 stainless steel resists corrosion and dents—ideal for heavy everyday use.
- 18" embossed drainboard (right side) lets washed items air-dry while keeping countertops clear.
- Integrated 8" backsplash with tile edge protects walls and simplifies sealing.
- Open tubular base with adjustable side cross-rails maximizes under-sink storage and ensures rock-solid stability.
- 1 5/8" OD stainless legs with 1" adjustable bullet feet level the unit on uneven floors.
- All TIG-welded seams are ground smooth to a sanitary satin finish—no crevices to trap food soil.
- NSF certified for food-contact safety and easy health-department approval.
Detailed Specifications
| Series / Model | Regaline 93 Series – 93-84-80-18R (Right Drainboard) |
|---|---|
| Compartments | 4 |
| Bowl size (W × F/B × D) | 20" × 28" × 12" |
| Backsplash height | 8" |
| Drainboard | 18" Right-hand, ribbed & pitched for positive drainage |
| Overall dimensions | 112" L × 32" F/B × 45" H (to top of backsplash) |
| Material / Gauge | 16 ga type 304 stainless steel, satin finish |
| Base style | Open frame, stainless legs with side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Faucet holes | Two sets on 8" centers (faucets required, not included) |
| Drains | Four 1 ½" IPS basket drains (centered in each bowl) |
| Approx. shipping weight | 329 lb |
| Certifications | NSF |
All dimensions are nominal and subject to a ± ½" manufacturing tolerance.
Plumbing & Installation
- Water supply: ½" IPS hot & cold lines.
- Waste: 1 ½" IPS connections (basket drains included).
- Deck height: 34" working surface; 37" to rolled rim.
- Front-to-rear leg clearance: 24 ⅛".
Important: Two deck-mount faucets (8" centers) are required and sold separately.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
42.0in
Width
112.0in
Depth
32.0in
Shipping Weight
329.0lbs
Sink Depth (rim - drain)
12"
Base Type
legs with side crossrails
Drainboards
with right-hand drainboard
Top Stainless Series
300 series
Splash Height
8"
Overall Length
98" - 113"
Compartment Width (side - side)
20"
Compartment (front - back)
28"
Base Construction
stainless steel
Top Gauge
16 gauge
Specifications
Regaline Sink, 4-compartment, with right-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 32" F/B x 112" L/R, NSF (requires 2 faucets)
