Advance Tabco  |  Regaline  |  SKU: 93-83-60-36R  |  UPC: 747545109293

Advance Tabco 93-83-60-36R Regaline Compartment Sinks

$5,690.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

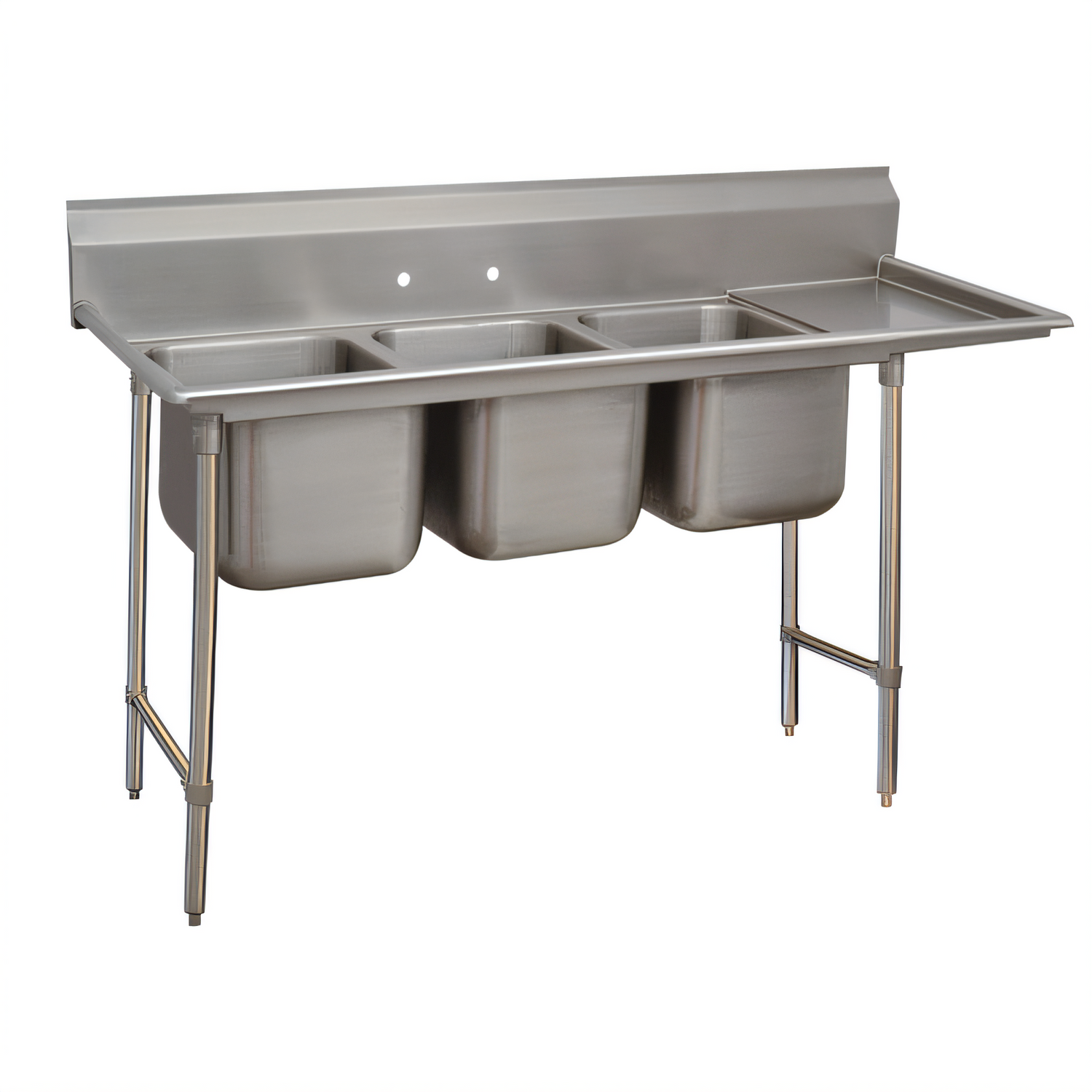

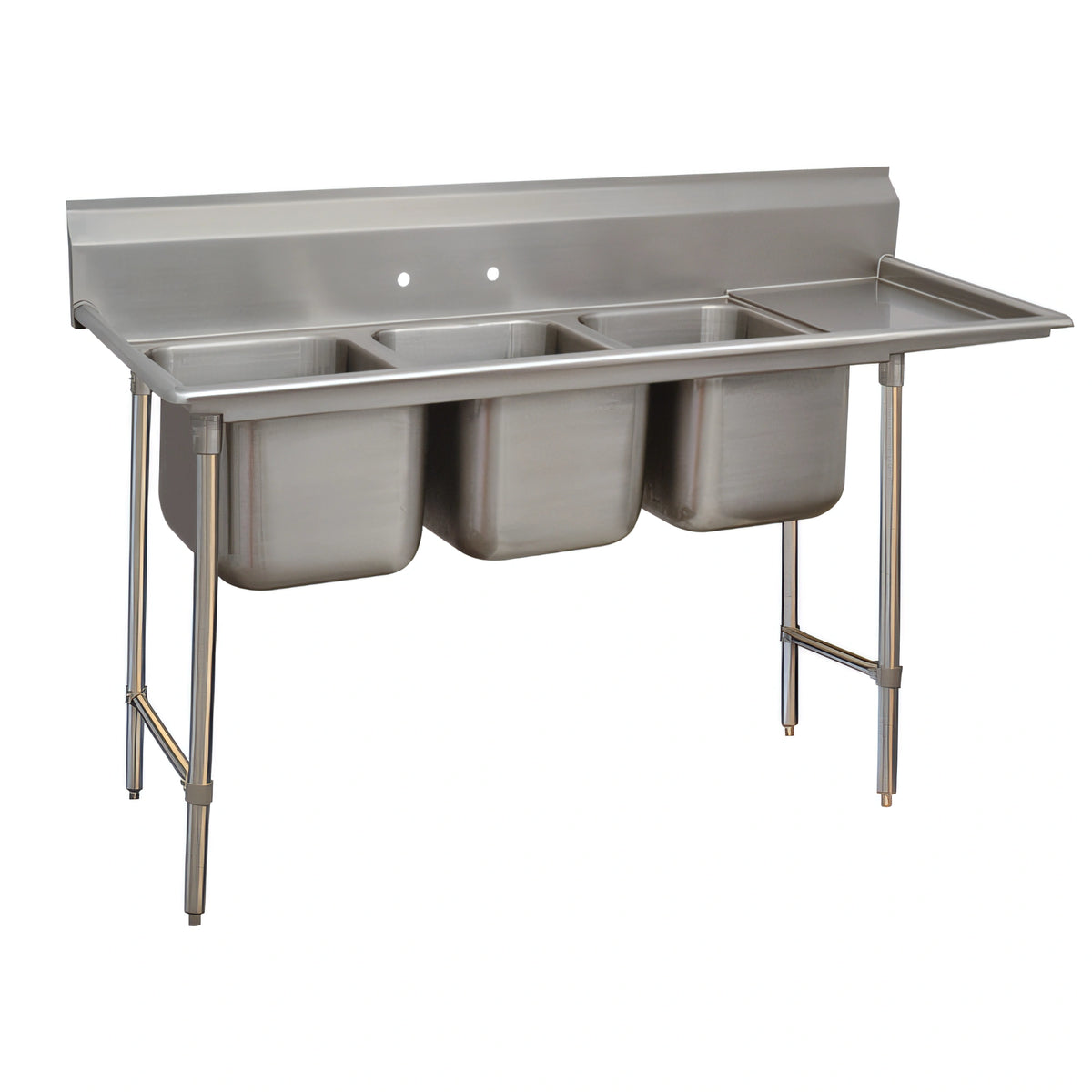

Advance Tabco Regaline 93-83-60-36R Three-Compartment Sink with 36" Right-Hand Drainboard

16 ga 304 Stainless Steel • 108" L × 36" D • NSF

Built for busy kitchens that demand durability and fast cleanup, the Regaline 93-83-60-36R combines three spacious 20" × 28" × 12" bowls with a full-length 36" ribbed drainboard. Heavy-duty 16-gauge type 304 stainless steel, TIG-welded seams, and an open frame base with side cross-bracing give you rock-solid performance shift after shift.

Why You’ll Love It
  • Heavy-duty 16 ga type 304 stainless steel resists corrosion and daily wear.
  • (3) deep-drawn bowls – 20" W × 28" F/B × 12" D – with large 3" radius corners for easy sanitizing.
  • Integrated 8" backsplash with 2" return helps contain splashes and protects walls.
  • 36" right-hand drainboard is ribbed and pitched for rapid draining; two extra legs are supplied for added support.
  • Open frame base with adjustable side cross-rails maximizes under-sink access for plumbing and storage.
  • 1 5/8" Ø tubular stainless steel legs with 1" adjustable bullet feet level the sink on uneven floors.
  • Pre-punched 8" on-center faucet holes; accepts wall or deck-mount faucets (sold separately).
  • (3) 1 1/2" IPS stainless steel basket drains furnished – located in the center of each bowl.
  • TIG-welded construction with satin-blended welds for a clean, professional look.
  • NSF listed for foodservice use.
At-a-Glance Specs
Model # 93-83-60-36R (right-hand drainboard)
Compartments 3
Bowl Size (each) 20" W × 28" F/B × 12" D
Drainboard Length 36" (right side)
Overall Dimensions 108" L × 36" F/B × 44" H (to top of backsplash)
Backsplash Height 8"
Material / Gauge 16 ga type 304 stainless steel
Legs / Feet (6) standard + (2) additional support legs, 1 5/8" Ø tubular S/S with 1" adjustable bullet feet
Faucet Holes (2) holes on 8" centers (faucets not included)
Drain Size 1 1/2" IPS basket strainers (included)
Approx. Weight 287 lb
Certifications NSF
Installation Reminder: Faucets, traps, and supply lines are sold separately. Two extra legs are factory-supplied to support the 36" drainboard and must be installed for NSF compliance.

Need a different drainboard length, bowl size, or custom modification? Contact our Smart Fabrication™ team for a fast quote.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

108.0in

Depth

36.0in

Shipping Weight

273.0lbs

Overall Length

97" - 108"

Compartment (front - back)

28"

Splash Height

8"

Compartment Width (side - side)

20"

Top Gauge

16 gauge

Base Type

legs with side crossrails

Drainboards

with right-hand drainboard

Top Stainless Series

300 series

Sink Depth (rim - drain)

12"

Base Construction

stainless steel

Specifications

Regaline Sink, 3-compartment, with right-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 36" F/B x 108" L/R, NSF
