Advance Tabco 93-83-60-36L Regaline Compartment Sinks
Description

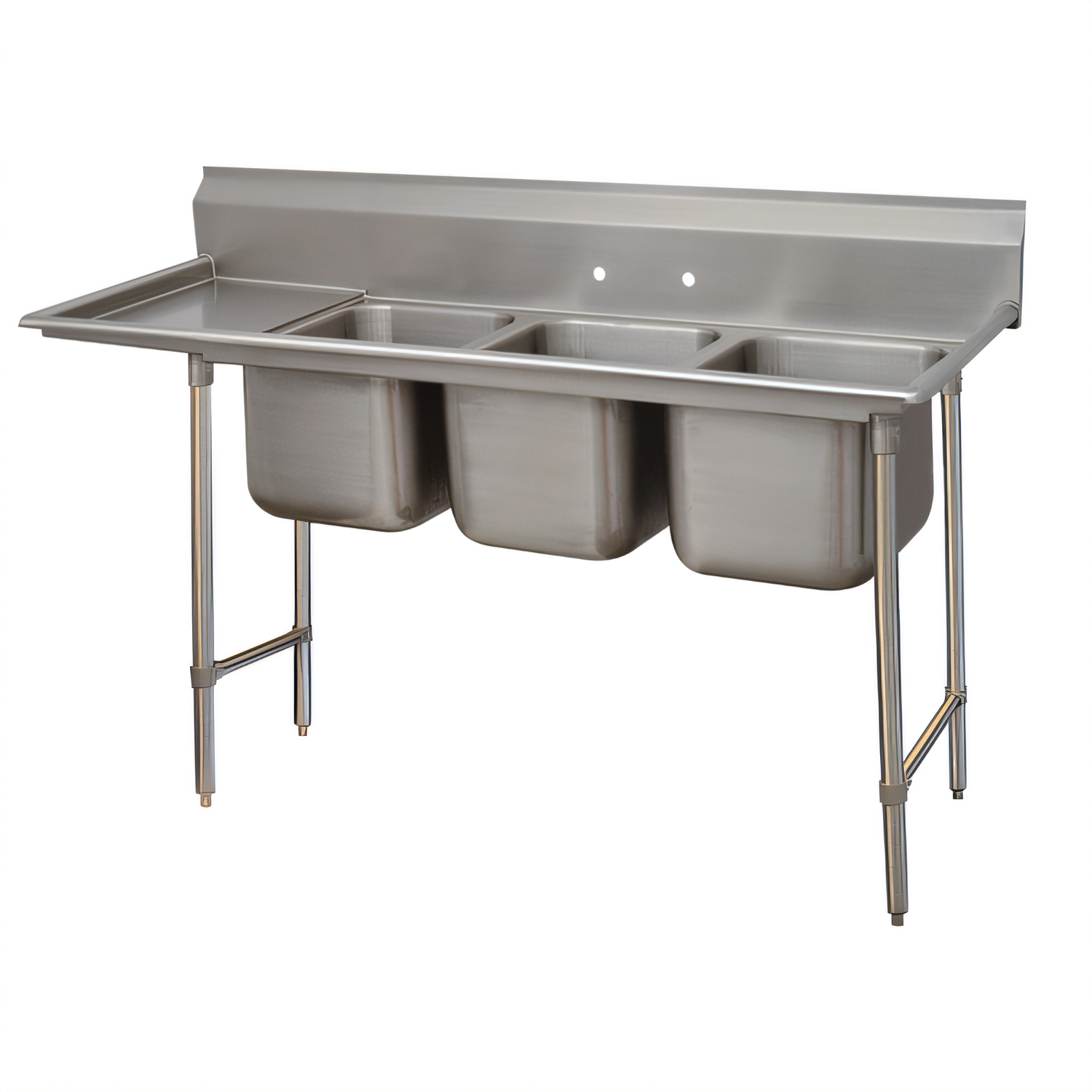

Advance Tabco “Regaline” 93-83-60-36L Three-Compartment Sink
Left-Hand 36" Drainboard | 16 ga 304 Stainless Steel | NSFGive your ware-washing line the heavy-duty performance it deserves. This Regaline 3-compartment sink combines deep 20" × 28" bowls with a spacious 36" left-hand drainboard, delivering a seamless workflow that meets the rigors of high-volume commercial kitchens.
Key advantages
- Durable 16-gauge Type 304 stainless steel – corrosion-resistant & easy to sanitize.
- Three 20" W × 28" F/B × 12" D deep-drawn bowls with generous 3" radius corners for quick clean-ups.
- 36" left-hand drainboard with stamped drainboard splash keeps dishes moving while containing mess.
- 8" high backsplash with tile-edge ease-of-installation and (2) punched 1/2" IPS faucet holes on 8" centers.
- Stainless steel open-frame base with 1 5⁄8" Ø legs, side cross-rails & adjustable 1" bullet feet for rock-solid stability.
- All TIG-welded construction; welds blended to a uniform satin finish.
- NSF listed for food-service sanitation compliance.
At-a-glance specs
| Model | 93-83-60-36L (left-hand drainboard) |
|---|---|
| Compartments | 3 |
| Bowl size (each) | 20" W × 28" F/B × 12" D |
| Drainboard | 36" L (left side) |
| Overall dimensions | 108" L/R × 36" F/B × 37" H (to rolled rim) |
| Backsplash height | 8" |
| Material thickness | 16 ga (0.062") Type 304 stainless steel |
| Legs / bracing | 1 5⁄8" Ø stainless legs with adjustable side cross-rails |
| Feet | 1" stainless steel bullet feet (height adjustable) |
| Drains | (3) 1 1⁄2" IPS stainless basket drains (centered in each bowl) |
| Faucet holes | (2) holes on 8" centers, 1/2" IPS |
| Shipping weight | Approximately 287 lb |
| Certifications | NSF |
Plumbing & installation notes
- Supply: 1/2" IPS hot & cold connections (8" centers).
- Waste: 1 1⁄2" IPS drain lines required below each bowl.
- Open-floor, wall or through-floor rough-ins can be accommodated (see spec sheet).
- 36" drainboards are factory-reinforced with two additional legs for extra support.
Built for the long haul
Advance Tabco’s Regaline Series is engineered for “YES! It’s SeaM less!” performance. From fully welded seams to adjustable gusset-reinforced legs, every detail is designed to give operators years of worry-free use in the busiest dishrooms, commissaries and prep areas.
