Advance Tabco  |  Regaline  |  SKU: 93-82-40-36RL  |  UPC: 747545109170

Advance Tabco 93-82-40-36RL Regaline Compartment Sinks

$4,923.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

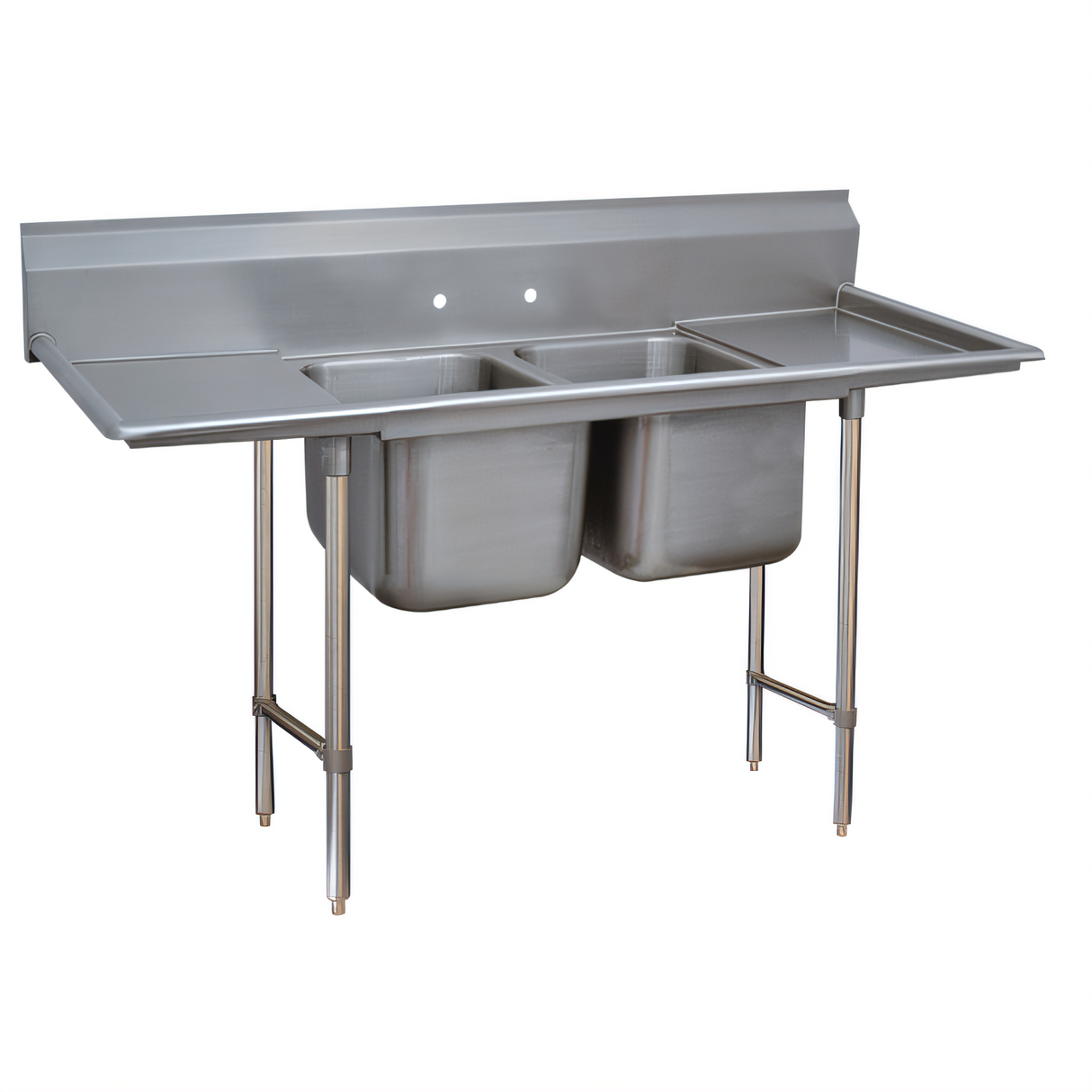

Advance Tabco Regaline 2-Compartment Sink with 36" Left & Right Drainboards – Model 93-82-40-36RL

117" W x 36" D Overall • 20" x 28" x 12" Bowls • 16 ga 304 Stainless Steel • NSF

Built for heavy-duty ware-washing, pan cleanup and prep tasks, the Regaline 93 Series delivers seamless deep-drawn bowls, oversized drainboards and rock-solid TIG-welded construction that stands up to the busiest commercial kitchens.

Key Features

  • Two 20" W x 28" F/B x 12" D compartments with generous 3" corner radius for easy cleaning
  • Extra-long 36" drainboards on both sides—ideal for high-volume landing and drying
  • Integrated 8" high backsplash with 1" tile edge & 8"-on-center faucet holes (faucets sold separately)
  • 16 gauge type 304 stainless steel top, bowls & drainboards—corrosion-resistant and food-safe
  • Complete stainless steel open-frame base with adjustable side cross-rails for maximum rigidity
  • (6) 1-5/8" Ø tubular legs—two extra legs under each 36" drainboard for added support
  • 1" stainless steel bullet feet provide up to 1" of leveling adjustment
  • All TIG-welded; welds blended to a satin finish for a seamless appearance
  • 1-1/2" IPS basket drains included; ready for standard plumbing hook-up
  • NSF listed for easy code approval

Specifications

Manufacturer / Series Advance Tabco • Regaline 93 Series (Standard)
Model 93-82-40-36RL
Compartments (2) 20" W x 28" F/B x 12" D
Drainboards (2) 36" L — left & right, integral with bowls & backsplash
Backsplash 8" H with 1" tile edge, (2) faucet holes on 8" centers
Overall Dimensions 117" W (L/R) x 36" D (F/B) x 43" H (to top of backsplash)
Material & Gauge 16 ga type 304 stainless steel (top, bowls, drainboards)
Legs / Base (6) 1-5/8" Ø tubular stainless legs with side cross-rails & 1" adjustable bullet feet
Drain Openings 1-1/2" IPS S/S basket drains (centered in each bowl)
Approx. Weight 287 lb (shipping weight, nominal)
Certifications NSF

Faucet assemblies, pre-rinse units, scrap baskets and sink covers are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

117.0in

Depth

36.0in

Shipping Weight

287.0lbs

Overall Length

91" - 135"

Base Construction

stainless steel

Drainboards

with left & right-hand drainboards

Base Type

legs with side crossrails

Compartment (front - back)

28"

Compartment Width (side - side)

20"

Top Gauge

16 gauge

Sink Depth (rim - drain)

12"

Splash Height

8"

Top Stainless Series

300 series

Specifications

Regaline Sink, 2-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboards, 1" adjustable feet, 16 gauge 304 stainless steel, overall 36" F/B x 117" L/R, NSF
