Advance Tabco  |  SKU: 93-82-40-24L

Advance Tabco 93-82-40-24L Regaline Compartment Sinks

$4,458.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

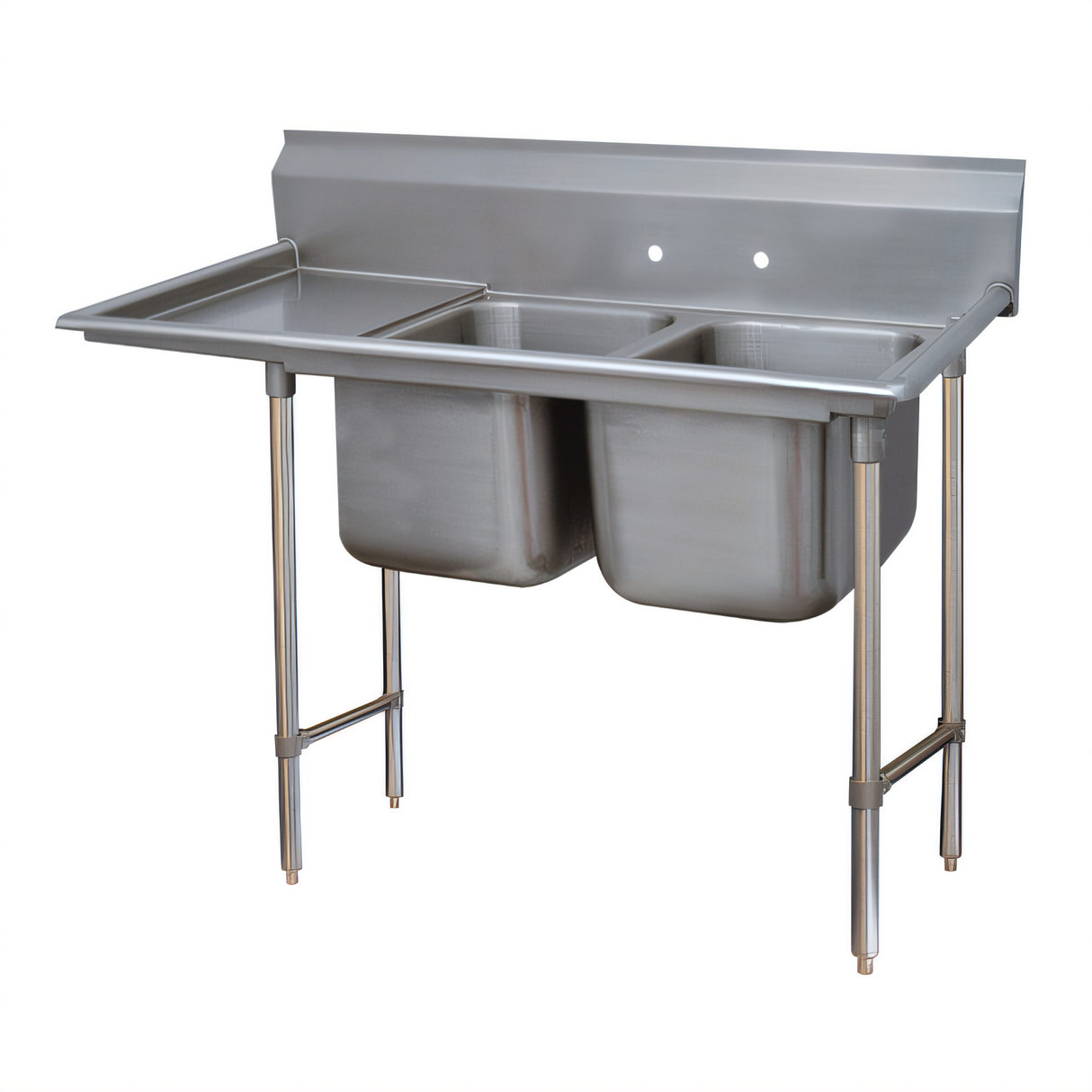

Advance Tabco Regaline 2-Compartment Sink with 24" Left Drainboard

Standard 93 Series – 16 ga Type 304 Stainless Steel

Engineered for demanding commercial kitchens, the Regaline 2-compartment sink delivers generous bowl capacity, a full-size drainboard, and the long-term durability of heavy-duty stainless steel—all in one NSF-listed package.

Key Features
  • Two seamless, deep-drawn bowls (28" front-to-back × 20" wide × 12" deep) with easy-clean 3" radiused corners.
  • 24" left-hand drainboard with integral splash for efficient drying and staging.
  • 8" high backsplash with tile edge for a fast, sanitary wall installation.
  • All TIG-welded construction; welds are blended to a smooth, satin finish.
  • Open frame base with adjustable side crossrails keeps the area under the sink clear while adding rigidity.
  • 1 5⁄8" Ø tubular stainless legs, stainless gussets, and 1" adjustable bullet feet for a rock-solid, level stance.
  • (2) 1 1⁄2" IPS basket drains included—no add-ons required.
  • Pre-punched 8"-on-center faucet holes accept most commercial faucets (sold separately).
  • NSF listed for food-service sanitation compliance.
Specifications
Overall dimensions (L × F/B) 73" L × 36" F/B
Compartments 2
Bowl size (each) 28" F/B × 20" W × 12" D
Drainboard 24" (left)
Backsplash 8" H
Material / gauge 16-ga Type 304 stainless steel
Legs & feet 1 5⁄8" Ø stainless legs with 1" adjustable bullet feet
Faucet mounting 8" centers, 1⁄2" IPS supply (faucet not included)
Drain outlets (2) 1 1⁄2" IPS basket strainers (included)
Compliance NSF, ANSI/ASME A112.19.3 / CSA B45.4
Series / model Regaline 93 Series – 93-22-40-24L

Looking for custom bowl sizes, sink covers, or additional accessories? Ask about Advance Tabco’s Smart Fabrication™ options.

Note: Faucet, waste piping, and installation hardware are sold separately unless otherwise stated.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

73.0in

Depth

36.0in

Shipping Weight

195.0lbs

Drainboards

with left-hand drainboard

Base Construction

stainless steel

Top Gauge

16 gauge

Base Type

legs with side crossrails

Compartment (front - back)

28"

Compartment Width (side - side)

20"

Splash Height

8"

Overall Length

73" - 90"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Specifications

Regaline Sink, 2-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 36" F/B x 73" L/R, NSF
