Advance Tabco  |  Regaline  |  SKU: 93-81-20-24RL  |  UPC: 747545109019

Advance Tabco 93-81-20-24RL Regaline Compartment Sinks

$3,323.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

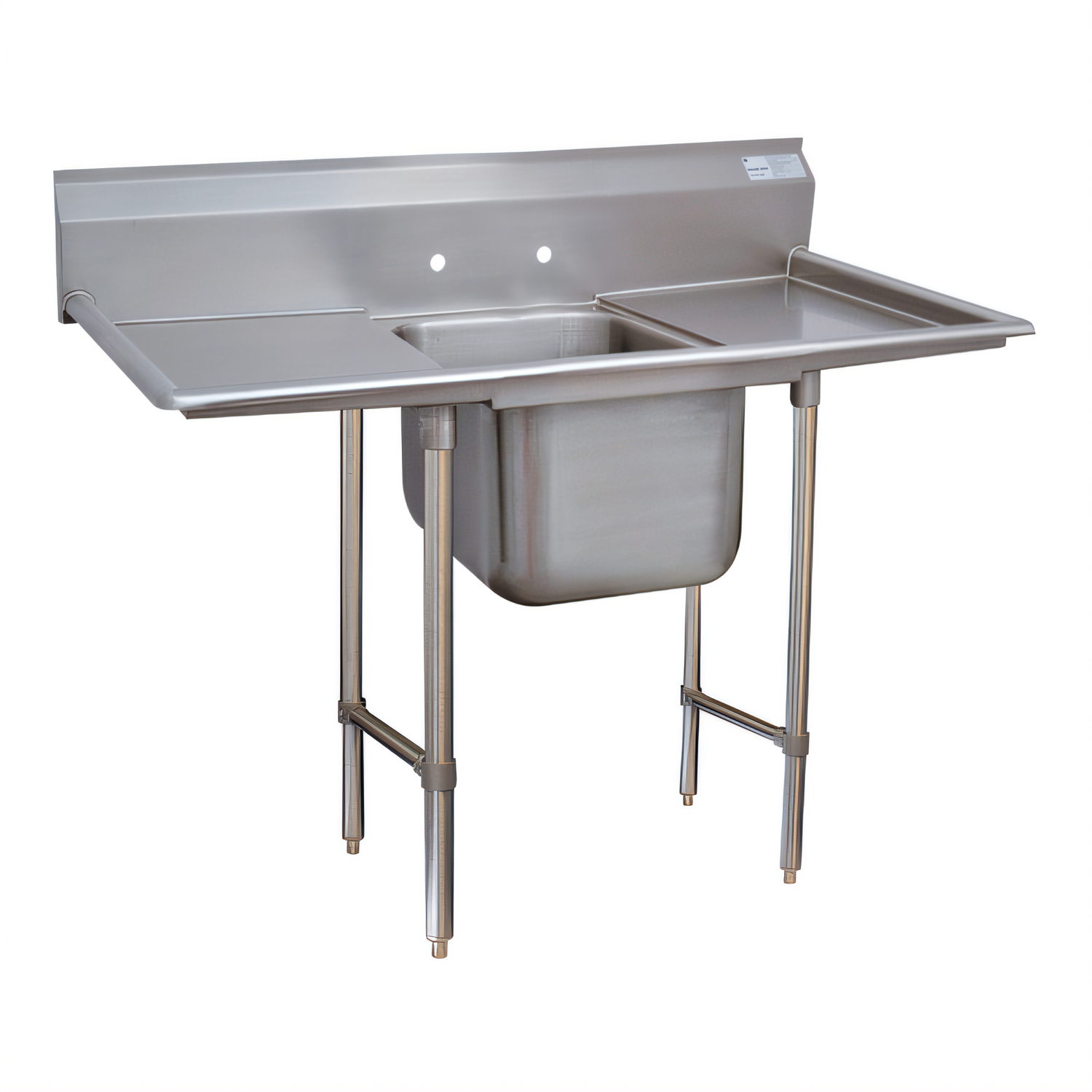

Advance Tabco “Regaline” 1-Compartment Sink with Twin 24" Drainboards

16 ga Type 304 Stainless Steel • Model 93-81-20-24RL • NSF Listed

Built for heavy-duty warewashing and prep applications, the Advance Tabco Regaline series combines rugged all-welded construction with user-friendly details that speed up cleaning and installation. A generous 28" front-to-back bowl depth handles full-size sheet pans, while 24" left- and right-hand drainboards keep incoming and finished items organized without taking over your floor plan.

Why Choose This Sink

  • One large 28" F/B × 20" W × 12" D compartment fits bulky stock pots and hotel pans.
  • Dual 24" integral drainboards with splash shields speed up prep & drying on either side.
  • 16 gauge, 304 SS top & bowl withstands corrosive chemicals and heavy impacts.
  • All TIG welds are blended to a smooth SeaM less! satin finish.
  • Large 3" interior corner radius promotes fast wipe-down and full NSF compliance.
  • 8" high backsplash with 1" tile edge keeps walls dry and simplifies mounting.
  • Pre-punched 8"-on-center faucet holes (faucet sold separately) cut installation time.
  • Open stainless frame base with 1⅝" dia. legs & side crossrails maximizes below-sink access.
  • 1" adjustable stainless bullet feet level the unit on uneven floors.
  • Basket drain assembly (1½" IPS) included—no extra hardware needed.

At-a-Glance Specs

Overall Dimensions 36" F/B × 70" L/R × 34" H (work height)
42" H to top of 8" backsplash
Bowl Size (1) 28" F/B × 20" W × 12" D
Drainboards 24" L × 28" F/B (left & right, integral)
Material / Gauge 16 ga type 304 stainless steel top & bowl
Base 1⅝" Ø tubular stainless legs with adjustable side cross-bracing
Faucet Mount 8" centers, 1⅛" dia. holes (faucet not included)
Drain 1½" IPS stainless basket drain (centered)
Weight (ship) ≈ 165 lb
Certifications NSF

Installation Notes

  • Water supply: ½" IPS hot & cold lines.
  • Designed for open floor, wall, or through-floor drain hookups (see rough-in drawings in gallery).
  • Additional legs are not required with 24" drainboards (units with 36" drainboards ship with extra legs).

Need custom modifications or accessories such as faucets, scrap baskets, or cutting boards? Ask our team about Advance Tabco Smart Fabrication™ options.

Heads up: Faucets, overflow pipes, and lever drains are shown for reference only and are sold separately unless specifically added to your order. Always verify rough-in dimensions before final plumbing.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

70.0in

Depth

36.0in

Shipping Weight

165.0lbs

Base Type

legs with side crossrails

Overall Length

63" - 72"

Top Gauge

16 gauge

Compartment (front - back)

28"

Splash Height

8"

Base Construction

stainless steel

Compartment Width (side - side)

20"

Drainboards

with left & right-hand drainboards

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboards, 16 gauge 304 stainless steel, 1" adjustable bullet feet, overall 36" F/B x 70" L/R, NSF
