Advance Tabco 93-81-20-24L Regaline Compartment Sinks
Description

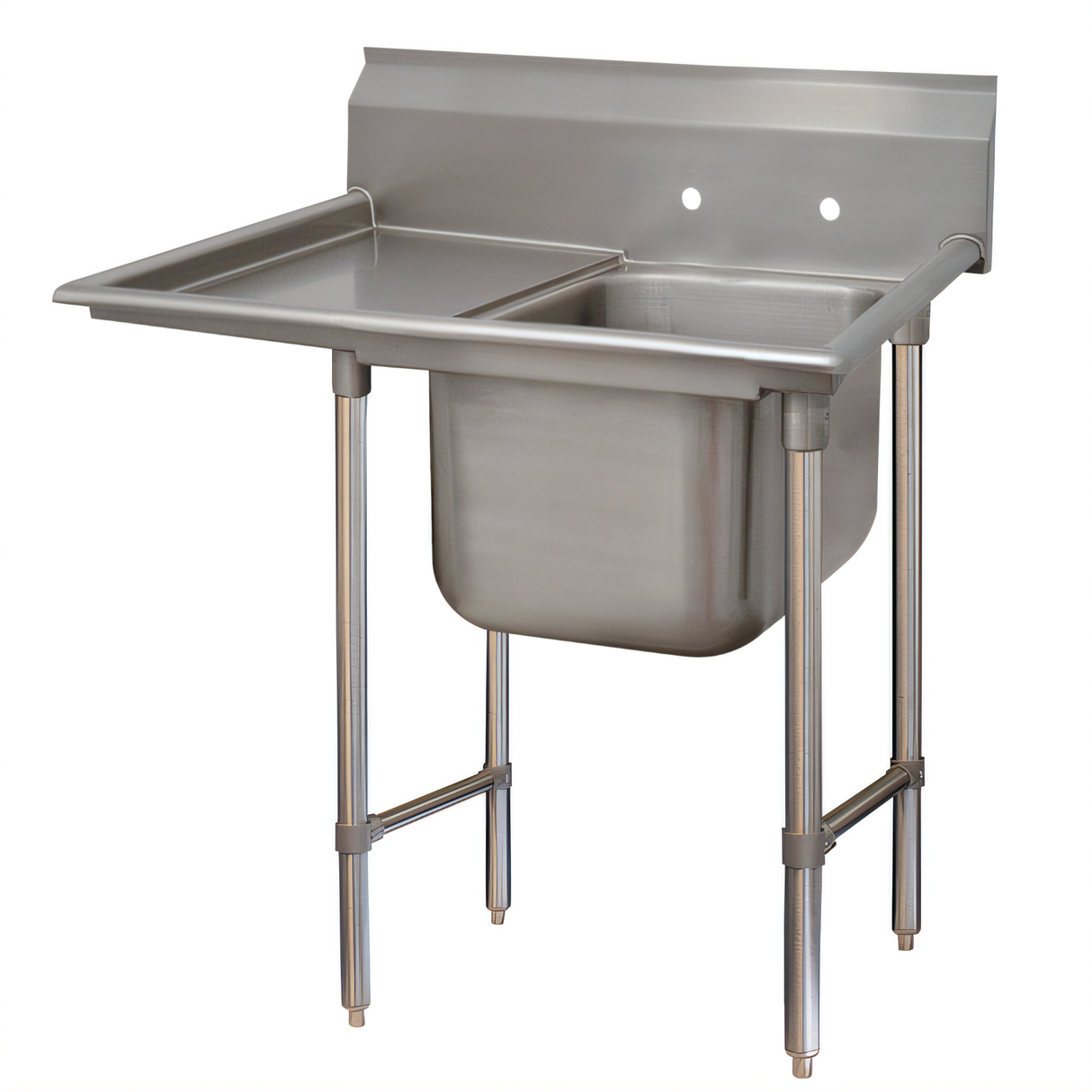

Advance Tabco “Regaline” 1-Compartment Sink w/ 24″ Left Drainboard
Standard 93 Series • 16 ga 304 Stainless Steel • NSF ListedBuilt for busy commercial kitchens, this Advance Tabco Regaline sink combines a spacious 20″ × 28″ deep-drawn bowl with a full 24″ left-hand drainboard and an open tubular frame base. Durable 16-gauge 304 stainless steel, all-TIG welded seams, and adjustable bullet feet give you the reliability and flexibility you need for heavy-duty ware-washing, prep, or pot-soaking tasks.
Why You’ll Love It
- Extra-large 20″ W × 28″ F/B × 12″ D bowl handles bus tubs, sheet pans, and stock pots with ease.
- 24″ integral drainboard (left side) speeds up drying and staging while keeping counters clear.
- 8″ high backsplash with tile edge protects walls and simplifies installation.
- Open stainless steel frame with side crossrails provides rock-solid stability and easy underneath access for plumbing or storage.
- 1 ⅝″ diameter legs with 1″ adjustable bullet feet level the unit on uneven floors.
- All TIG-welded construction; welds are blended to a matching satin finish for a professional look.
- NSF certified for safe food-service use.
Quick Specs
| Overall Dimensions | 36″ front-to-back × 50″ left-to-right × 44″ H (to top of backsplash) |
|---|---|
| Bowl Interior | 20″ W × 28″ F/B × 12″ D 3″ radius corners |
| Drainboard | 24″ L (left side), integrally welded with ¼″ pitch for positive drainage |
| Backsplash | 8″ H with 2″ return pre-punched 8″ on-center faucet holes |
| Material / Gauge | Type 304 stainless steel, 16 ga (Standard “93” Series) |
| Base Construction | 1 ⅝″ O.D. tubular stainless steel legs adjustable side crossrails 1″ stainless steel bullet feet |
| Drain | 1 ½″ IPS stainless steel basket drain (centered) |
| Certifications | NSF |
| Advance Tabco Model No. | 93-81-20-24L (left-hand drainboard) |
Installation & Plumbing
- Supply lines: ½″ IPS hot & cold (faucet supplied separately).
- Pre-punched 8″ O.C. faucet holes accept most commercial wall or deck-mount faucets.
- Basket drain and stainless steel tailpiece included.
- Shipped knocked-down to reduce freight costs; simple bolt-up assembly on site.
Need a right-hand drainboard, extra cross-bracing, or custom bowl size? Ask about Advance Tabco Smart Fabrication™ options.
