Advance Tabco  |  Regaline  |  SKU: 93-44-96-24RL  |  UPC: 747545108487

Advance Tabco 93-44-96-24RL Regaline Compartment Sinks

$7,176.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

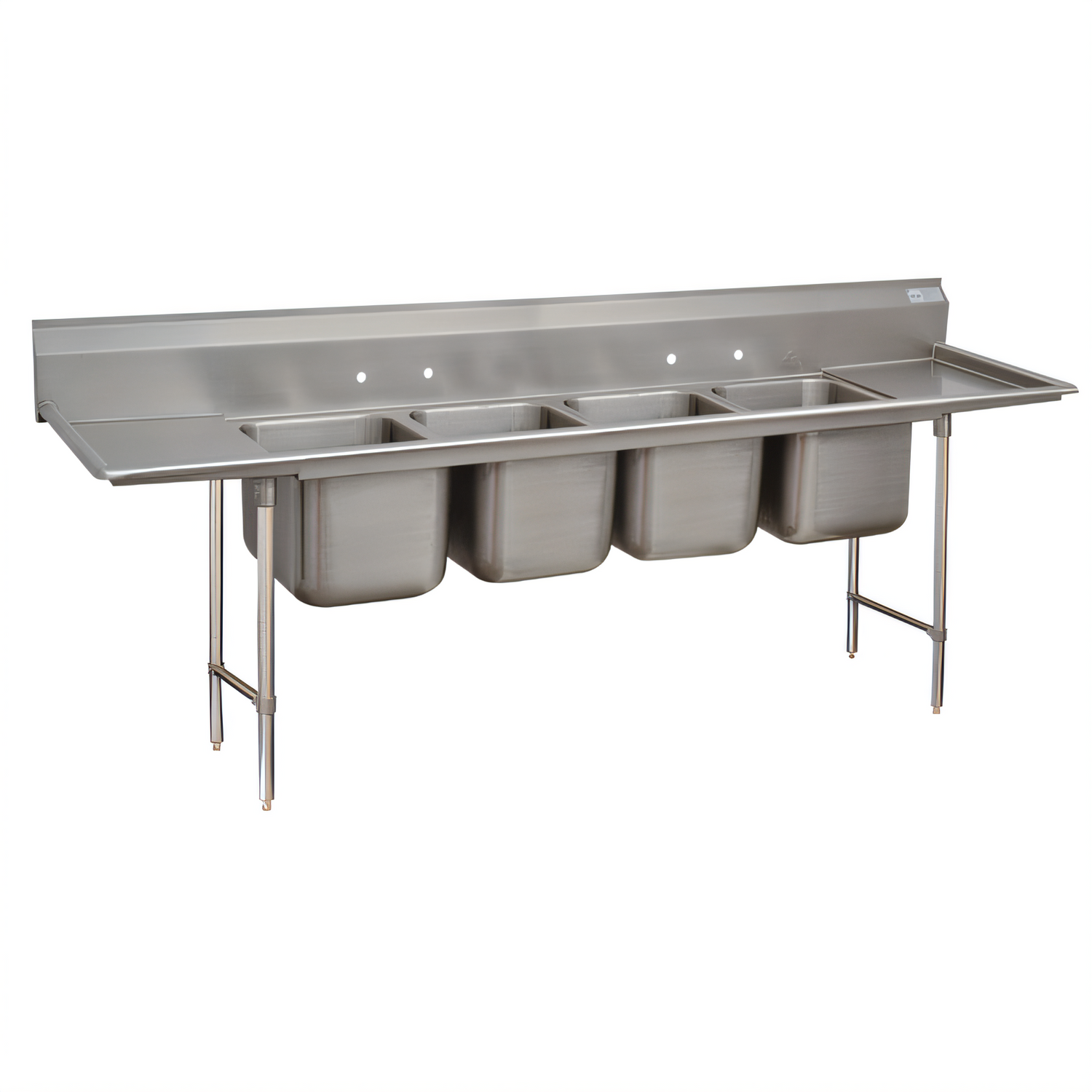

Advance Tabco Regaline 4-Compartment Sink w/ Double 24" Drainboards

Model 93-44-96-24RL  |  16-Gauge 304 Stainless Steel

When maximum throughput and uncompromising sanitation are non-negotiable, the Regaline Series delivers. This 154-inch workhorse combines four full-size sink bowls with roomy drainboards on both ends, giving busy kitchens all the washing, rinsing, and sanitizing capacity they need in one NSF-listed unit.

Key Features

  • Four seamless 24" × 24" × 12" deep bowls with smooth 3" corner radius for effortless clean-up.
  • Left & right 24" drainboards — ideal landing zones for soiled and finished wares.
  • 8" high backsplash with tile edge creates a watertight seal against the wall.
  • Heavy-duty 16-ga type 304 stainless steel resists corrosion from chemicals, salt, and bleach.
  • Open frame base with 1 ⅝" O.D. tubular stainless legs, gussets, and adjustable side cross-rails.
  • 1" stainless steel bullet feet adjust to level the sink on uneven floors.
  • (4) 1 ½" IPS stainless basket drains centered in each bowl (included).
  • Two sets of 8"-on-center faucet holes (faucets required, sold separately).
  • TIG-welded construction blended to a satin finish; NSF listed.

Specifications

Overall dimensions 154" L × 32" F/B × 44" H (to top of backsplash)
Compartments 4 bowls, 24" L × 24" W × 12" D each
Drainboards 24" left & 24" right (integral with backsplash)
Backsplash height 8"
Material / gauge 16-ga 304 series stainless steel
Legs & bracing 1 ⅝" tubular S/S legs with side cross-bracing & stainless gussets
Feet 1" adjustable stainless bullet feet
Drain openings 1 ½" IPS basket strainers (included)
Faucet mount (2) splash-mount, 8" centers (faucets not included)
Certifications NSF
Approx. shipping weight 361 lb

Looking for compatible pre-rinse units, scrap baskets, or custom sink covers? Contact our team for accessory recommendations.

Important: This sink ships without faucets. Two splash-mount faucets with 8" centers are required for proper operation.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

154.0in

Depth

32.0in

Shipping Weight

361.0lbs

Base Type

legs with side crossrails

Overall Length

130" - 198"

Top Gauge

16 gauge

Splash Height

8"

Base Construction

stainless steel

Sink Depth (rim - drain)

12"

Drainboards

with left & right-hand drainboards

Compartment (front - back)

24"

Top Stainless Series

300 series

Compartment Width (side - side)

24"

Specifications

Regaline Sink, 4-compartment, with left & right-hand drainboards, 24" front-to-back x 24"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboards, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 32" F/B x 154" L/R, NSF (requires 2 faucets)
