Advance Tabco 93-43-72-24RL Regaline Compartment Sinks
Description

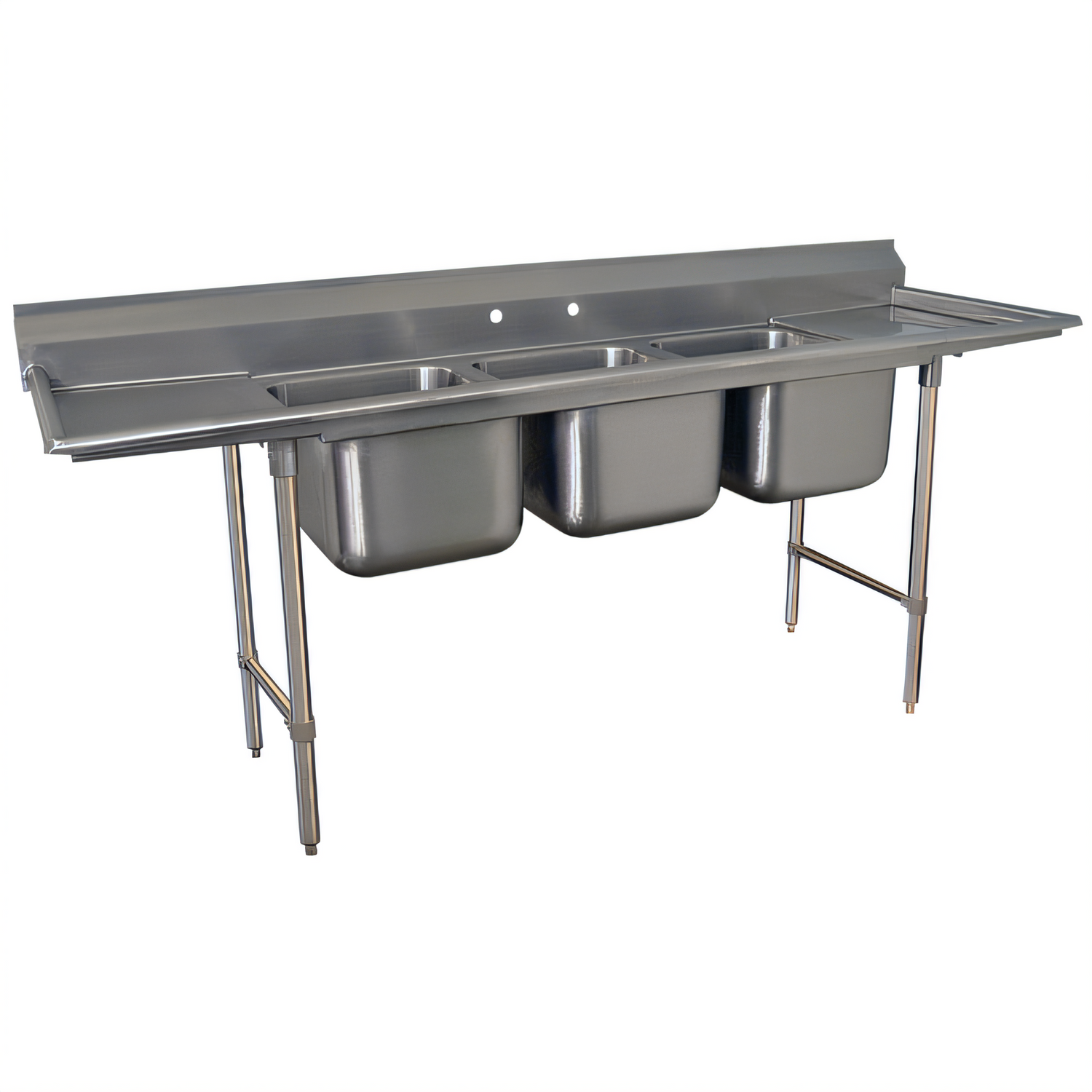

Advance Tabco “Regaline” 3-Compartment Sink | Dual 24" Drainboards
Standard Series – 16 ga Type 304 Stainless Steel – Model 93-43-72-24RLBuilt for the heaviest ware-washing workloads, the Advance Tabco Regaline 3-compartment sink pairs roomy 24" × 24" × 12" deep bowls with full-length 24" drainboards on both sides. A rugged 16-gauge, type 304 stainless steel body, TIG-welded seams and adjustable cross-bracing deliver the durability, sanitation and convenience commercial kitchens demand.
Highlights
- Three (3) deep-drawn bowls – each 24" front-to-back × 24" wide × 12" deep
- Left- & right-hand 24" sloped drainboards with embossed drain lines
- 8" high backsplash with tile edge and 2" return for quick, watertight installation
- Heavy-duty 16 ga type 304 stainless steel – all TIG-welded, polished to a satin finish
- Large 3" interior corner radius for effortless rinsing and wipe-down
- 1 ⅝" Ø stainless tubular legs with stainless gussets and 1" adjustable bullet feet
- Adjustable side cross-rails increase rigidity and provide open base clearance
- (3) 1 ½" IPS stainless basket drains included – centrally located
- Two sets of 8" O.C. faucet holes – requires two faucets (sold separately)
- NSF listed for food-service sanitation
Technical Specifications
| Overall dimensions | 127" L × 32" F/B × 34" H (to deck) | 42" H to top of backsplash |
|---|---|
| Compartment dimensions (3) | 24" L × 24" W × 12" D |
| Drainboard length | 24" (left) + 24" (right) |
| Material / gauge | Type 304 stainless steel, 16 ga (tops & bowls) |
| Legs & bracing | 1 ⅝" Ø tubular stainless legs with adjustable side cross-bracing |
| Backsplash | 8" H, coved corners, tile edge, 2" return |
| Faucet mounting | (2) 8" center sets (faucets not included) |
| Drain connection | 1 ½" IPS, basket strainers supplied |
| Shipping weight | Approx. 331 lb |
| Certifications | NSF # (listed), made in U.S.A. |
Installation Notes
- Unit is supplied fully welded – minimal assembly required (attach legs & cross-rails).
- Provide two ½" IPS hot & cold water supplies aligned with faucet rough-ins.
- Waste line requires three 1 ½" IPS connections; P-traps not included.
- Allow adequate clearance behind backsplash for 8" O.C. faucets.
Need a custom modification, pre-rinse faucet or overshelf? Advance Tabco Smart Fabrication™ can help.
