Advance Tabco 93-42-48-24R Regaline Compartment Sinks
Description

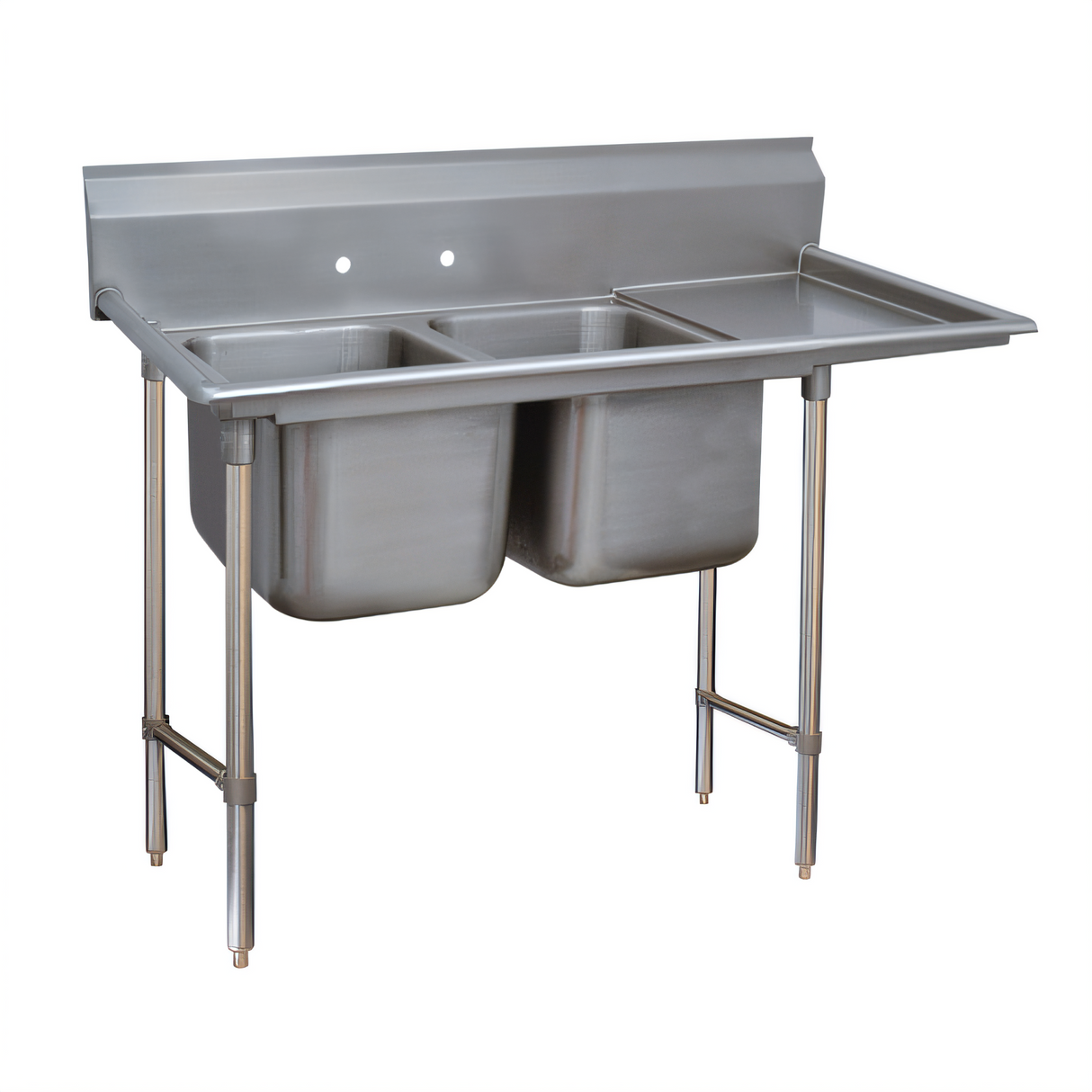

Advance Tabco “Regaline” 2-Compartment Sink w/ 24" Right Drainboard
Model 93-42-48-24R | NSF Listed | 93 Series Standard LineBuilt for the daily grind of commercial kitchens, this Advance Tabco Regaline sink pairs two spacious 24" x 24" compartments with a generous 24" right-hand drainboard—all fabricated from rugged 16 gauge type 304 stainless steel. Seamless deep-drawn bowls, TIG-welded construction, and bullet-proof cross-bracing deliver the durability, hygiene, and easy clean-up that busy operators demand.
Key Features
- Two 24" W x 24" F/B x 12" D sink compartments with easy-clean 3" radius corners
- Integrated 24" right-hand drainboard for efficient staging & drying
- 8" high backsplash with 8"-on-center faucet holes (1/2" IPS hot & cold)
- Heavy-duty 16 ga. 304 SS top, bowls & drainboard (Standard 93 Series)
- Open tubular frame base with side crossrails for strength & unobstructed storage below
- 1 ⅝" dia. stainless steel legs with gussets & 1" adjustable bullet feet
- Factory-installed 1 ½" IPS stainless steel basket drains—one per bowl
- All seams TIG welded and blended to a smooth satin finish
- NSF certified for food-service sanitation
At-a-Glance Specifications
| Overall Dimensions | 81" L (left-to-right) x 32" F/B x 37" H (with feet) |
|---|---|
| Compartment Size (each) | 24" L/R x 24" F/B x 12" D |
| Number of Compartments | 2 |
| Drainboard | 24" W, right-hand, recessed no-drip design |
| Backsplash | 8" H with 2" return |
| Material & Gauge | 16 ga. type 304 stainless steel (top, bowls & drainboard) |
| Frame / Legs | 1 ⅝" O.D. tubular stainless steel, side crossrails |
| Drains | (2) 1 ½" IPS basket drains (centered in bowls) |
| Faucet Holes | 8" centers, 1 ⅛" dia. |
| Weight | Approx. 194 lb |
| Certifications | NSF, Made in USA |
Plumbing rough-in: waste line 1 ½" IPS; supply (hot & cold) ½" IPS on 8" centers. See cut-sheet for detailed dimensions.
