Advance Tabco 93-41-24-24RL Regaline Compartment Sinks
Description

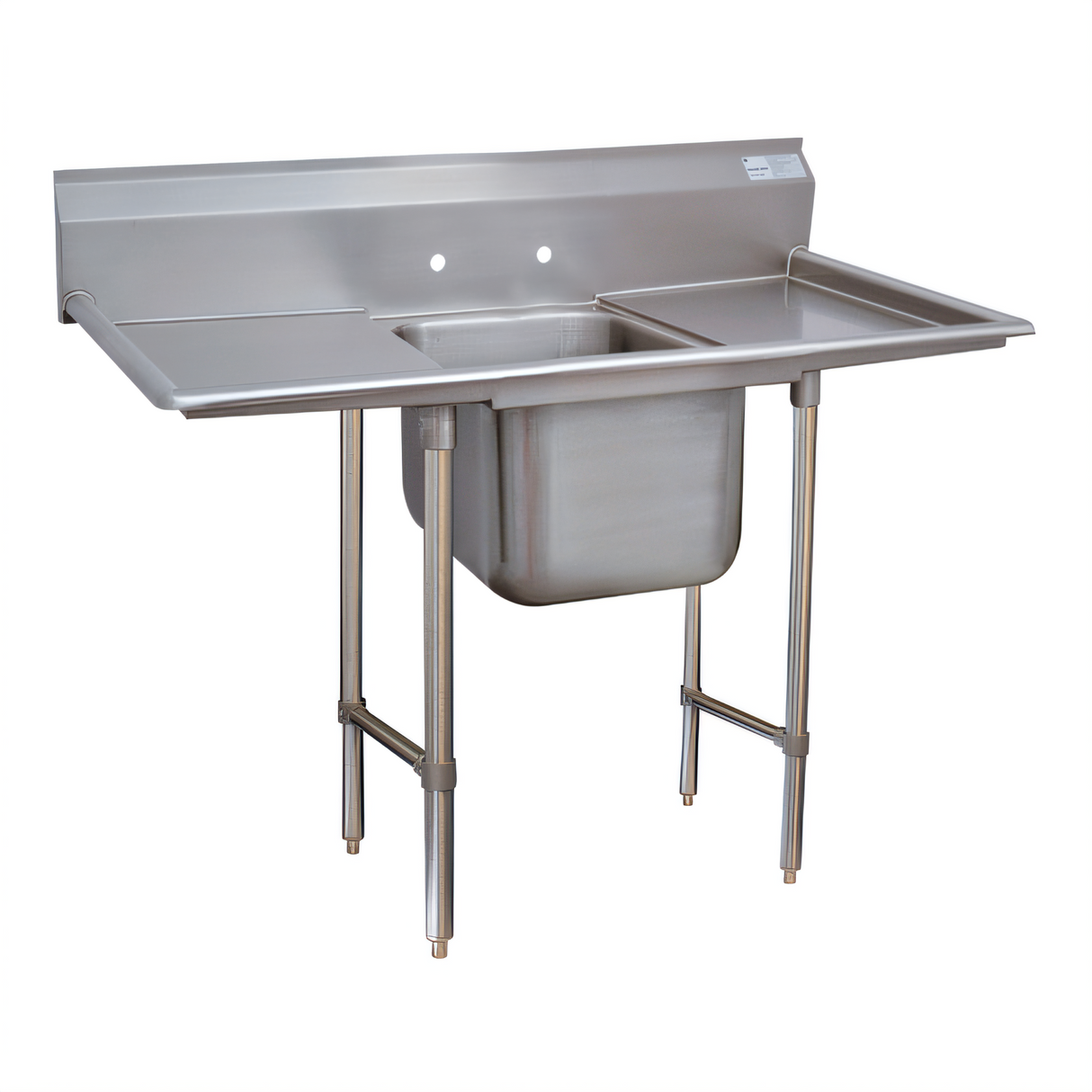

Advance Tabco “Regaline” 1-Compartment Sink
with 24" Left & Right Drainboards
Model 93-41-24-24RL • 16 Gauge Type 304 Stainless Steel • NSF
Built to keep the clean-up line moving, this Regaline series sink combines a generous 24" × 24" bowl, dual 24" drainboards and rock-solid 16 ga. stainless-steel construction. Every joint is TIG-welded and satin-finished for a seamless look that stands up to the daily grind in restaurants, hotels, schools and commissaries.
Key Features
- Single 24" W × 24" F/B × 12" D deep-drawn bowl with large 3" radius corners for easy cleaning
- Integrated 24" drainboards on both the left & right sides with backsplash splash edge
- 8" high backsplash with tile edge for fast, sanitary installation against the wall
- 16 ga. Type 304 stainless steel top, bowl & drainboards – corrosion-resistant & food-safe
- 1 ⅝" O.D. tubular stainless-steel legs with side crossrails for maximum rigidity
- 1" adjustable stainless-steel bullet feet level the sink on uneven floors
- 1 ½" IPS stainless-steel basket drain supplied; faucet holes punched on 8" centers (faucet not included)
- All TIG-welded construction; welds are blended and polished to a uniform satin finish
- NSF listed for sanitation compliance
Specifications
| Series / Category | Regaline 93 Series – Standard Duty |
|---|---|
| Model # | 93-41-24-24RL |
| Overall Dimensions | 74" L × 32" F/B × 34" H (work height) |
| Bowl Size (1) | 24" L × 24" F/B × 12" D |
| Drainboard Size | 24" long (each side) |
| Backsplash | 8" high with 2" return |
| Material Thickness | 16 ga. (0.062") Type 304 stainless steel |
| Leg Construction | 1 ⅝" tubular 304 S/S with stainless gussets & side crossrails |
| Feet | 1" adjustable stainless-steel bullet feet |
| Drain Connection | 1 ½" IPS basket drain (centered in bowl) |
| Faucet Holes | 8" centers | 1 ⅛" O.D. holes (faucet sold separately) |
| Approx. Shipping Weight | 185 lb |
| Certifications | NSF |
Faucets, pre-rinse units, overflow fittings and other plumbing accessories are shown for reference only and are not included with this sink.
