Advance Tabco Regaline 4-Compartment Deep Drawn Stainless Steel Sink with 16 x 20 Inch Bowls, 12 Inch Deep, No Drainboards, 83 Inch Overall

SKU: 93-4-72
GTIN: 747545108142
$3,274.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

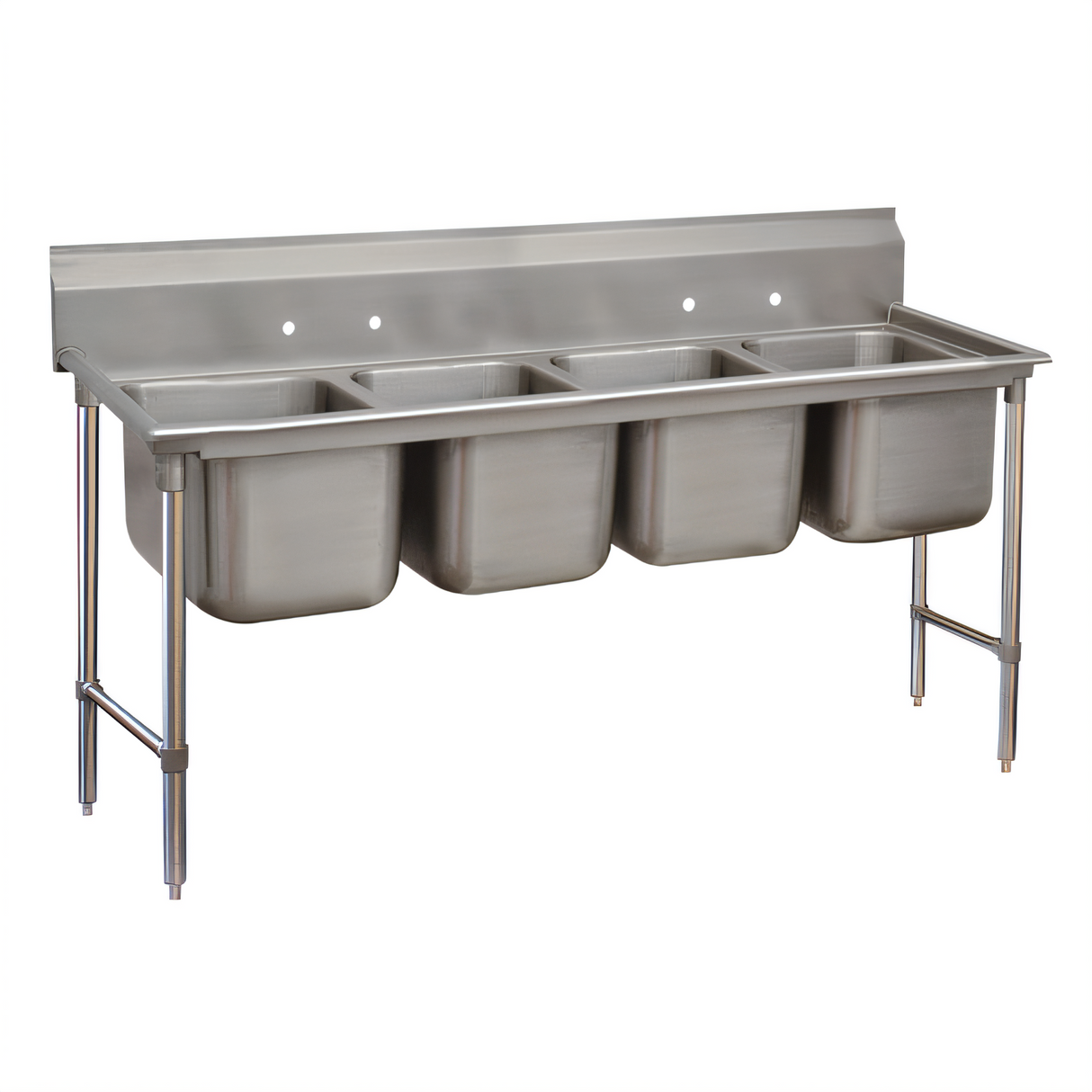

Advance Tabco Regaline 4-Compartment Deep Drawn Stainless Steel Sink with 16 x 20 Inch Bowls, 12 Inch Deep, No Drainboards, 83 Inch Overall

8 Inch Splash, Open Frame Base, Floor Model

A rugged four-compartment sink built with deep-drawn 304 stainless steel bowls, an open frame base, and splash control for demanding dishroom use.

  • Four 16 x 20 inch sink bowls give you generous dishwashing capacity.
  • 12 inch deep compartments and an 8 inch splash help contain water at the sink line.
  • 16 gauge 304 stainless steel construction is designed for heavy-duty commercial use.
  • Open frame base with side crossrails and adjustable bullet feet provides stable support and easy leveling.
  • Recessed bowl surfaces accommodate Poly-Vance cutting boards and sink covers.
  • Faucets are not included; the sink has 8 inch on-center faucet holes and includes basket-type waste drains.

Overall Dimensions:

83.0"W x 28.0"D x 42.0"H

Product Weight:

176.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Deep-Drawn Sink Bowls

One-piece bowls with a large 3-inch radius are deep drawn for strength and easier cleaning.

Tile Edge Splash

8-inch high splash helps simplify installation and protect the wall from splashes.

TIG Welded Construction

All welded areas are blended to match adjacent surfaces and finished to a satin surface.

Adjustable Side Cross Braces

The 93 Series uses adjustable side cross braces with leg clamps for added support.

Stainless Steel Legs

1 5/8-inch diameter tubular stainless steel legs provide a sturdy frame.

Adjustable Bullet Feet

1-inch adjustable bullet feet make leveling easier on uneven floors.

Reinforcing Channel Gussets

Gussets are welded to a die-embossed reinforcing channel for rigidity.

Accessory-Ready Bowl Surface

Recessed bowl surfaces accommodate Poly-Vance cutting boards and sink covers.

Faucet And Drain Rough-In

1/2-inch IPS hot and cold supply, 8-inch on-center faucet holes, and included 1 1/2-inch IPS basket-type waste drains.

Type 4 Compartment Sink
Style Deep Drawn
Installation Type Floor Model
Compartments 4
Pan Size 16 Inches x 20 Inches
Compartment Depth 12 Inches
Splash Height 8 Inches
Material 304 Stainless Steel
Finish Satin
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Base Construction Stainless Steel
Base Type Open Frame With Side Crossrails
Drainboards None
Shipping Width 83 Inches
Shipping Depth 28 Inches
Shipping Height 42 Inches
Shipping Weight 176 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Plumbing PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

Each compartment measures 16 inches wide by 20 inches front-to-back and 12 inches deep.
No. This configuration is supplied without drainboards.
No. Faucets are not included, and the sink has 8-inch on-center faucet holes.
The product requires two faucets.
It uses an open frame stainless steel base with side crossrails and 1-inch adjustable bullet feet.
Yes. The recessed bowl surface accommodates Poly-Vance cutting boards and sink covers.
