Advance Tabco 93-4-72-36R Regaline Compartment Sinks
Description

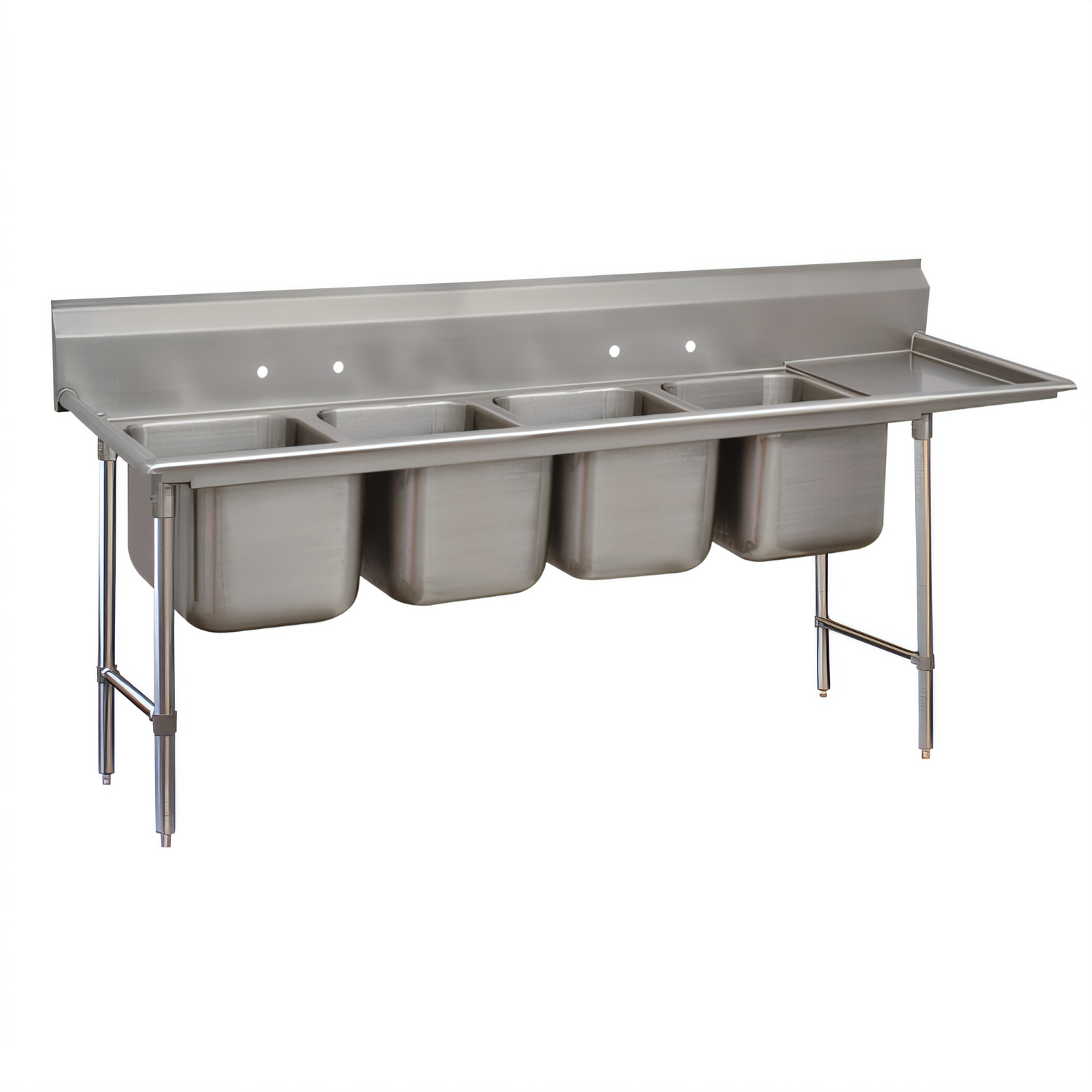

Advance Tabco Regaline 4-Compartment Sink w/ 36" Right Drainboard – 93-4-72-36R
16 ga 304 stainless steel • 16" W x 20" D x 12" H bowls • NSF ListedBuilt for high-volume warewashing, the Advance Tabco 93-4-72-36R Regaline sink combines four generously sized compartments with a full 36 inch right-hand drainboard. Heavy-duty 16 gauge type 304 stainless steel, all-TIG-welded seams, and an open tubular base deliver rock-solid durability that stands up to daily commercial use.
Key Features
- Four deep-drawn sink bowls, each 16" W x 20" D x 12" H, with easy-to-clean 3" interior corner radius.
- Integrated 8" high backsplash with tile edge simplifies sanitary wall installation.
- Spacious 36" right-side drainboard speeds drying and staging.
- Open frame base with 1 5/8" Ø stainless legs, gussets, and side crossrails for unobstructed storage and maximum rigidity.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
- (4) 1 1/2" IPS basket drains supplied; located in bowl centers.
- TIG-welded throughout; welds blended to a satin finish that matches surrounding surfaces.
- NSF Listed for foodservice sanitation compliance.
Specifications
| Manufacturer / Series | Advance Tabco Regaline – 93 Series (Standard) |
|---|---|
| Model # | 93-4-72-36R |
| Compartments | 4 |
| Bowl Dimensions (each) | 16" W x 20" F/B x 12" D |
| Drainboard | 36" right-hand |
| Backsplash Height | 8" with 1" return |
| Overall Dimensions | 114" L/R x 28" F/B x 44" H (approx. to top of backsplash) |
| Material / Gauge | 16 ga type 304 stainless steel |
| Legs & Bracing | 1 5/8" Ø stainless tubular legs with side crossrails |
| Feet | 1" adjustable stainless bullet feet |
| Drain Connections | (4) 1 1/2" IPS basket drains (included) |
| Faucet Punching | (2) sets of 8" O.C. faucet holes — two faucets required |
| Shipping Weight | Approx. 238 lb |
| Certifications | NSF |
Ideal Applications
- High-volume dish rooms
- School and university kitchens
- Catering and commissary facilities
- Hotel, resort, and banquet operations
Need custom modifications or accessories? Reach out to our team—Advance Tabco sinks can be factory-fitted with lever waste drains, splash-mounted faucets, cutting boards, and more.
