Advance Tabco  |  Regaline  |  SKU: 93-4-72-36L  |  UPC: 747545108210

Advance Tabco 93-4-72-36L Regaline Compartment Sinks

$4,702.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

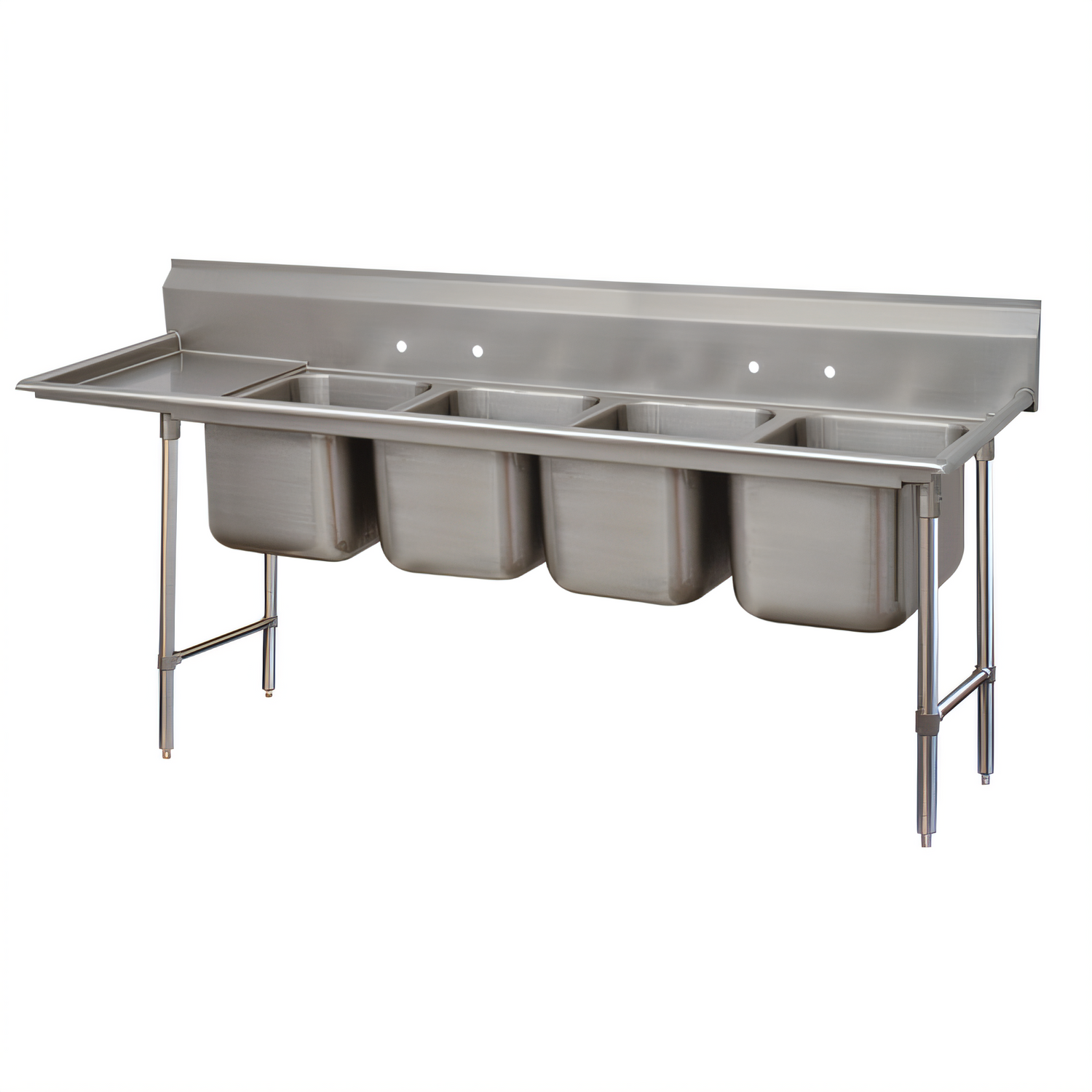

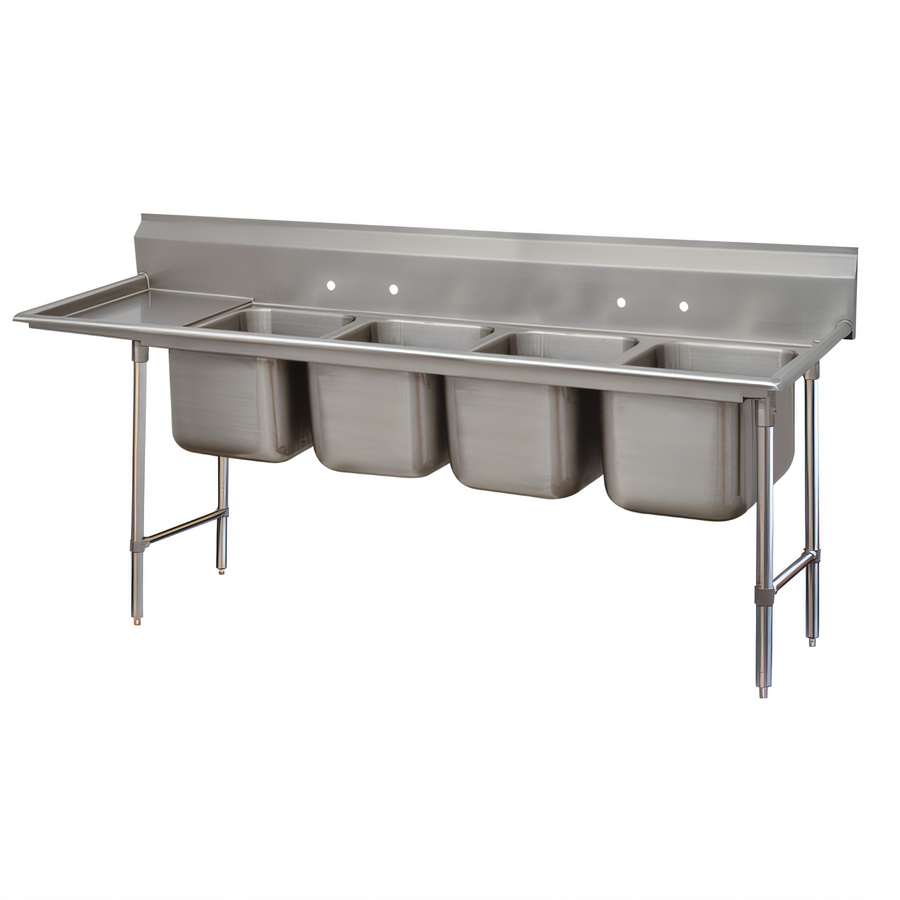

Advance Tabco “Regaline” 4-Compartment Sink with 36" Left Drainboard

16 ga Type 304 Stainless Steel | Model 93-4-72-36L | NSF Listed

Engineered for the rigors of high-volume kitchens, the Regaline series delivers seamless durability, generous workspace, and the sanitation you need to keep service moving. This 114" four-compartment unit combines deep 16" × 20" bowls with a full 36" drainboard—perfect for a classic wash, rinse, sanitize, and air-dry set-up.

Why It Belongs in Your Dish Room

  • Four 12"-deep bowls handle pots, sheet pans, and dinnerware with ease.
  • 36" left-hand drainboard slopes toward the sink, keeping floors and counters dry.
  • All TIG-welded, satin-finished seams for a smooth, snag-free surface that wipes clean fast.
  • 8" high backsplash with tile edge simplifies wall mounting and stops splash-back.
  • 3" interior corner radius speeds up rinsing and sanitation.
  • Open stainless frame with adjustable side crossrails maximizes under-sink clearance.
  • 1 ⅝" Ø tubular legs with 1" adjustable bullet feet level the sink on uneven floors.

Technical Specifications

Overall size 114" L × 28" D
Compartments 4 (16" W × 20" F/B × 12" D each)
Drainboard 36" L, left side
Backsplash 8" H with turned-down tile edge
Material 16 ga Type 304 stainless steel, satin finish
Base style Open frame, side cross-braced
Legs / feet 1 ⅝" Ø stainless legs with 1" adjustable bullet feet
Faucet holes (2) sets on 8" centers  (faucets not included)
Drains (4) 1 ½" IPS basket drains (center-mounted, included)
Approx. weight 238 lb
Certifications NSF
Installation note: Two hot & cold water supplies (½" IPS) and two faucets are required. Waste outlets are 1 ½" IPS. Always verify local code requirements before installing.

Looking for extra faucet holes, corner drains, or custom bowl sizes? Ask about Advance Tabco’s Smart Fabrication™ modifications.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

114.0in

Depth

28.0in

Shipping Weight

238.0lbs

Sink Depth (rim - drain)

12"

Base Type

legs with side crossrails

Overall Length

114" - 129"

Top Stainless Series

300 series

Compartment Width (side - side)

16"

Base Construction

stainless steel

Splash Height

8"

Compartment (front - back)

20"

Drainboards

with left-hand drainboard

Top Gauge

16 gauge

Specifications

Regaline Sink, 4-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 28" F/B x 114" L/R, NSF (requires 2 faucets)
