Advance Tabco 93-4-72-18R Regaline Compartment Sinks
$4,529.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 93-4-72-18R Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 93-4-72-18R Regaline Compartment Sinks
$4,529.00
Unit price
/
Unavailable
Description

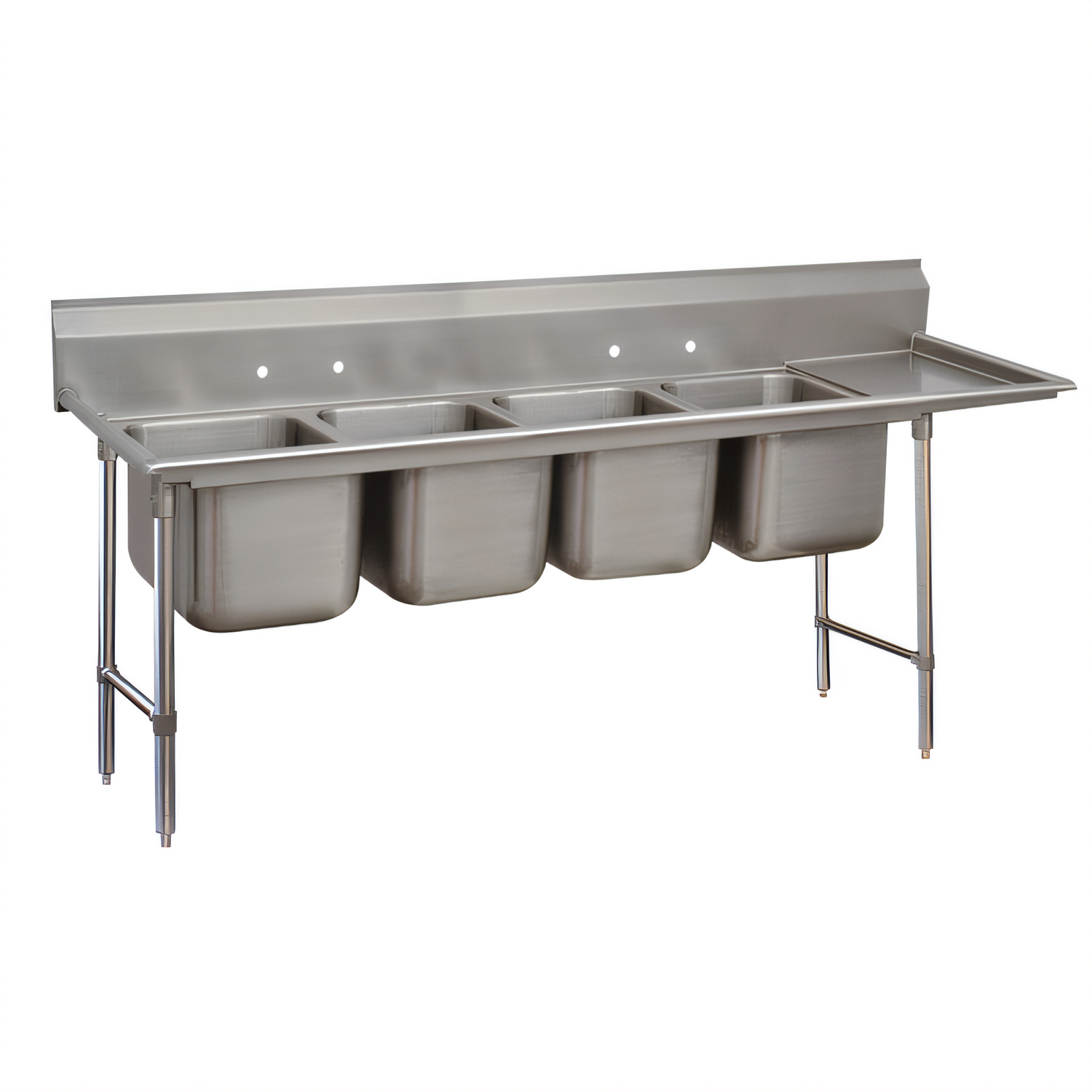

Regaline 4-Compartment Sink w/ Right-Hand Drainboard
Advance Tabco Model 93-4-72-18R (Standard Series)Give your dish room true work-horse durability with this 96" Regaline sink. Fully TIG-welded 16 ga. type 304 stainless steel, it features four spacious compartments and an 18" drainboard that streamlines every wash-rinse-sanitize cycle.
Why You’ll Love It
- Four 20" F/B x 16" W x 12" D bowls handle high-volume warewashing.
- 18" right-hand drainboard keeps clean or soiled wares organized.
- 8" backsplash with 1" tile edge protects walls and simplifies installation.
- Open frame base with adjustable side crossrails maximizes under-sink access.
- 1 5/8" Ø stainless legs with 1" adjustable bullet feet for rock-solid stability on uneven floors.
- Large 3" bowl corner radius for effortless clean-ups.
- NSF listed for food-service sanitation compliance.
At-a-Glance Specs
| Overall Dimensions | 96" L (left-to-right) x 28" F/B x 44" H (to top of backsplash) |
|---|---|
| Bowl Interior (each) | 20" front-to-back x 16" wide x 12" deep (4 identical compartments) |
| Drainboard | 18" long, right-hand |
| Backsplash | 8" H with 2 Faucet holes on 8" centers |
| Material / Gauge | 16 ga. type 304 stainless steel |
| Construction | TIG-welded, satin-blended seams |
| Legs & Bracing | 1 5/8" Ø tubular SS legs, stainless gussets, adjustable side crossrails |
| Feet | 1" adjustable stainless bullet feet |
| Compliance | NSF |
| Shipping Weight (approx.) | 165 lb |
Plumbing & Installation
- Requires two deck-mount faucets on 8" centers (sold separately).
- (4) 1 1/2" IPS basket drains are factory-installed in bowl centers.
- 1/2" hot & cold water supply lines recommended.
- Open design allows floor, wall, or through-floor waste connections.
Heads-up: Faucets, pre-rinse units, and overflow kits are not included. Add compatible Advance Tabco accessories at checkout for a turnkey installation.
Ideal Applications
- Restaurant and hotel dish rooms
- Catering & banquet facilities
- Central commissaries
- School & hospital kitchens
Need a left-hand drainboard, extra cross-bracing, or custom bowl sizes? Ask us about Smart Fabrication™ options from Advance Tabco.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
42.0in
Width
96.0in
Depth
28.0in
Shipping Weight
165.0lbs
Sink Depth (rim - drain)
12"
Base Type
legs with side crossrails
Drainboards
with right-hand drainboard
Compartment (front - back)
20"
Compartment Width (side - side)
16"
Base Construction
stainless steel
Splash Height
8"
Top Stainless Series
300 series
Top Gauge
16 gauge
Overall Length
75" - 97"
Specifications
Regaline Sink, 4-compartment, with right-hand drainboard, 20" front-to-back x 16"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 28" F/B x 96" L/R, NSF (requires 2 faucets)
