Advance Tabco 93-4-72-18L Regaline Compartment Sinks
$4,313.00
Unit price
/
Unavailable
Description

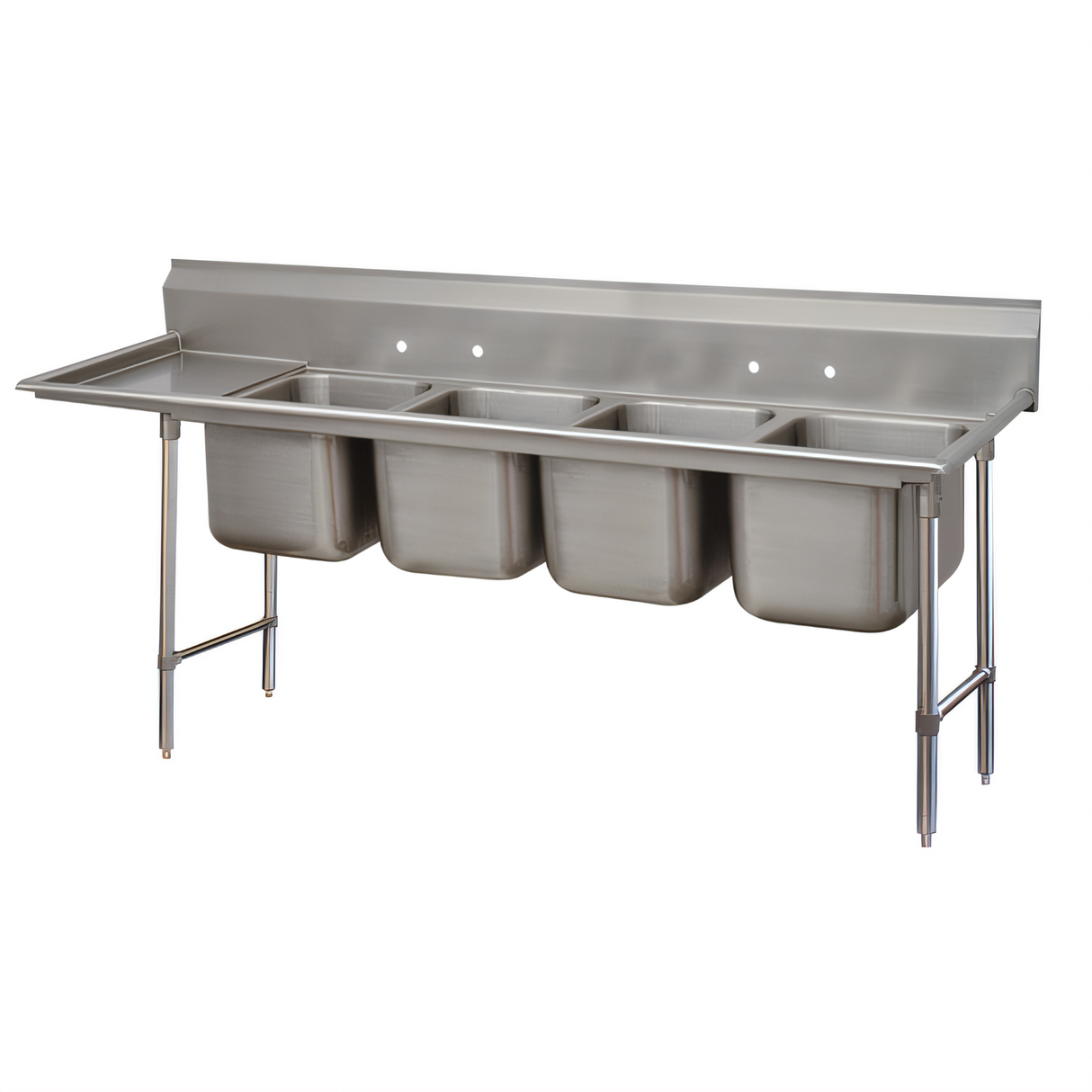

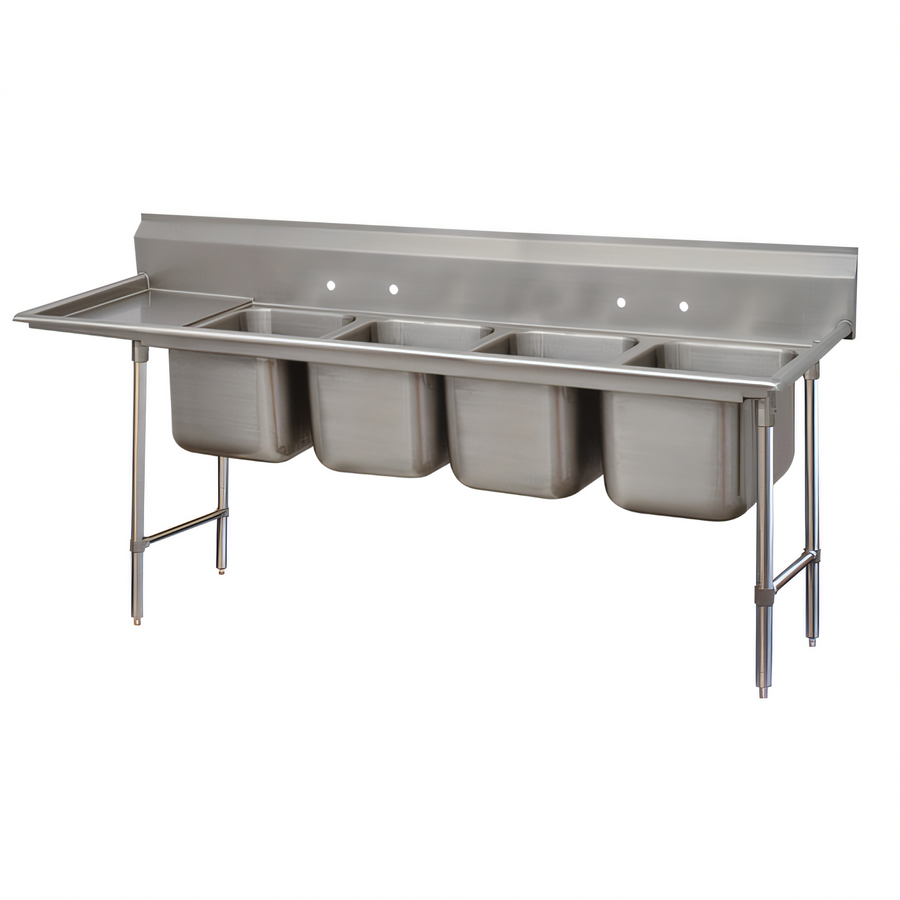

Advance Tabco “Regaline” 4-Compartment Sink with 18" Left Drainboard
Model 93-4-72-18L | Standard 93 SeriesBuilt for demanding ware-washing lines, this NSF-listed Advance Tabco Regaline sink combines four roomy compartments with an integrated left-hand drainboard—giving you the performance of a full dish station in one seamless stainless-steel unit.
Why You’ll Love It
- Heavy-duty 16 ga. type 304 stainless steel resists corrosion and everyday abuse.
- Four deep-drawn bowls (20" F/B × 16" W × 12" D) speed up multi-stage washing and sanitizing.
- 18" left-hand drainboard with splash channels excess water back to the bowls.
- 8" high backsplash with tile edge protects walls and simplifies installation.
- All TIG-welded construction; welds are ground and polished to a sleek satin finish.
- Large 3" radius bowl corners for quick, thorough cleaning.
- Open frame base with adjustable side cross-rails provides rock-solid stability while keeping plumbing accessible.
- 1⅝" Ø tubular stainless-steel legs with 1" adjustable bullet feet—level it anywhere, even on uneven floors.
- Two 1½" IPS stainless-steel basket drains included (centered in bowls).
- Pre-punched 8" on-center faucet holes (two faucets required, sold separately).
Technical Specifications
| Overall Dimensions | 96" L × 28" D × 44" H (to top of 8" backsplash) |
|---|---|
| Bowl Count / Size | 4 bowls – 20" front-to-back × 16" wide × 12" deep |
| Drainboard | 18" left-hand, integrally welded |
| Material & Gauge | 16 ga 304 stainless steel (top, bowls & splash) |
| Backsplash Height | 8" with 2" return at rear |
| Legs / Base | 1⅝" Ø S/S tubular legs, open frame base, side cross-rails, 1" adjustable bullet feet |
| Drain Fittings | (4) 1½" IPS basket drains (included) |
| Faucet Mounting | Deck-mount, 8" centers – 2 faucets required (not included) |
| Certifications | NSF Listed |
| Typical Applications | Dish rooms, commissaries, cafeterias, school kitchens, prep areas |
Supply lines: ½" IPS hot & cold | Waste lines: 1½" IPS
Plumbing rough-in diagrams are available upon request.
Popular Add-Ons (Sold Separately)
- Deck-mounted 8"-OC faucets (pre-rinse or standard gooseneck)
- Poly-Vance cutting boards & sink covers (recessed bowl lip accepts them perfectly)
- Over-shelf for chemical bottles or drying racks
- Lever-handle basket strainers for quick drain control
Heads-up: This sink ships without faucets.
Two 8" on-center deck-mount faucets are required for proper operation.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
42.0in
Width
96.0in
Depth
28.0in
Shipping Weight
165.0lbs
Sink Depth (rim - drain)
12"
Base Type
legs with side crossrails
Compartment Width (side - side)
16"
Compartment (front - back)
20"
Splash Height
8"
Base Construction
stainless steel
Top Stainless Series
300 series
Top Gauge
16 gauge
Drainboards
with left-hand drainboard
Overall Length
75" - 97"
Specifications
Regaline Sink, 4-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 28" F/B x 96" L/R, NSF (requires 2 faucets)
