Advance Tabco  |  Regaline  |  SKU: 93-3-54-24L  |  UPC: 747545108081

Advance Tabco 93-3-54-24L Regaline Compartment Sinks

$3,672.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

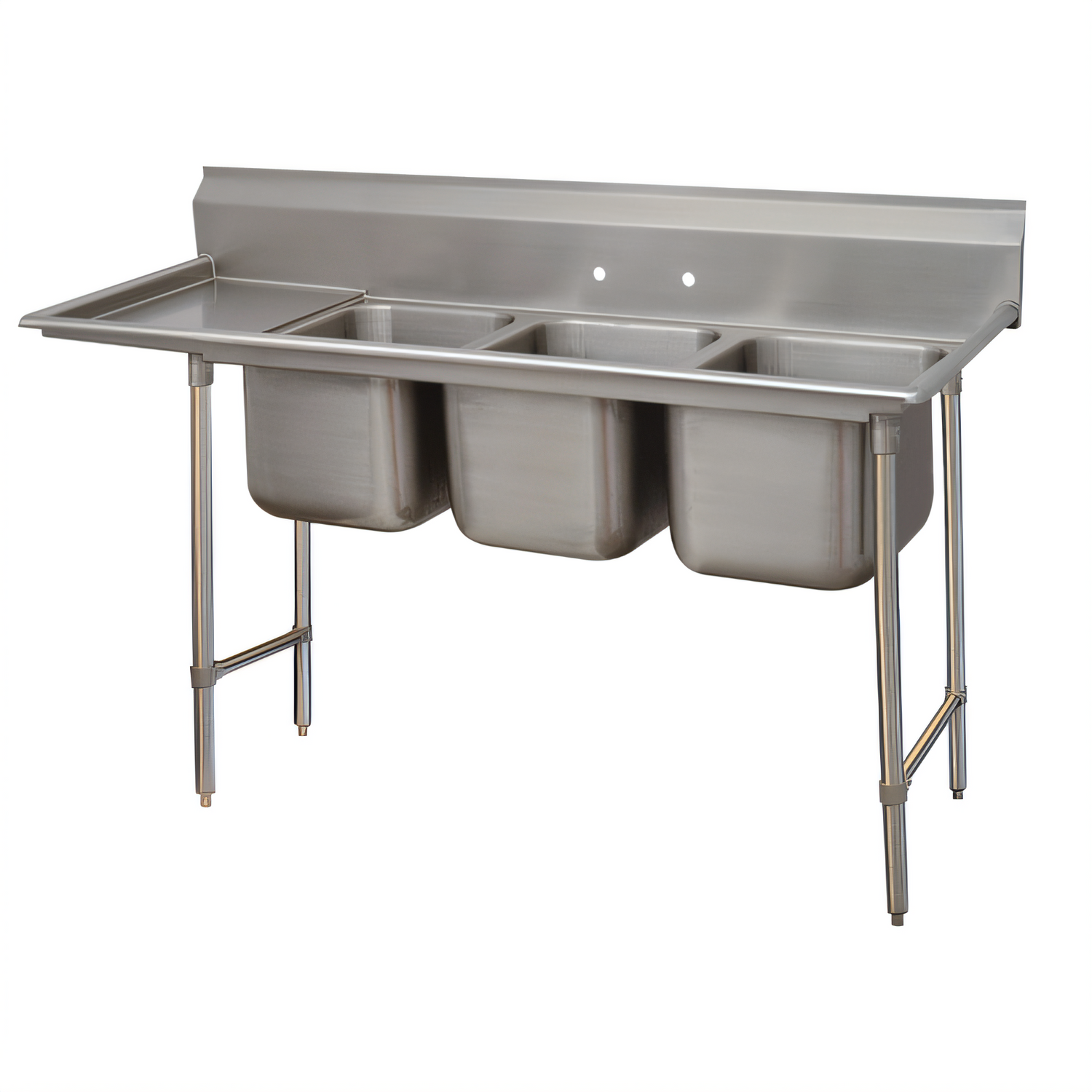

Regaline 3-Compartment Sink with 24" Left Drainboard

Advance Tabco 93-3-54-24 L  |  16 Gauge 304 SS  |  NSF Listed

Engineered for heavy-duty ware-washing, the Advance Tabco Regaline 93 Series pairs rugged 16-gauge type 304 stainless steel with an open-frame base that keeps floors clear and sanitation effortless. Three generously sized bowls, a spacious drainboard and an 8" backsplash equip your staff with everything they need to maintain a fast, hygienic workflow shift after shift.

Why you’ll love it

  • Three 20" F/B × 16" W × 12" D deep-drawn bowls handle high-volume washing, rinsing & sanitising.
  • Integral 24" left-hand drainboard with embossed pitch speeds drying and staging.
  • 8" backsplash with 2" return helps contain splashes and protects surrounding walls.
  • TIG-welded construction with satin-blended seams resists corrosion and simplifies clean-up.
  • Open stainless frame with adjustable side cross rails maximises underneath access for carts or floor drains.
  • 1 ⅝" Ø stainless legs with 1" adjustable bullet feet level the unit on uneven floors.
  • Large 3" interior corner radius for quick spray-down and debris removal.
  • NSF certification assures food-safe design and build quality.

At-a-glance specifications

Model 93-3-54-24 L (left drainboard)
Overall dimensions 84" L × 28" D × 37" H to rolled rim
(45" H to top of backsplash)
Bowl size (3) 20" F/B × 16" W × 12" D
Drainboard 24" L (left side)
Material / gauge 16 ga Type 304 stainless steel
Finish Satin-blended TIG-welded
Faucet holes 3 punched on 8" centers (faucets sold separately)
Drains Three 1 ½" IPS basket-type wastes (included)
Legs / bracing 1 ⅝" Ø SS legs, adjustable side cross-bracing, 1" bullet feet
Shipping weight Approx. 188 lb  / 45 cu. ft.
Compliance NSF certified

Plumbing & installation

  • 1 / 2" IPS hot & cold supply; faucet deck punched on 8" centers.
  • 1 / 2" basket strainers included; 1 / 2" traps / tail pieces by others.
  • Tile-edge perimeter simplifies coved splash or wall tile integration.

Need a different drainboard orientation or bowl size? Ask about Advance Tabco Smart Fabrication™ custom options.

Heads-up: Faucets, pre-rinses, overflow assemblies and plumbing connections are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

84.0in

Depth

28.0in

Shipping Weight

188.0lbs

Drainboards

with left-hand drainboard

Top Gauge

16 gauge

Compartment (front - back)

20"

Overall Length

73" - 84"

Splash Height

8"

Base Type

legs with side crossrails

Compartment Width (side - side)

16"

Top Stainless Series

300 series

Sink Depth (rim - drain)

12"

Base Construction

stainless steel

Specifications

Regaline Sink, 3-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 28" F/B x 84" L/R, NSF
