Advance Tabco 93-23-60-36RL Regaline Compartment Sinks
Description

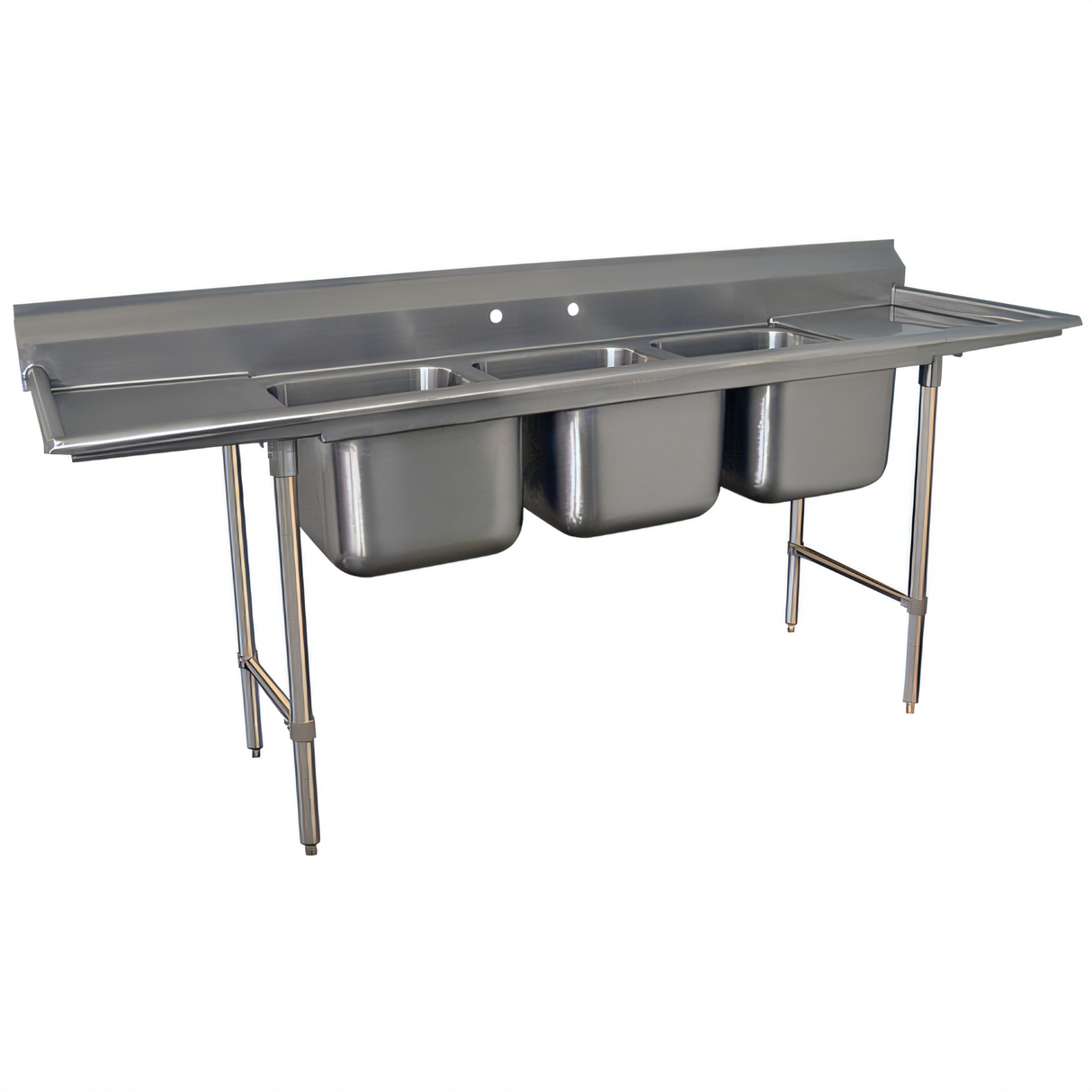

Advance Tabco “Regaline” 3-Compartment Sink w/ Dual 36" Drainboards
Model 93-23-60-36RL | NSF ListedEngineered for high-volume dishrooms, the Regaline 93 Series combines a seamless 16-gauge 304 stainless worktop with deep-drawn bowls and extra-long drainboards. From prep to rinse to sanitize, this open-base sink keeps the workflow moving and the health inspector happy.
Key Features
- (3) 20" × 20" × 12" deep bowls – one-piece, TIG-welded and polished to a satin finish.
- Left & right 36" drainboards with integrated splash; rolled rim contains spills.
- 8" high backsplash with tile edge for quick, watertight installation.
- Heavy-duty 16 ga type 304 stainless steel top, bowls & drainboards.
- Adjustable stainless open frame with 1 5⁄8" Ø legs, side cross-bracing and welded gussets.
- Extra support legs (2 per drainboard) supplied for 36" boards – rock-solid stability.
- 1" stainless bullet feet adjust for up to 1" of floor unevenness.
- (3) 1 ½" IPS stainless basket drains included; centers each bowl.
- Pre-punched 8" on-center faucet holes (faucets sold separately).
- NSF certified for food-service sanitation compliance.
At-a-Glance Specifications
| Series / Construction | Regaline 93 Series – 16 ga 304 stainless steel |
|---|---|
| Compartments | 3 bowls |
| Bowl Size (W × F/B × D) | 20" × 20" × 12" |
| Drainboards | (2) 36" left & right, with splash |
| Overall Dimensions | 139" L × 28" F/B × 34" working height 42" overall height to top of backsplash |
| Backsplash | 8" H with 2" return |
| Legs / Base | 1 5⁄8" Ø S/S tubular legs, side cross-rails, 1" adjustable bullet feet |
| Plumbing Connections | 1 ½" IPS drains (included) | ½" IPS hot & cold water supplies |
| Faucet Holes | (1) set, 8" centers |
| Certifications | NSF |
| Approx. Shipping Weight | 387 lb |
Ideal For
- High-volume restaurants & cafeterias
- Hotel & resort kitchens
- School and university foodservice operations
- Commissaries & ghost kitchens needing continuous wash-rinse-sanitize capacity
Faucets, pre-rinse units, cutting boards and sink covers are available separately. Looking for factory modifications? Ask about Smart Fabrication™ options.
