Advance Tabco 93-23-60-24L Regaline Compartment Sinks
Description

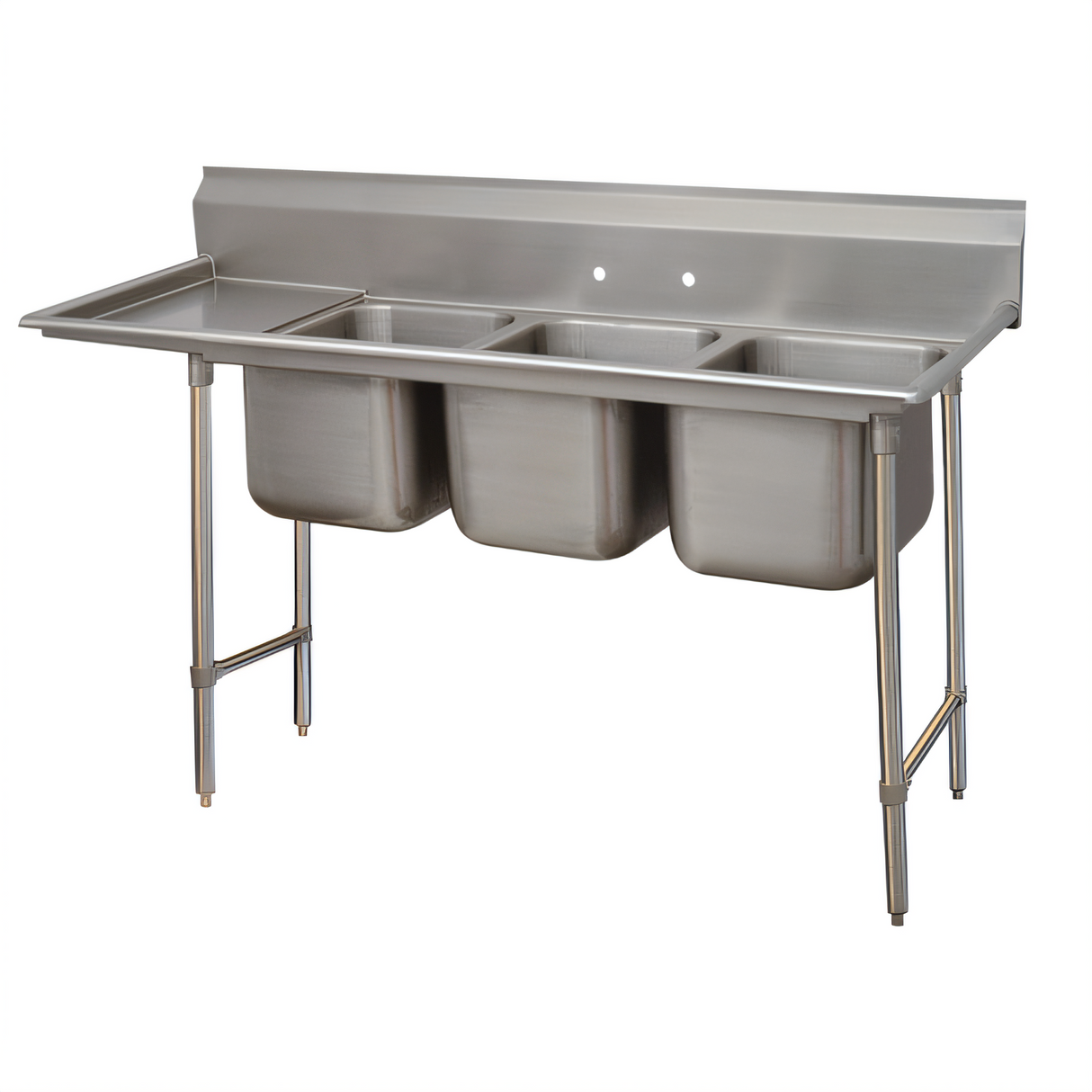

Advance Tabco Regaline 3-Compartment Sink — 24" Left Drainboard
Model 93-23-60-24L | 96" L x 28" D | 16 ga 304 Stainless SteelBuilt for high-volume ware-washing, the Regaline 93 Series combines heavy-duty 16 gauge 304 stainless steel with Advance Tabco’s seamless deep-drawn bowl design. A generous 24" left-hand drainboard and adjustable open-frame base make it the professional’s choice for dish, pot or prep sink stations that need to power through the rush.
Features & Benefits
- Three 20" W x 20" F/B x 12" D compartments for efficient wash-rinse-sanitize flow.
- 24" left drainboard with integral splash and pitched surface for fast water run-off.
- 8" high tile-edge backsplash protects walls and simplifies installation.
- One-piece TIG-welded construction; welds are blended and polished to a satin finish.
- Large 3" radius coved corners promote thorough cleaning and sanitation.
- Sturdy open frame base with 1 5/8" Ø stainless legs, side crossrails & 1" adjustable bullet feet.
- (3) 1 1/2" IPS basket drains centered in each bowl – included.
- Faucet holes on 8" centers (faucet sold separately).
- NSF listed for food-service sanitation compliance.
At-a-Glance Specifications
| Series / Gauge | Regaline 93 Series – 16 ga type 304 SS |
|---|---|
| Compartments | 3 bowls, 20" × 20" × 12" deep |
| Drainboard | 24" L (left-hand), integrally welded with splash |
| Overall Dimensions | 96" L × 28" D × 44" H (to top of backsplash) |
| Backsplash | 8" H with tile edge |
| Legs / Base | 1 5/8" Ø tubular SS legs with adjustable side crossrails & 1" bullet feet |
| Faucet Mount | (2) 1⅛" dia. holes on 8" centers |
| Drains | (3) 1 1/2" IPS basket-type drains (included) |
| Approx. Shipping Weight | ≈ 205 lb |
| Certifications | NSF Certified |
• Supply connections: 1/2" IPS hot & cold.
• Waste outlet: 1 1/2" IPS for each bowl.
• Faucets, pre-rinse units and overflow assemblies are sold separately.
