Advance Tabco  |  Regaline  |  SKU: 93-23-60-18R  |  UPC: 747545107800

Advance Tabco 93-23-60-18R Regaline Compartment Sinks

$4,321.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

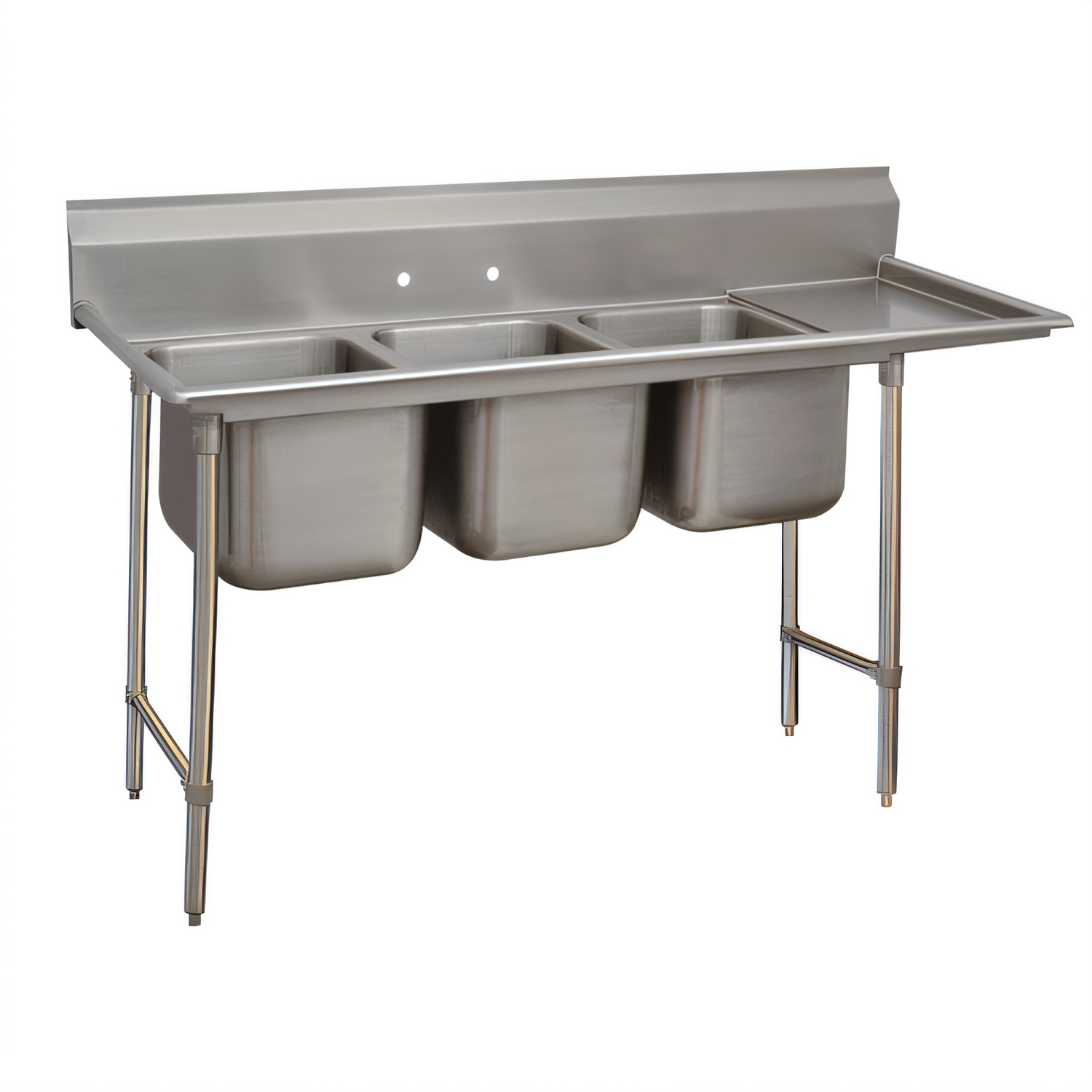

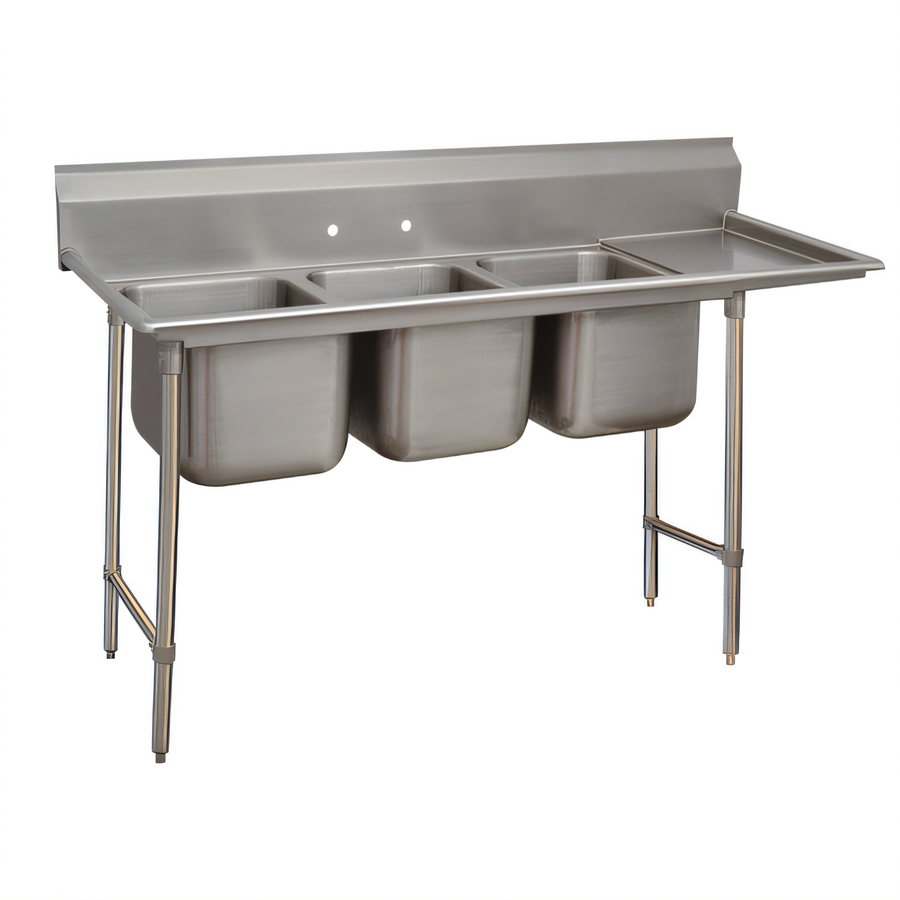

Advance Tabco Regaline 3-Compartment Sink w/ 18" Right Drainboard

Model 93-23-60-18R  •  NSF Listed

Built for everyday abuse in busy dish rooms, the Advance Tabco Regaline Series combines heavy-duty 16 ga. 304 stainless steel with seamless deep-drawn bowls and a generous 8" backsplash. From prep work to ware-washing, this 90" unit gives you three roomy 20" x 20" x 12" compartments plus an 18" right-hand drainboard to keep workflow moving.

Key Features

  • 16 gauge type 304 stainless steel – corrosion-resistant and food-safe.
  • Three 20" F/B x 20" W x 12" D bowls with large 3" radius corners for easy cleaning.
  • One-piece TIG-welded construction; welds blended to a satin finish.
  • Integrated 8" backsplash with tile edge for a snug, sanitary wall seal.
  • 18" right-hand drainboard with stamped drain lines to speed drying.
  • Open stainless frame with adjustable side cross-rails for rock-solid support and easier floor cleaning.
  • 1 5/8" Ø tubular stainless legs with welded gussets and 1" adjustable bullet feet.
  • 1 1/2" IPS basket-type drains centered in each bowl (included).

At-a-Glance Specifications

Series / Construction Regaline 93 Series – TIG welded, 16 ga. 304 SS
Overall Dimensions 90" L × 28" F/B × 44 1/2" H (to top of backsplash)
Compartment Qty. / Size 3 bowls  •  20" F/B × 20" W × 12" D
Drainboard 18" Right-hand, integrally welded
Backsplash Height 8"
Faucet Mount Pre-punched 8" on-center holes (faucet not included)
Drains (3) 1 1/2" IPS stainless basket strainers (included)
Legs / Feet 1 5/8" Ø stainless legs with side cross-bracing & 1" adjustable bullet feet
Approx. Weight 207 lb
Certifications NSF
Important: Faucet(s) and trap are shown for illustration only and are not included with the sink.

Need custom modifications or accessories? Ask us about Advance Tabco Smart Fabrication™ options, including pot-racks, drainboard length changes, and more.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

90.0in

Depth

28.0in

Shipping Weight

207.0lbs

Overall Length

85" - 96"

Top Gauge

16 gauge

Compartment (front - back)

20"

Compartment Width (side - side)

20"

Splash Height

8"

Drainboards

with right-hand drainboard

Base Type

legs with side crossrails

Top Stainless Series

300 series

Sink Depth (rim - drain)

12"

Base Construction

stainless steel

Specifications

Regaline Sink, 3-compartment, with right-hand drainboard, 20" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 28" F/B x 90" L/R, NSF
