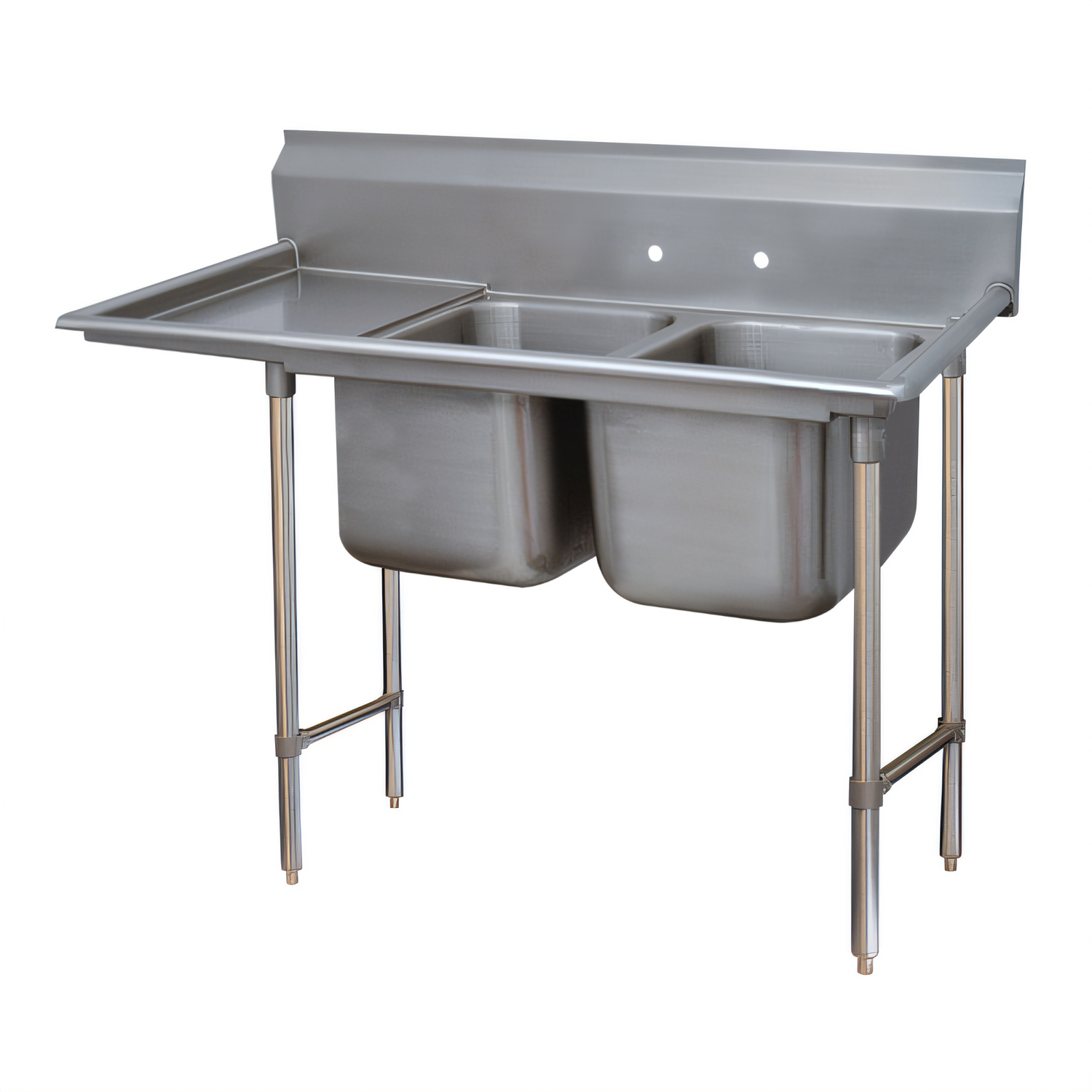

Advance Tabco Regaline 2-Compartment Stainless Steel Sink with Left-Hand Drainboard, 20 x 20 Bowls, 12-Inch Deep, 8-Inch Backsplash

SKU: 93-22-40-36L
GTIN: 747545107756
$3,504.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

Advance Tabco Regaline 2-Compartment Stainless Steel Sink with Left-Hand Drainboard, 20 x 20 Bowls, 12-Inch Deep, 8-Inch Backsplash

Standard 93 Series, 16-Gauge 304 Stainless Steel, Floor Model

Built for heavy-duty prep and dish areas, this 16-gauge 304 stainless steel sink combines two deep bowls, a long left-hand drainboard, and a rugged open-frame base.

  • Two 20" x 20" compartments with 12" sink depth for washing, rinsing, and soaking.
  • 36" left-hand drainboard adds convenient landing and drying space.
  • 16-gauge type 304 stainless steel construction for durability and corrosion resistance.
  • 8" backsplash helps contain splashes and protect the wall.
  • Stainless steel open-frame base with side crossrails and 1" adjustable bullet feet for support and leveling.
  • Includes 1-1/2" IPS basket-type waste drains; faucets are sold separately.

Overall Dimensions:

85.0"W x 28.0"D x 42.0"H

Product Weight:

140.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Two Compartments

Each sink compartment measures 20" front-to-back by 20" side-to-side, with a 12" deep bowl.

Left-Hand Drainboard

36" drainboard provides extra workspace for staging, draining, and drying.

16-Gauge 304 Stainless Steel

Standard 93 Series construction uses durable 16-gauge type 304 stainless steel.

8" Backsplash

Helps protect walls from water splashes behind the sink.

Open-Frame Base

Stainless steel legs with side crossrails provide strength and stability.

Adjustable Bullet Feet

1" adjustable bullet feet help level the sink on uneven floors.

Included Waste Drains

1-1/2" IPS stainless steel basket-type waste drains are included.

Hot and Cold Supply Rough-In

Provided with 1/2" IPS hot and cold supply and faucet holes on 8" centers; faucets are not included.

TIG-Welded Construction

All welded areas are blended to match adjacent surfaces and finished to a satin appearance.

Recessed Bowl Surface

Accommodates Poly-Vance cutting boards and sink covers.

Type Sink
Style 2-Compartment With Left-Hand Drainboard
Installation Type Floor Model
Compartments 2
Compartment Front To Back 20 Inches
Compartment Width 20 Inches
Sink Depth 12 Inches
Drainboard Location Left-Hand
Drainboard Length 36 Inches
Splash Height 8 Inches
Top Gauge 16 Gauge
Material 304 Stainless Steel
Base Construction Stainless Steel
Base Type Legs With Side Crossrails
Finish Satin
Water Inlet Size 1/2 Inches IPS
Drain Connection Size 1-1/2 Inches IPS
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 84 Inches
Shipping Depth 28 Inches
Shipping Height 42 Inches
Shipping Weight 140 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Plumbing PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. Faucets are not included, and the sink is drilled for faucet holes on 8" centers.
Each compartment measures 20" front-to-back by 20" wide and 12" deep.
This model has a left-hand drainboard.
Yes. 1-1/2" IPS stainless steel basket-type waste drains are included.
It is built from 16-gauge type 304 stainless steel.
The backsplash is 8 inches high.
