Advance Tabco 93-22-40-18RL Regaline Compartment Sinks
Advance Tabco 93-22-40-18RL Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

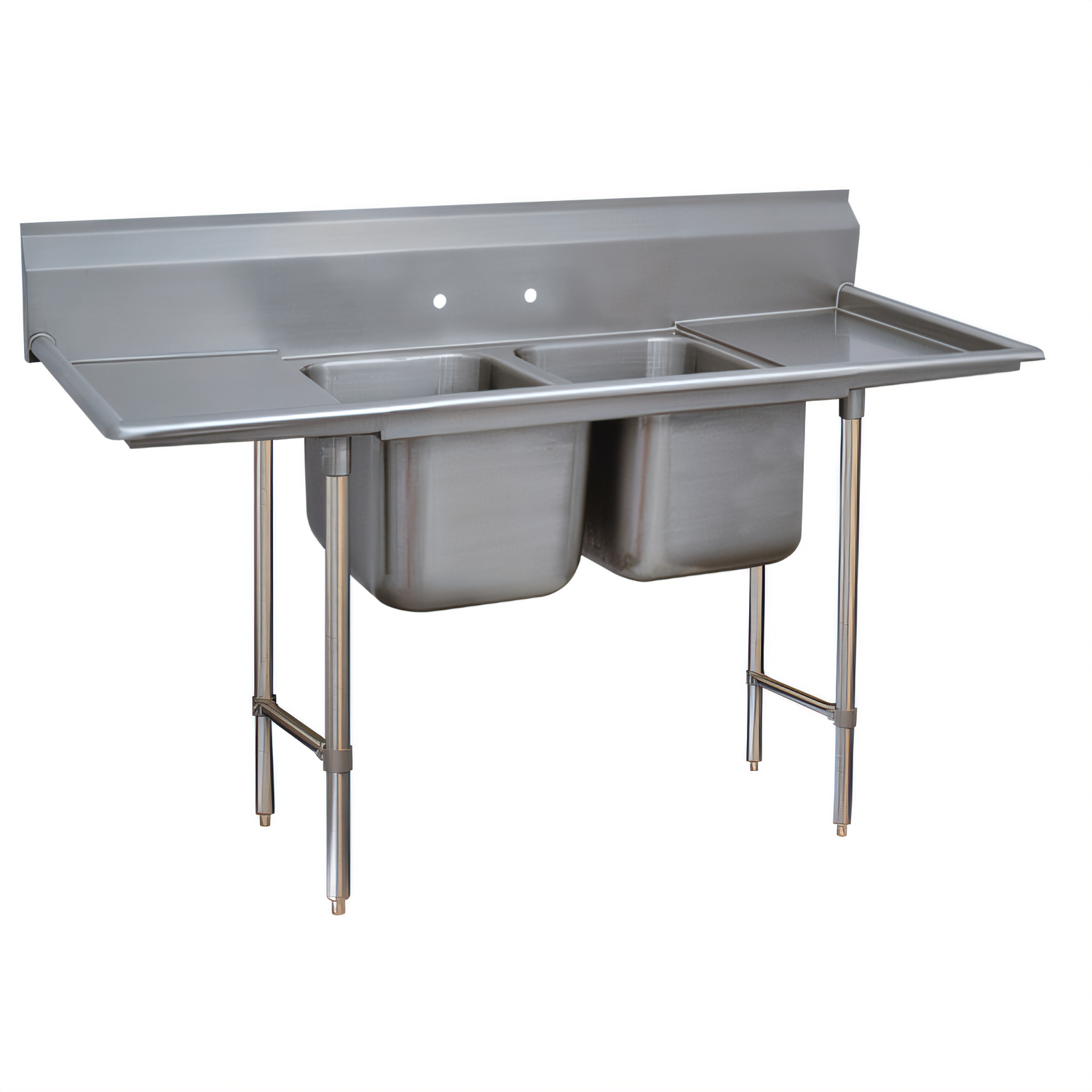

Advance Tabco 93 Series “Regaline” 2-Compartment Sink with Dual 18" Drainboards
Model 93-22-40-18RL | NSF ListedBuilt for busy commercial kitchens, the 93 Series Regaline sink combines rugged 16-gauge 304 stainless steel with Advance Tabco’s signature seamless construction. Two generous 20" × 20" bowls sit between full-size 18" left- and right-hand drainboards—giving you a dedicated wash-, rinse-, and air-dry workflow in one space-saving unit.
Key Features
- Heavy-duty 16 ga. type 304 stainless steel – resists corrosion and stands up to daily abuse.
- TIG-welded construction with satin-blended seams for a smooth, sanitary finish.
- Deep-drawn, one-piece bowls with large 3" radius corners for easy cleaning.
- Integral 18" drainboards on both sides with raised marine edge to contain spills.
- 8" high tile-edge backsplash simplifies wall installation and keeps water off the floor.
- Sturdy open-frame base with 1 5⁄8" O.D. tubular stainless steel legs and side cross-rails.
- 1" adjustable stainless steel bullet feet ensure a level work surface.
- (2) 1 ½" IPS stainless steel basket drains pre-installed in bowl centers.
- Pre-punched 8" on-center faucet holes (faucets sold separately).
- NSF certified for food-service sanitation.
At-a-Glance Specifications
Series / Gauge | 93 Series – 16 ga. 304 SS |
---|---|
Compartments | 2 |
Bowl Size (W × F/B × Depth) | 20" × 20" × 12" |
Drainboards | 18" left & 18" right (integral, ribbed) |
Overall Dimensions (L × F/B) | 81" L × 28" F/B |
Backsplash Height | 8" |
Drain Size | 1 ½" IPS basket drains (included) |
Legs / Feet | 1 5⁄8" Ø SS legs with side cross-braces & 1" adjustable bullet feet |
Faucet Holes | (2) holes on 8" centers |
Shipping Weight | ≈ 147 lb |
Certifications | NSF |
Need a different bowl configuration, cross-bracing, or special cutouts? Ask us about Advance Tabco Smart Fabrication™ custom modifications.
