Advance Tabco  |  SKU: 93-22-40-18R

Advance Tabco 93-22-40-18R Regaline Compartment Sinks

$3,267.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

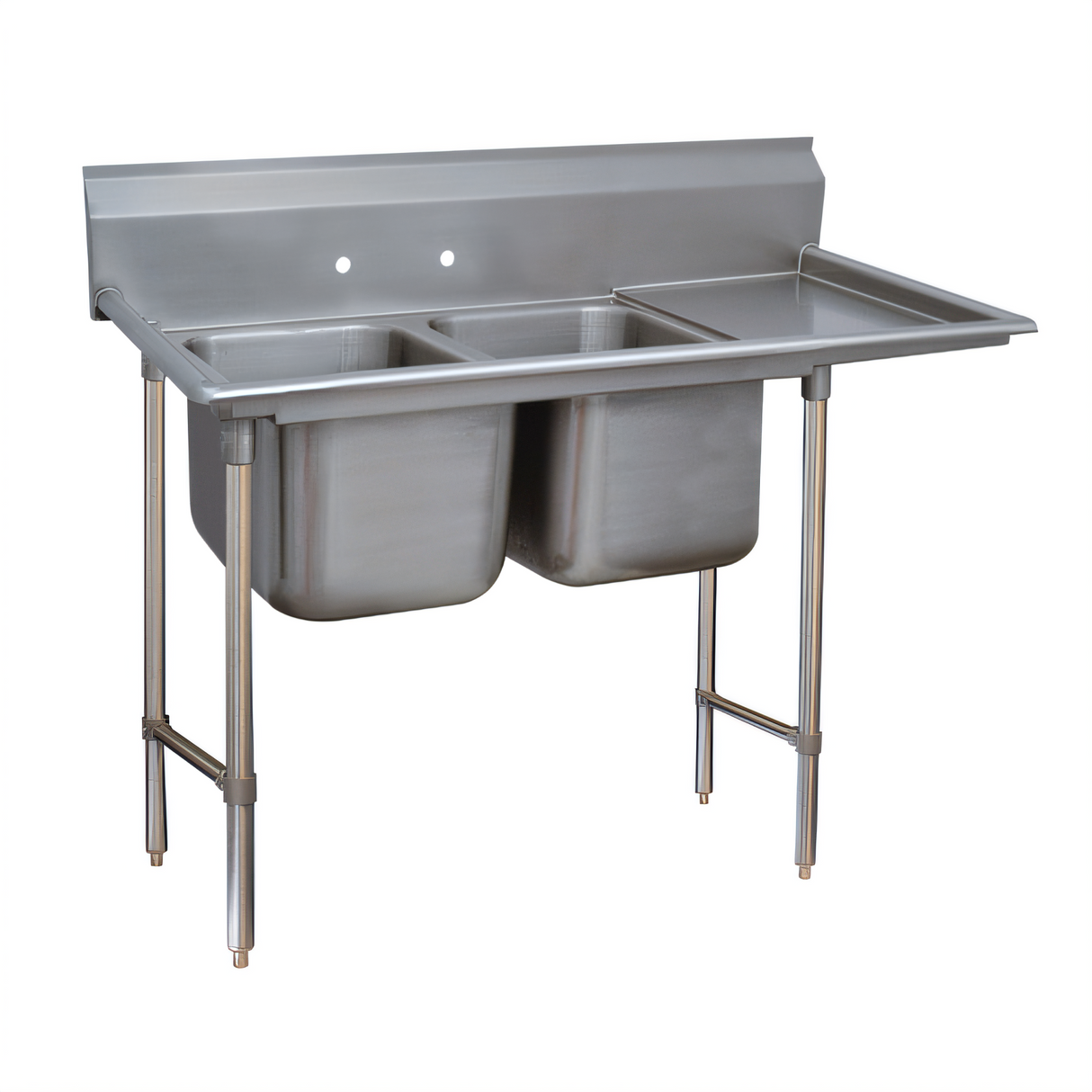

Advance Tabco Regaline 2-Compartment Sink with 18" Right-Hand Drainboard

Model 93-22-40-18R  |  16 ga 304 Stainless Steel  |  NSF Listed

Engineered for high-volume food-service operations, the Regaline 93-Series delivers the rugged construction and thoughtful details you need to keep dishes moving and staff safe. Two spacious 20" × 20" bowls handle prep or ware-washing, while an integral 18" drainboard gives you a dedicated landing area for soiled or clean wares—no extra tables required.

Key Benefits
  • Heavy-duty 16 gauge type 304 stainless steel resists rust, corrosion & chemicals.
  • All TIG-welded seams are blended to a smooth satin finish for easy cleaning.
  • Generous 3" bowl corner radius lets staff wipe down quickly and completely.
  • 8" high backsplash with tile-edge mount contains splashes and speeds installation.
  • Open stainless steel frame with side crossrails maximizes legroom and mop access.
  • 1 ⅝" Ø tubular legs with stainless gussets and 1" adjustable bullet feet for rock-solid stability.
  • Integral right-hand drainboard is pitched for rapid drainage and fewer puddles.
  • (2) 1 ½" IPS stainless basket drains included; faucet holes pre-punched on 8" centers.
  • NSF certified for sanitary use in commercial kitchens.
At-a-Glance Specifications
Compartments 2
Bowl Size (F/B × L/R) 20" × 20"
Bowl Depth 12"
Drainboard 18" long  |  Right-hand
Overall Dimensions 28" F/B × 67" L/R × 42" H (to top of backsplash)
Backsplash Height 8"
Material / Gauge 16 ga type 304 stainless steel
Legs & Base 1 ⅝" Ø stainless legs, side crossrails, open frame
Feet 1" stainless adjustable bullet feet
Faucet Holes (2) Ø1-1/8" holes on 8" centers (faucet not included)
Waste Drains (2) 1 ½" IPS stainless basket strainers (centered in bowls)
Weight Approx. 96 lb
Certification NSF
Heads-up: Faucet, drain piping, and related plumbing connections are sold separately. Be sure to select an 8"-center splash-mount faucet to complete your installation.

Need a different drainboard orientation or accessories such as cutting board covers? Ask our team about custom Advance Tabco Smart Fabrication options.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

67.0in

Depth

28.0in

Shipping Weight

96.0lbs

Compartment (front - back)

20"

Base Construction

stainless steel

Top Gauge

16 gauge

Base Type

legs with side crossrails

Overall Length

63" - 72"

Compartment Width (side - side)

20"

Splash Height

8"

Sink Depth (rim - drain)

12"

Drainboards

with right-hand drainboard

Top Stainless Series

300 series

Specifications

Regaline Sink, 2-compartment, with right-hand drainboard, 20" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 28" F/B x 67" L/R, NSF
