Advance Tabco 93-1-24 Regaline Compartment Sinks
$1,660.00
Unit price
/
Unavailable
Description

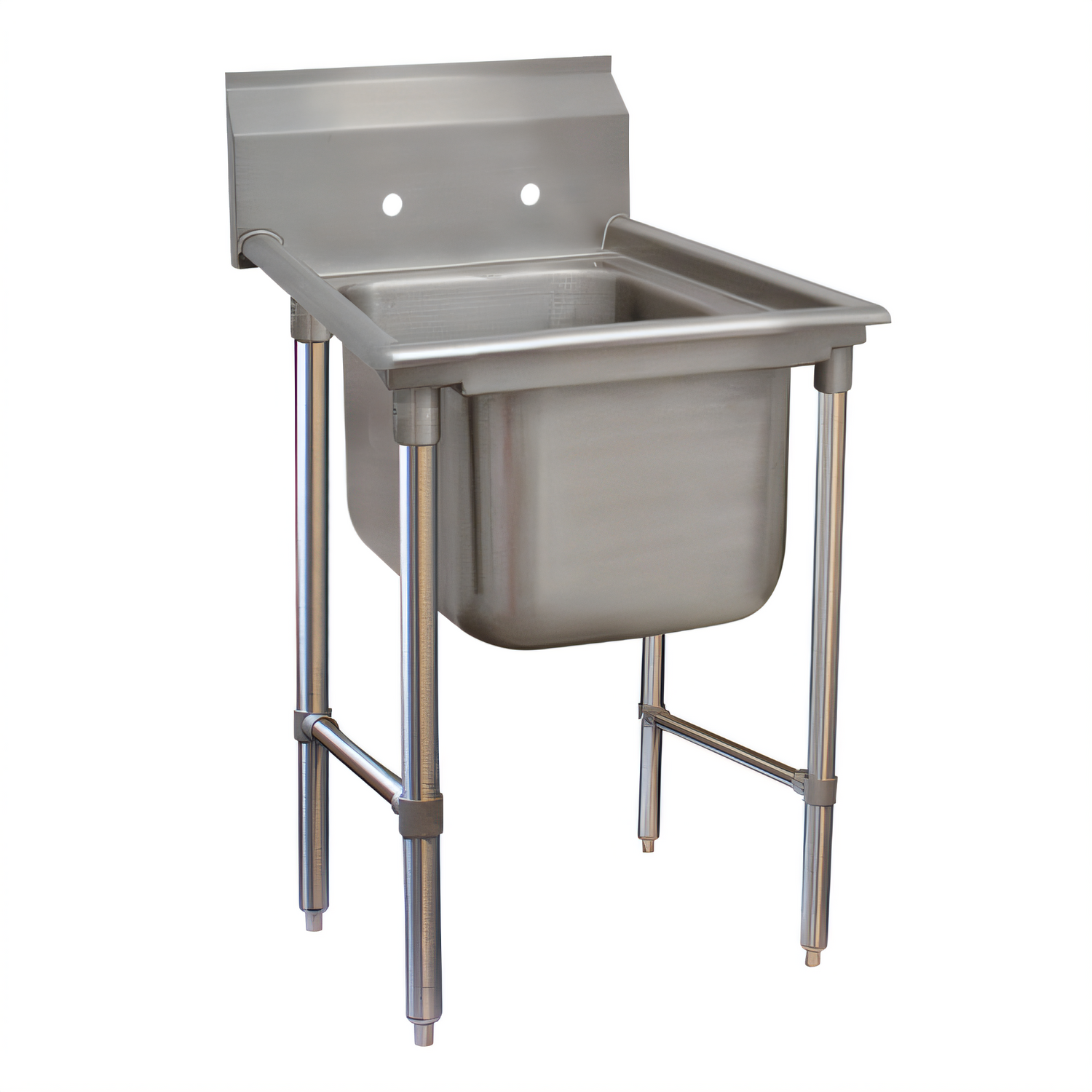

Advance Tabco Regaline 1-Compartment Sink – 16" × 20" Bowl
Standard 93 Series • Model 93-1-24 • NSF ListedBuilt for busy commercial kitchens, the Regaline 1-compartment sink combines heavy-duty 16 ga. 304 stainless steel with a space-saving 27" footprint, giving you a rugged, easy-to-clean workhorse that fits almost anywhere.
Key Features
- Deep-drawn bowl: 16" W × 20" F/B × 12" D with generous 3" radius corners for fast wipe-downs
- 8" high backsplash with tile edge simplifies wall sealing and keeps water where it belongs
- Open stainless steel frame base with side crossrails adds strength while leaving under-sink clearance
- 1 5/8" Ø tubular stainless steel legs with welded gussets for long-term rigidity
- 1" adjustable stainless steel bullet feet level the sink on uneven floors
- Pre-punched 8"-on-center faucet holes (1/2" IPS hot & cold)
- 1 1/2" IPS stainless steel basket drain included and factory-installed
- Full TIG-welded construction; welds are blended to a uniform satin finish
- NSF certified for food-service sanitation
Specifications
| Series / Model | Regaline 93 Series / 93-1-24 |
|---|---|
| Number of Compartments | 1 |
| Bowl Dimensions (L × F/B × D) | 16" × 20" × 12" |
| Overall Dimensions (L/R × F/B) | 27" × 28" |
| Backsplash Height | 8" |
| Material | 16 ga. type 304 stainless steel |
| Legs / Bracing | 1 5/8" Ø S/S legs with side crossrails |
| Feet | 1" adjustable S/S bullet feet |
| Drain | 1 1/2" IPS S/S basket drain (centered) |
| Faucet Holes | 8" centers, 1/2" IPS |
| Shipping Weight | ≈ 62 lb. |
| Certifications | NSF |
Faucet, supply lines and P-trap are not included.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
42.0in
Width
27.0in
Depth
28.0in
Shipping Weight
62.0lbs
Base Construction
stainless steel
Base Type
legs with side crossrails
Overall Length
24" - 35"
Splash Height
8"
Sink Depth (rim - drain)
12"
Compartment Width (side - side)
16"
Compartment (front - back)
20"
Top Gauge
16 gauge
Drainboards
without drainboards
Top Stainless Series
300 series
Specifications
Regaline Sink, 1-compartment, 20" front-to-back x 16" wide sink compartment, 12" deep, with 8" high splash, stainless steel open frame base, side crossrails, 1" adjustable bullet feet, 16 gauge 304 stainless steel, overall 28" F/B x 27" L/R, NSF
