Advance Tabco 93-1-24-36RL Regaline Compartment Sinks
$2,638.00
Unit price
/
Unavailable
Description

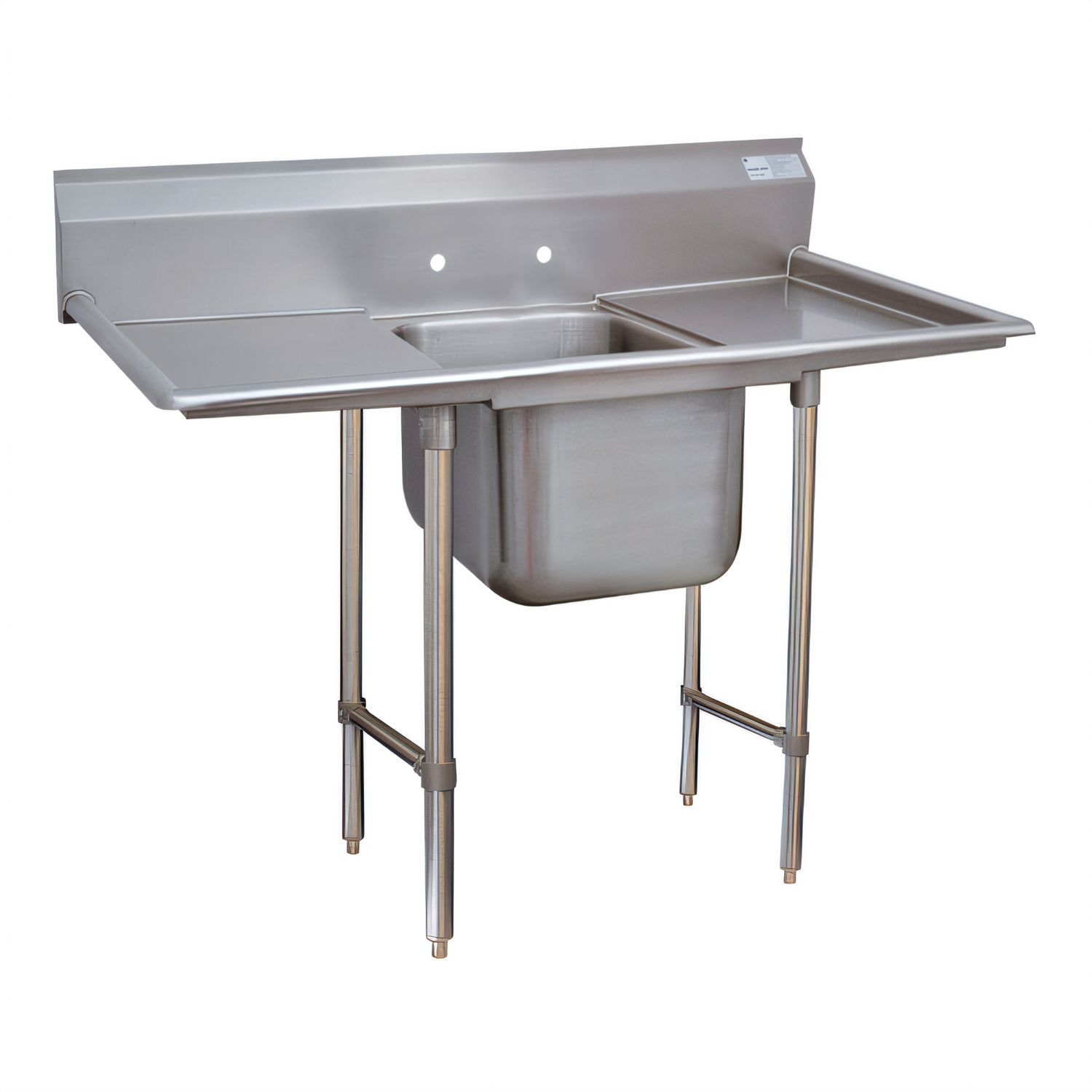

Advance Tabco Regaline 1-Compartment Sink with Dual 36" Drainboards
Model 93-1-24-36RL | NSF ListedBuilt for high-volume ware-washing, prep, or pot-scrubbing applications, the Regaline 93-1-24-36RL combines a spacious single bowl with extra-long drainboards on both sides—giving your kitchen the rugged durability and workflow efficiency it needs every day.
Key Features
- 16 ga. type 304 stainless steel top, bowl & drainboards for superior corrosion resistance.
- Deep-drawn 16" W × 20" F/B bowl, 12" working depth & 3" radius corners for easy cleaning.
- (2) integral 36" drainboards with embossed drain lines—ideal for high-capacity soiled & clean dish staging.
- 8" backsplash with tile edge and 8" on-center faucet holes (faucet sold separately).
- Open tubular base with 1 5/8" Ø stainless steel legs, side cross-bracing & leg clamps.
- (4) additional support legs—one under each oversized drainboard—to eliminate deflection.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- All TIG-welded construction; welds blended to a sleek satin finish.
- 1 ½" IPS basket drain (centered) included.
At-a-Glance Specifications
| Overall dimensions | 90" L × 28" F/B |
|---|---|
| Bowl size (1 compartment) | 16" W × 20" F/B × 12" D |
| Drainboard size | (2) 36" L drainboards, left & right |
| Backsplash | 8" H with tile edge & 8" O.C. faucet holes |
| Working height | 34" to rolled rim (42" to top of backsplash) |
| Material / gauge | 16 ga. 304 stainless steel |
| Base style | Open frame, side cross-bracing, 1 5/8" Ø legs |
| Feet | 1" adjustable stainless steel bullet feet |
| Drain connection | 1 ½" IPS basket drain (included) |
| Shipping weight | Approx. 134 lb |
| Certifications | NSF |
Ideal Applications
- High-volume dishrooms & pot-sink stations
- School, hospital & hotel kitchens
- Commissary or ghost-kitchen prep areas
- Produce or seafood rinsing stations
Note: Faucet, overflow fittings, and plumbing traps are shown for illustration only and are sold separately.
Need custom bowl sizes, faucets, or accessories? Ask about Advance Tabco Smart Fabrication™ solutions.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
42.0in
Width
90.0in
Depth
28.0in
Shipping Weight
134.0lbs
Base Type
legs with side crossrails
Drainboards
with left & right-hand drainboards
Splash Height
8"
Base Construction
stainless steel
Compartment Width (side - side)
16"
Compartment (front - back)
20"
Top Gauge
16 gauge
Sink Depth (rim - drain)
12"
Overall Length
73" - 108"
Top Stainless Series
300 series
Specifications
Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboards, 16 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 90" L/R, NSF
