Advance Tabco  |  Regaline  |  SKU: 93-1-24-24RL  |  UPC: 747545107381

Advance Tabco 93-1-24-24RL Regaline Compartment Sinks

$2,459.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

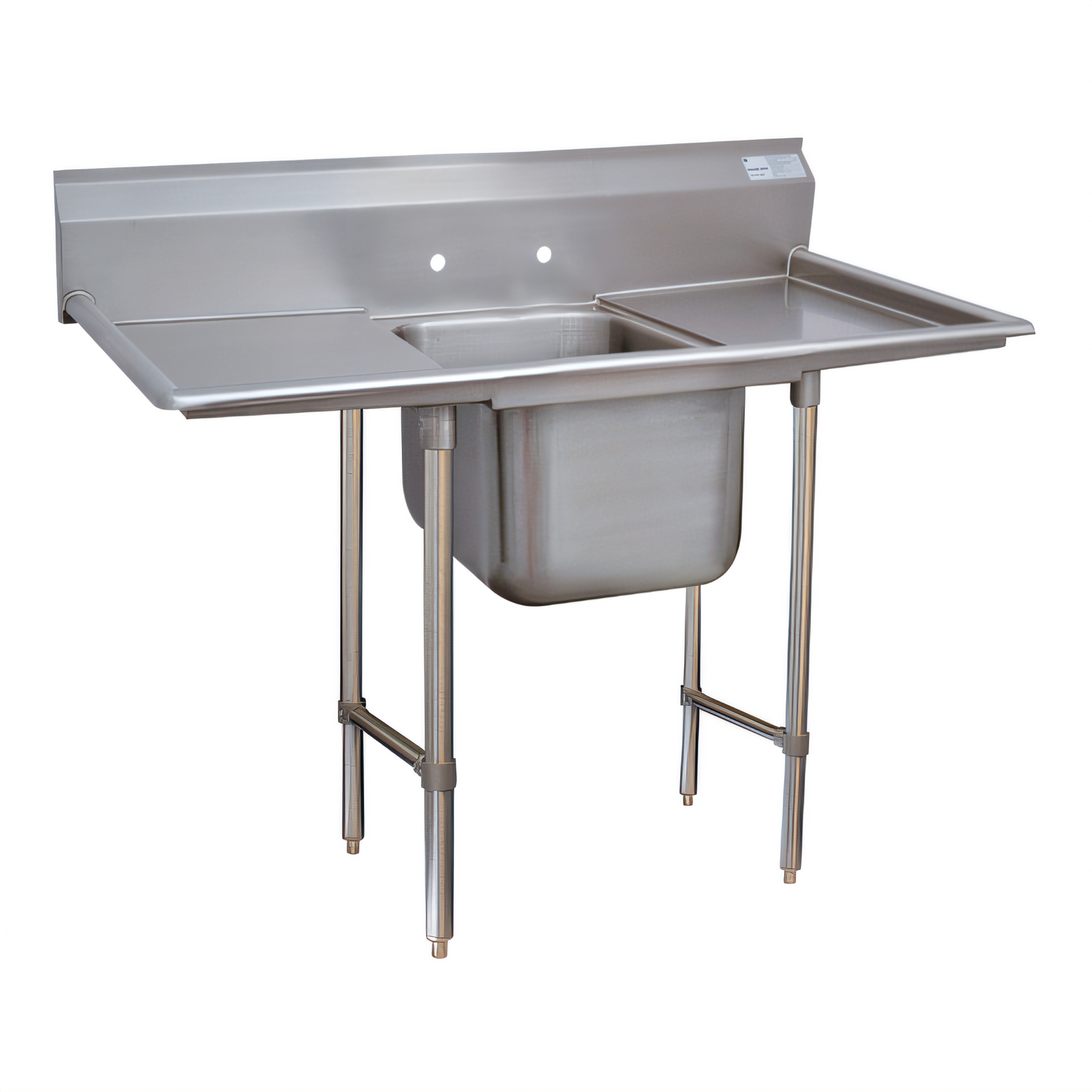

Advance Tabco Regaline 1-Compartment Sink with Dual 24" Drainboards

66" L × 28" F/B • 16 ga 304 Stainless Steel • NSF Listed

Built for high-volume kitchens that refuse to compromise on durability, this Regaline series sink combines a deep 16" × 20" bowl with generous drainboards on both sides—all in heavy-duty 16-gauge type 304 stainless steel. From soaking hotel pans to air-drying glassware, it delivers the rugged performance and hygienic design food-service pros demand.

Why You’ll Love It

  • Deep-drawn bowl: 20" front-to-back × 16" wide × 12" deep with easy-clean 3" radius corners.
  • Dual 24" integral drainboards are pitch-formed for rapid drainage and faster turn-around.
  • 8" backsplash with tile edge & 2" return keeps walls dry and installs flush against wall surfaces.
  • All-TIG-welded seams blended to a smooth, satin finish—no crevices for food soil to hide.
  • Open frame base with 1⅝"-diameter stainless legs, gussets and adjustable side crossrails for rock-solid stability.
  • 1" stainless bullet feet level the unit on uneven floors.
  • Pre-punched 8"-on-center faucet holes fit most commercial deck-mount faucets (sold separately).
  • 1½" IPS basket-type drain included; ready for connection to your plumbing line.
  • NSF certified for food-contact safety.

Product Specifications

Series / Gauge Regaline 93 Series  |  16-gauge type 304 SS
Compartments One (1)
Bowl Interior (L × F/B × D) 16" × 20" × 12"
Drainboards 24" left & 24" right (integral)
Backsplash Height 8"
Overall Dimensions 66" long × 28" front-to-back
Work Height 34" to rolled rim (adjustable)
Faucet Holes (2)  1⅛" dia. on 8" centers
Drain Outlet 1½" IPS, centered in bowl
Feet 1" adjustable stainless bullet feet
Certifications NSF

Looking for matching faucets, scrap baskets, or custom modifications? Contact us for Regaline-approved accessories and Smart Fabrication™ options.

Important: Faucet, trap and installation hardware are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

66.0in

Depth

28.0in

Shipping Weight

95.0lbs

Base Type

legs with side crossrails

Overall Length

63" - 72"

Splash Height

8"

Drainboards

with left & right-hand drainboards

Compartment Width (side - side)

16"

Base Construction

stainless steel

Top Gauge

16 gauge

Compartment (front - back)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboards, 16 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 66" L/R, NSF
