Advance Tabco  |  Regaline  |  SKU: 93-1-24-18RL  |  UPC: 747545107350

Advance Tabco 93-1-24-18RL Regaline Compartment Sinks

$2,382.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

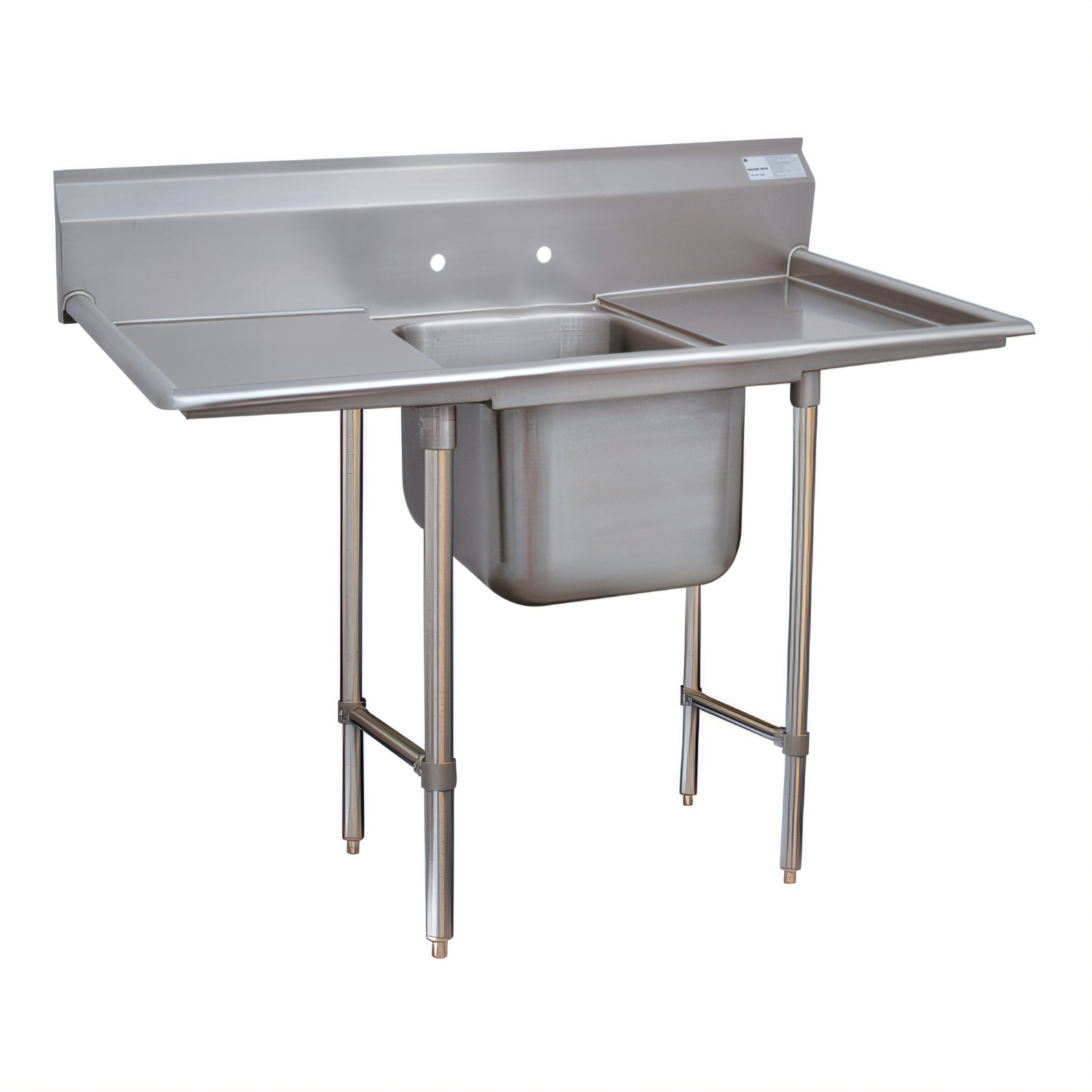

Advance Tabco “Regaline” 93-1-24-18RL One-Compartment Sink with Dual 18" Drainboards

54" L x 28" D • 16 ga 304 Stainless Steel • NSF Listed

Built for busy commercial kitchens that need a reliable, all-in-one wash and landing station, the Regaline 93-1-24-18RL pairs Advance Tabco’s legendary bowl construction with generous drainboard space on both sides. The result is a compact 54" footprint that streamlines dishwashing, prep, and cleanup without sacrificing durability.

Key Benefits
  • 16 ga type 304 stainless steel bowl, drainboards, and top for everyday heavy use.
  • Deep-drawn bowl with 3" radius corners for easy cleaning and improved drainage.
  • (2) 18" welded drainboards—left & right—for efficient soiled and clean landing areas.
  • 8" integral backsplash with 8"-on-center faucet holes; tiled edge simplifies wall installation.
  • Open tubular base with adjustable side cross-bracing for rock-solid stability.
  • 1 5/8" Ø stainless steel legs with stainless gussets and 1" adjustable bullet feet to level on uneven floors.
  • TIG-welded construction; welds are blended to a uniform satin finish.
  • Includes 1 ½" IPS basket-type drain—no extra purchase needed.
  • NSF certified for sanitation compliance.
Specifications
Manufacturer Advance Tabco
Series / Model Regaline 93 Series / 93-1-24-18RL
Compartments 1
Bowl Size (W × F/B × D) 16" × 20" × 12"
Drainboards (2) 18" L — left & right
Overall Dimensions 54" L × 28" D × 34" H (rim) / 42" H (to top of backsplash)
Backsplash Height 8"
Faucet Centers 8" O.C. (faucet not included)
Material Thickness 16 ga (1.6 mm) 304 stainless steel
Legs / Feet 1 5/8" Ø S/S legs with adjustable side crossrails & 1" bullet feet
Drain Connection 1 ½" IPS basket-type (included)
Shipping Weight ≈ 82 lb / 37 kg
Certifications NSF

Faucet, pre-rinse unit, cutting boards, and sink covers are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

54.0in

Depth

28.0in

Shipping Weight

82.0lbs

Base Type

legs with side crossrails

Overall Length

54" - 62"

Splash Height

8"

Drainboards

with left & right-hand drainboards

Compartment Width (side - side)

16"

Base Construction

stainless steel

Top Gauge

16 gauge

Compartment (front - back)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboards, 16 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 54" L/R, NSF
