Advance Tabco 93-1-24-18L Regaline Compartment Sinks
Description

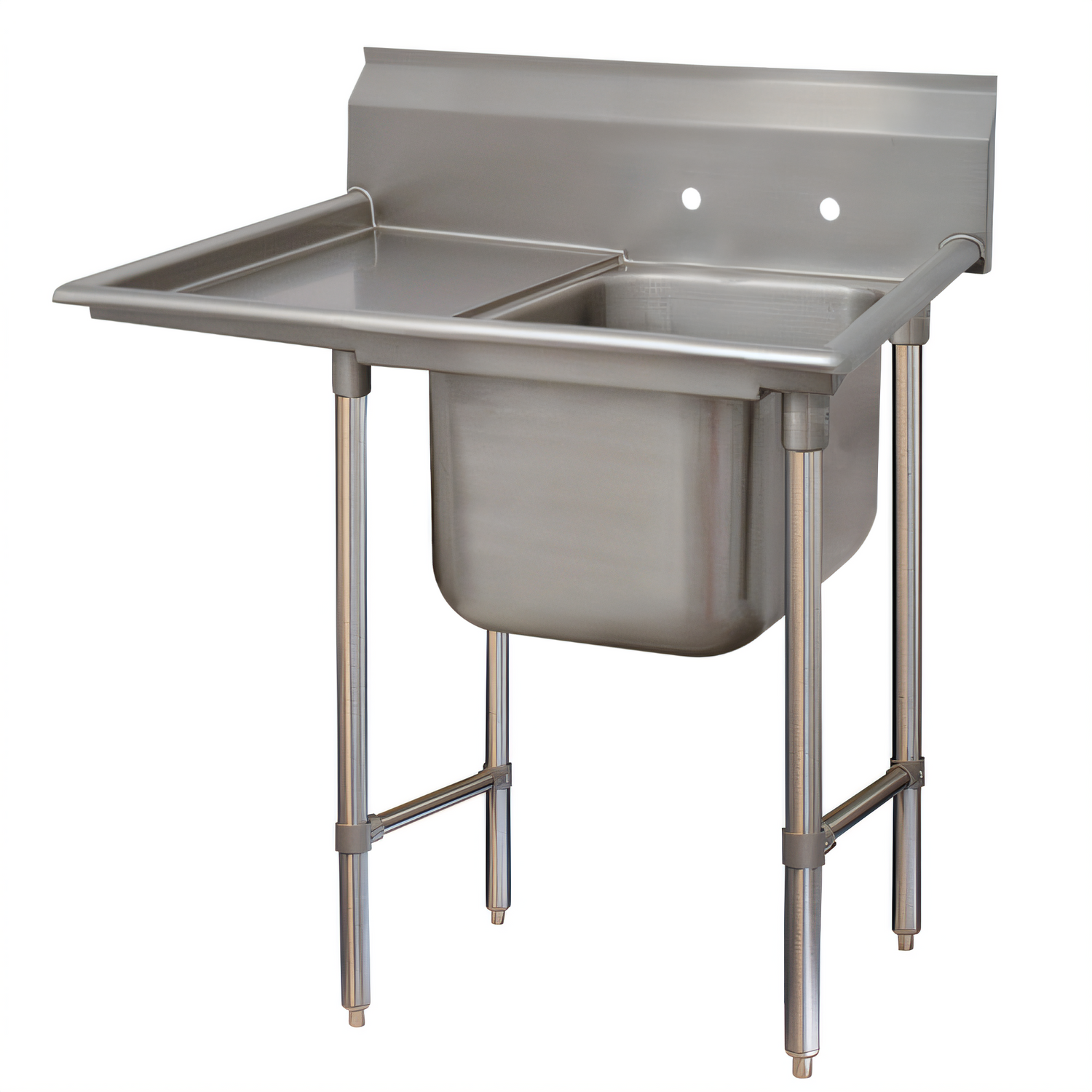

Advance Tabco Regaline 1-Compartment Sink with 18" Left Drainboard
Standard 93 Series · 16 gauge 304 SS · NSF ListedEngineered for tight dish rooms, prep lines and mobile kitchens, the Advance Tabco Regaline one-compartment sink delivers rugged durability in a compact 40" footprint. A generous 20" front-to-back bowl handles everything from sheet-pans to produce, while the integrated 18" left-hand drainboard keeps workflow moving and counters dry.
Why You’ll Love It
- Deep-drawn bowl: 16" W × 20" F/B × 12" D with easy-clean 3" radius corners
- 18" pitched drainboard on the left for rapid draining & staging
- 8" backsplash with 2" return & tile edge for a watertight wall seal
- TIG-welded, satin-polished seams—no crevices for debris to hide
- Open stainless frame with side crossrails for maximum floor clearance
- 1⅝" Ø tubular SS legs, stainless gussets & 1" adjustable bullet feet
- Pre-punched 1⅛" faucet holes on 8" centers (faucet sold separately)
- 1½" IPS stainless basket drain supplied & installed
At-a-Glance Specs
| Overall size | 40" L/R × 28" F/B × ≈44" H (to top of backsplash) |
|---|---|
| Bowl dimensions | 16" W × 20" F/B × 12" D |
| Drainboard | 18" L, left-hand, ⅛" per-foot pitch |
| Backsplash height | 8" |
| Material thickness | 16 gauge type 304 stainless steel |
| Legs / feet | 1⅝" Ø SS legs, side crossrails, 1" adjustable bullet feet |
| Faucet holes | (2) on 8" centers, 1⅛" Ø |
| Drain | 1½" IPS SS basket drain (included) |
| Certifications | NSF |
Perfect For
- Bar glass washing & soaking stations
- Vegetable & seafood prep areas
- Food trucks, ghost kitchens & cafés with limited space
Need a different bowl size, right-hand drainboard or extra cross-bracing? Ask about Advance Tabco’s Smart Fabrication™ custom options.
