Advance Tabco 9-OPC-84DR Mop Sinks
$6,484.00
Unit price
/
Unavailable
Description

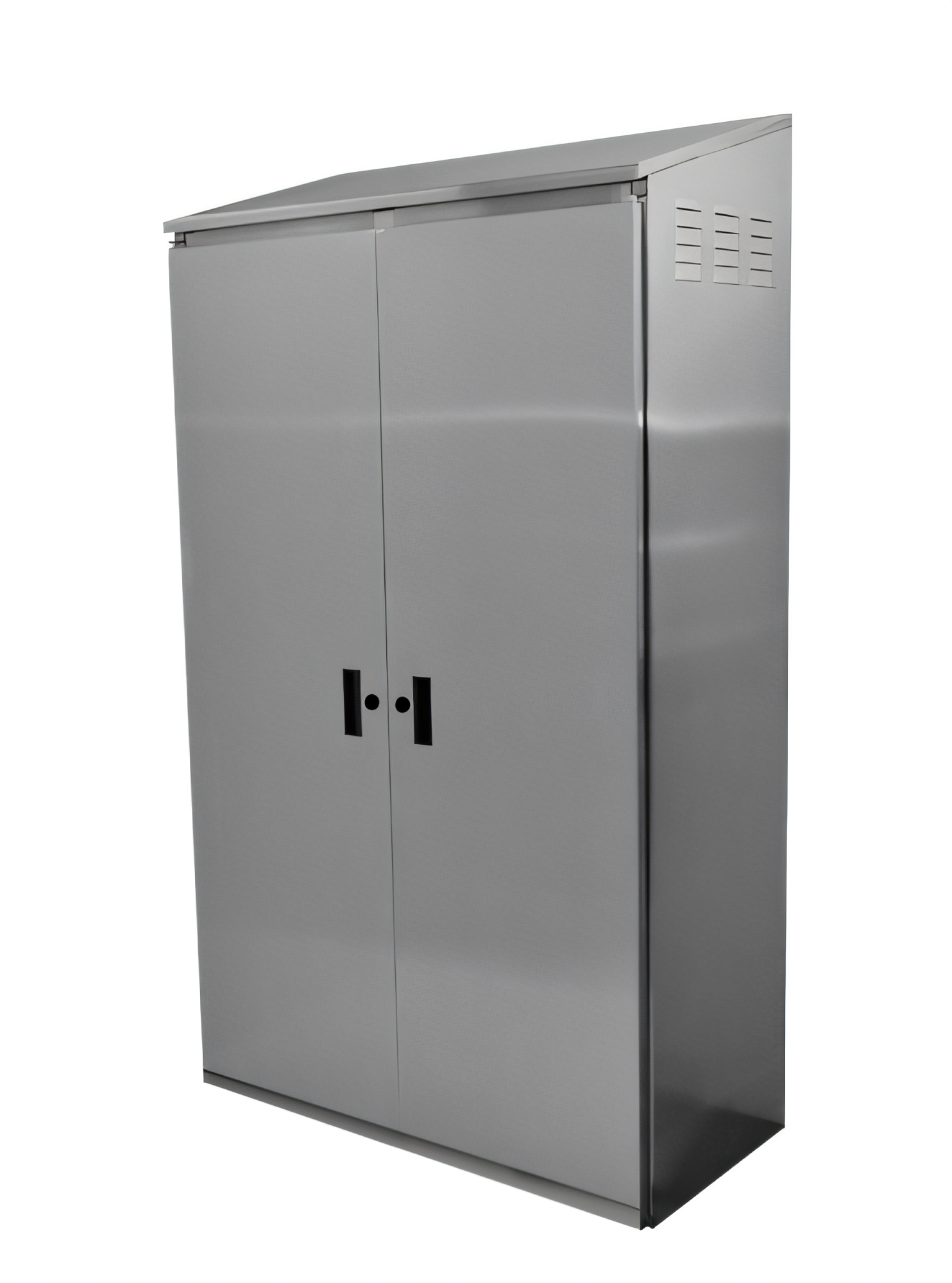

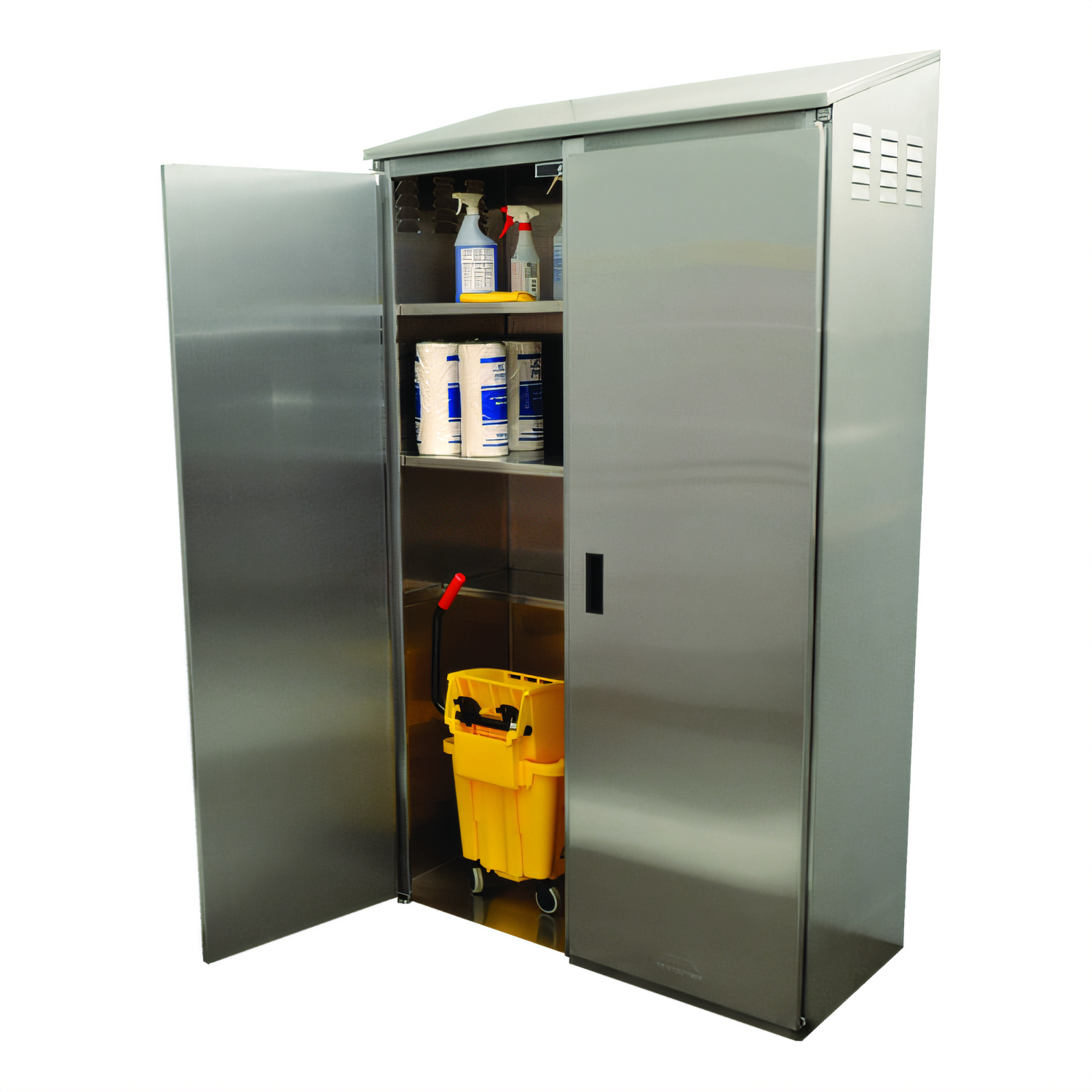

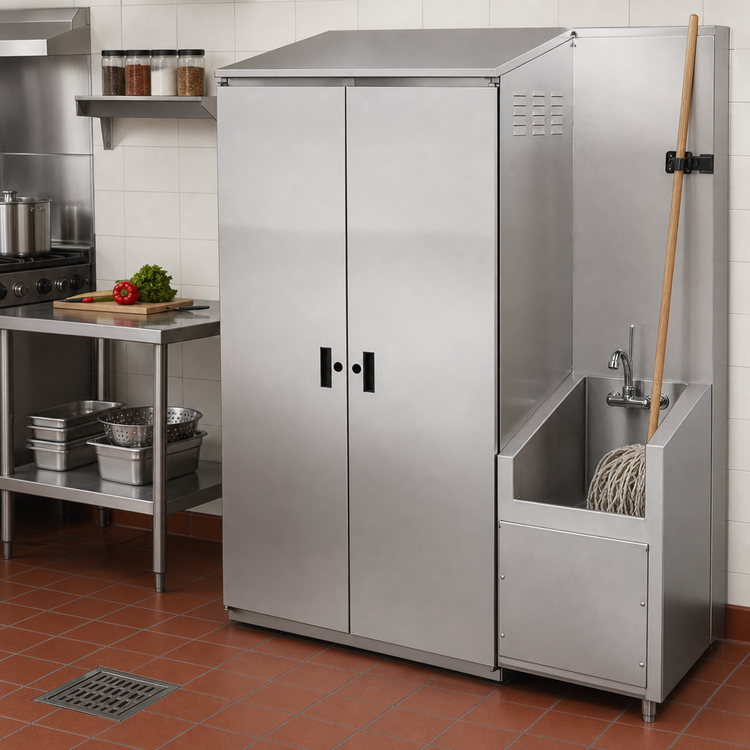

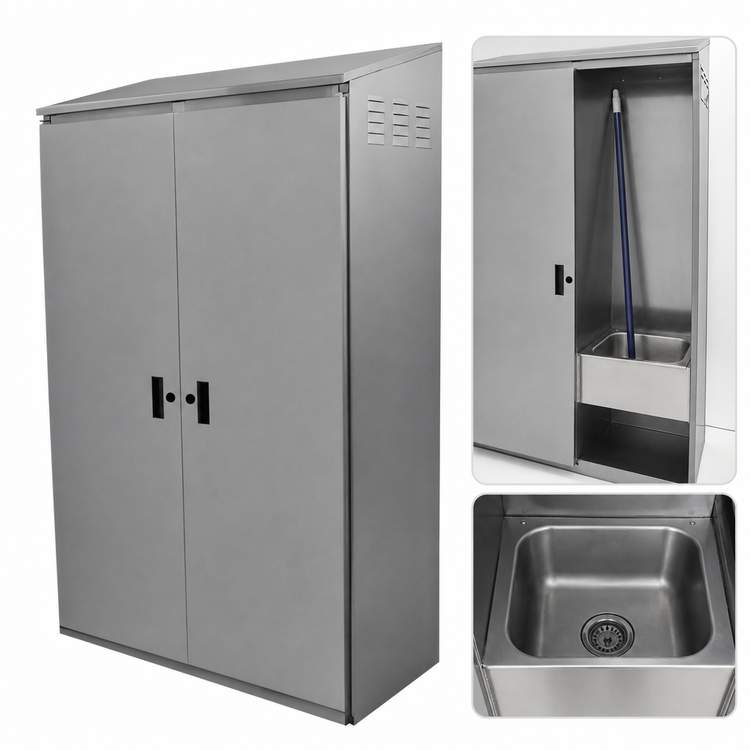

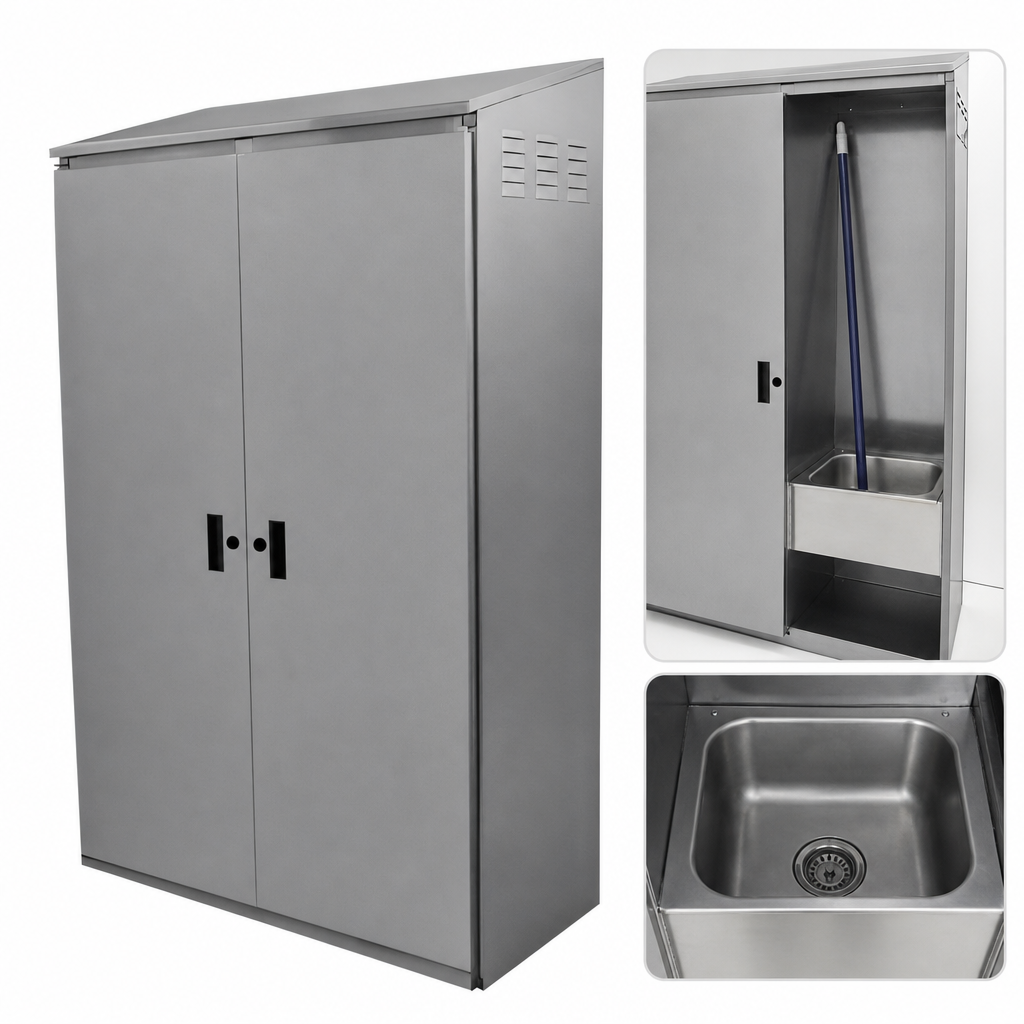

Advance Tabco Double-Width Mop Sink Cabinet – Right-Hand Sink (Model 9-OPC-84DR)
50-3/8" W × 22-3/4" D × 84" H • NSF ListedConsolidate your janitorial station into a single, space-saving footprint. This all-stainless cabinet combines a full-size mop sink, ventilated storage, and dedicated mop/bucket organization—ideal for schools, healthcare, foodservice, and any facility that demands a neat, sanitary maintenance area.
Key Features
- Integrated 20" W × 16" D × 12" deep mop sink on the right; 16 ga 304 SS bowl with drain included
- Left-side roll-in bay fits most commercial mop buckets (20-3/8" clear opening)
- (4) fixed shelves: 3 on storage side, 1 above sink for chemicals or tools
- (2) stainless mop holders keep wet mops off the floor for faster drying
- Slotted side panels & center partition provide passive ventilation
- Double hinged doors with magnetic catches; pre-punched for optional SU-27 lock
- All TIG-welded, satin-finished seams for strength and easy cleaning
- NSF certified for regulated environments
Materials & Construction
- Sink bowl: 16 ga Type 304 stainless steel
- Sink apron: 18 ga Type 304 stainless steel
- Cabinet body & shelves: 18 ga Type 430 stainless steel
- Stainless floor & rear panels with 2" IPS brass drain assembly
Specifications
| Overall dimensions | 50-3/8" W × 22-3/4" D × 84" H |
|---|---|
| Shelf configuration | (3) left-side shelves @ 15" spacing, (1) right-side shelf above sink |
| Mop sink bowl | 20" W × 16" D × 12" deep, 2" IPS drain |
| Bucket bay clearance | 20-3/8" W × 36" H (front opening) |
| Ventilation | Slotted end panels & partition |
| Door style | Double, right/left hinged, magnetic closure |
| Finish | Satin polish, welded seams blended |
| Certifications | NSF |
Popular Options (sold separately)
- SU-27 keyed door lock kit
- K-94-SHELF additional fixed shelf (84" high cabinets)
- K-94-BACK or K-94-BACK-300 stainless rear panel
- K-472 8" O.C. faucet holes (requires faucet hole height spec)
- K-240 service faucet
Installation note: Cabinet ships fully welded. Verify doorway clearances prior to delivery and ensure the 2" waste line is roughed-in at the desired location.
Advance Tabco continuously improves product design; specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
84.0in
Width
50.38in
Depth
22.75in
Shipping Weight
390.0lbs
Construction
stainless steel
Height
84"
Overall Width (side - side)
49" - 54"
Specifications
Cabinet with Mop Sink, 50-3/8"W x 22-3/4D x 84"H O.A., double hinged doors, right side mop sink 20"W x 16"D front to back x 12" deep (drain included), storage for mop bucket to roll in on left, (2) mop holders, (4) fixed intermediate shelves (3 on left, 1 on right above sink), slotted side panels for ventilation, 16/304 series stainless steel sink bowl, 18/304 series sink bowl apron, 18/430 series stainless steel cabinet, NSF
