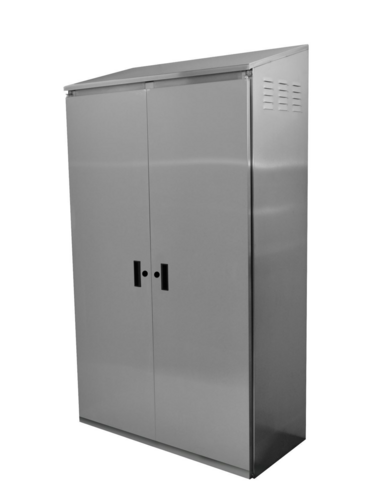

Double Width Stainless Steel Mop Sink Cabinet with Left-Side Sink

20 x 16 x 12 Inch Sink Bowl, Double Hinged Doors, Fixed Shelves and Mop Holders

Give your crew a durable wash-up station and storage cabinet in one heavy-duty, floor-standing stainless steel unit.

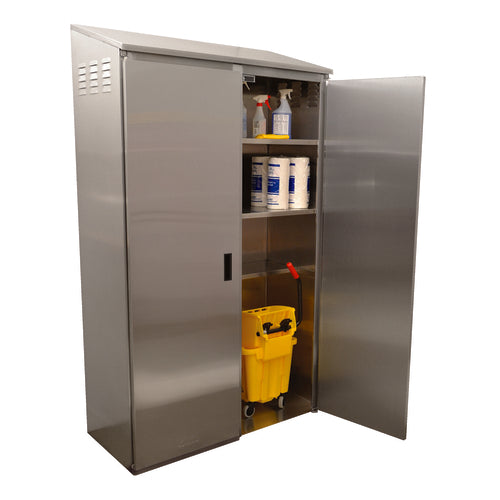

  • Double-width floor cabinet with a left-side mop sink and right-side roll-in opening for a mop bucket.
  • Overall size measures 50-3/8 inches wide x 23 inches deep x 84 inches high.
  • 20 x 16 x 12 inch sink bowl includes the drain assembly for wash-up tasks.
  • Includes 4 fixed intermediate shelves and 2 mop holders for organized storage.
  • TIG-welded stainless steel construction with slotted side panels for ventilation.
  • Doors are prepunched for an optional SU-27 lock, with back panel and faucet-related options available.

Overall Dimensions:

50.38"W x 23.0"D x 84.0"H

Product Weight:

390.0 lb

Left-Side Mop Sink Layout

The mop sink is positioned on the left, leaving the right side open for mop-bucket storage and roll-in access.

20 x 16 x 12 Inch Sink Bowl

Deep stainless steel bowl is sized for janitorial use and includes the drain assembly.

Double Hinged Doors

Twin hinged doors provide access to the cabinet storage area.

Four Fixed Intermediate Shelves

Three shelves are located on the storage side and one shelf sits above the sink.

Two Mop Holders

Built-in holders keep two mops stored off the floor.

Ventilation Slots

Slotted side panels allow airflow through the cabinet.

304 and 430 Series Stainless Steel Construction

The sink bowl is 16 gauge 304 series stainless steel, the apron is 18 gauge 304 series stainless steel, and the cabinet is 18 gauge 430 series stainless steel.

TIG-Welded Satin Finish

All TIG-welded construction with blended seams creates a durable satin-finished cabinet.

Optional Accessory Prep

Doors are prepunched and capped for an optional SU-27 door lock, and the cabinet can accept back panel, faucet hole, and service faucet options.

Type Mop Sink Cabinet
Style Double Width
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Mop Sink Location Left Side
Drain Connection Size 2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 51 Inches
Shipping Depth 23 Inches
Shipping Height 84 Inches
Shipping Weight 390 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Parts list PDF Download

Frequently Asked Questions

The mop sink is on the left side.
The sink bowl measures 20 x 16 x 12 inches.
Four fixed intermediate shelves are included, with three on the storage side and one above the sink.
Yes, the right side includes an opening for a mop bucket to roll into the cabinet.
No, the doors are prepunched and capped for an optional SU-27 door lock.
The sink is designed to fit a 2-inch waste line and includes the drain assembly.
