Advance Tabco  |  SKU: 9-OPC-84DL-300  |  UPC: 747545206121

Advance Tabco 9-OPC-84DL-300 Mop Sinks

$6,798.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Video
Related Searches
Commercial Plumbing Supplies Commercial Sinks Mop Sinks Mop Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

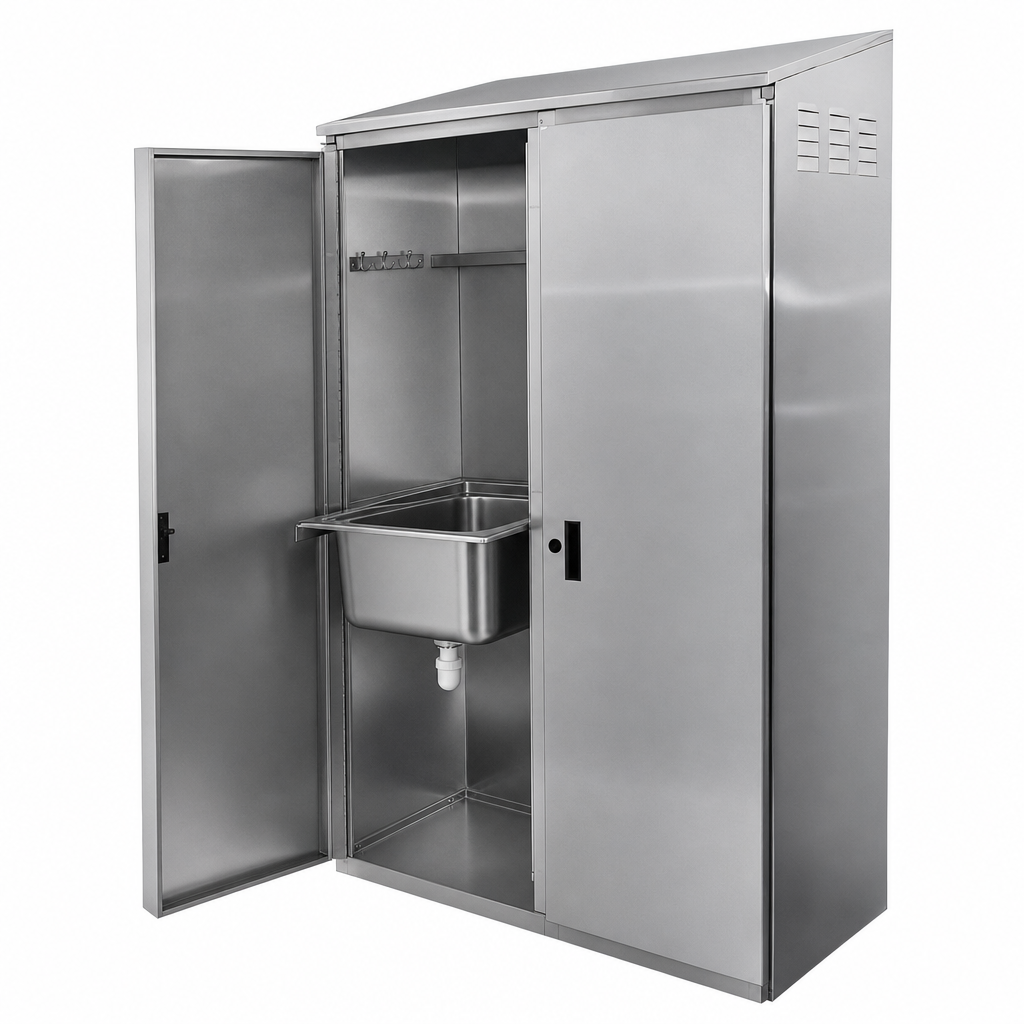

Advance Tabco Double-Width Mop Sink Cabinet – Left-Hand Sink

50-3/8" W × 22-3/4" D × 84" H • NSF Certified 300-Series Stainless Steel

Tidy up your janitorial closet and streamline clean-ups with this all-in-one stainless-steel cabinet. A fully welded, left-side mop sink pairs with generous shelving and a roll-in bay for your bucket— everything you need in just 4 ½ ft of wall space.

Key Features

  • Integrated 20" W × 16" D × 12" deep mop sink (drain & strainer included)
  • Left-hand sink layout keeps the right side clear for a mop bucket to roll straight in
  • (4) fixed intermediate shelves – 3 on the storage side, 1 conveniently above the sink
  • (2) stainless-steel mop holders mounted above the sink
  • Slotted side and center panels provide natural ventilation and faster drying
  • Double hinged doors with magnetic catches; pre-punched & capped for an optional SU-27 lock
  • All TIG-welded construction with a smooth satin finish for easy wipe-downs
  • NSF listed for safe use in commercial kitchens, healthcare, education and more

Commercial-Grade Stainless Steel

  • Sink bowl: 16 ga type 304 stainless steel – extra-thick for daily bucket impact
  • Sink apron: 18 ga type 304 stainless steel
  • Cabinet: 18 ga type 300-series stainless steel for long-lasting corrosion resistance

At-a-Glance Specs

Overall dimensions 50 3/8" W × 22 3/4" D × 84" H
Sink location Left side
Sink bowl size 20" W × 16" D × 12" H
Shelves 4 fixed (3 right / 1 left above sink)
Roll-in clearance 20 3/8" W opening for standard mop buckets
Mop holders 2 included
Drain connection 2" IPS – K-16 stainless-steel strainer & brass body
Ventilation Slotted side panels & center partition
Door style Double hinged, magnet-latch
Certifications NSF

Popular Options (sold separately)

  • SU-27 keyed door lock kit
  • K-94-BACK or K-94-BACK-300 stainless back panel for island placement
  • K-472 faucet holes (8" O.C.) + K-240 service faucet
  • K-94-SHELF additional fixed mid-shelf

Need a right-hand sink or custom faucet cut-outs? Contact us for a Smart Fabrication™ quote.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

84.0in

Width

50.38in

Depth

22.75in

Shipping Weight

390.0lbs

Construction

stainless steel

Overall Width (side - side)

49" - 54"

Height

84"

Specifications

Cabinet with Mop Sink, 50-3/8"W x 22-3/4"D x 84"H O.A., double hinged doors, left side mop sink 20"W x 16"D front to back x 12" deep (drain included), storage for mop bucket to roll in on right, (2) mop holders, (4) fixed intermediate shelves (3 on right, 1 on left above sink), slotted side panels for ventilation, 16/304 series stainless steel sink bowl, 18/304 series sink bowl apron, 18/300 series stainless steel cabinet, NSF
