Advance Tabco | SKU:
9-OPC-84
Advance Tabco 9-OPC-84 Mop Sinks
$4,764.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 9-OPC-84 Mop Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 9-OPC-84 Mop Sinks
$4,764.00
Unit price
/
Unavailable
Description

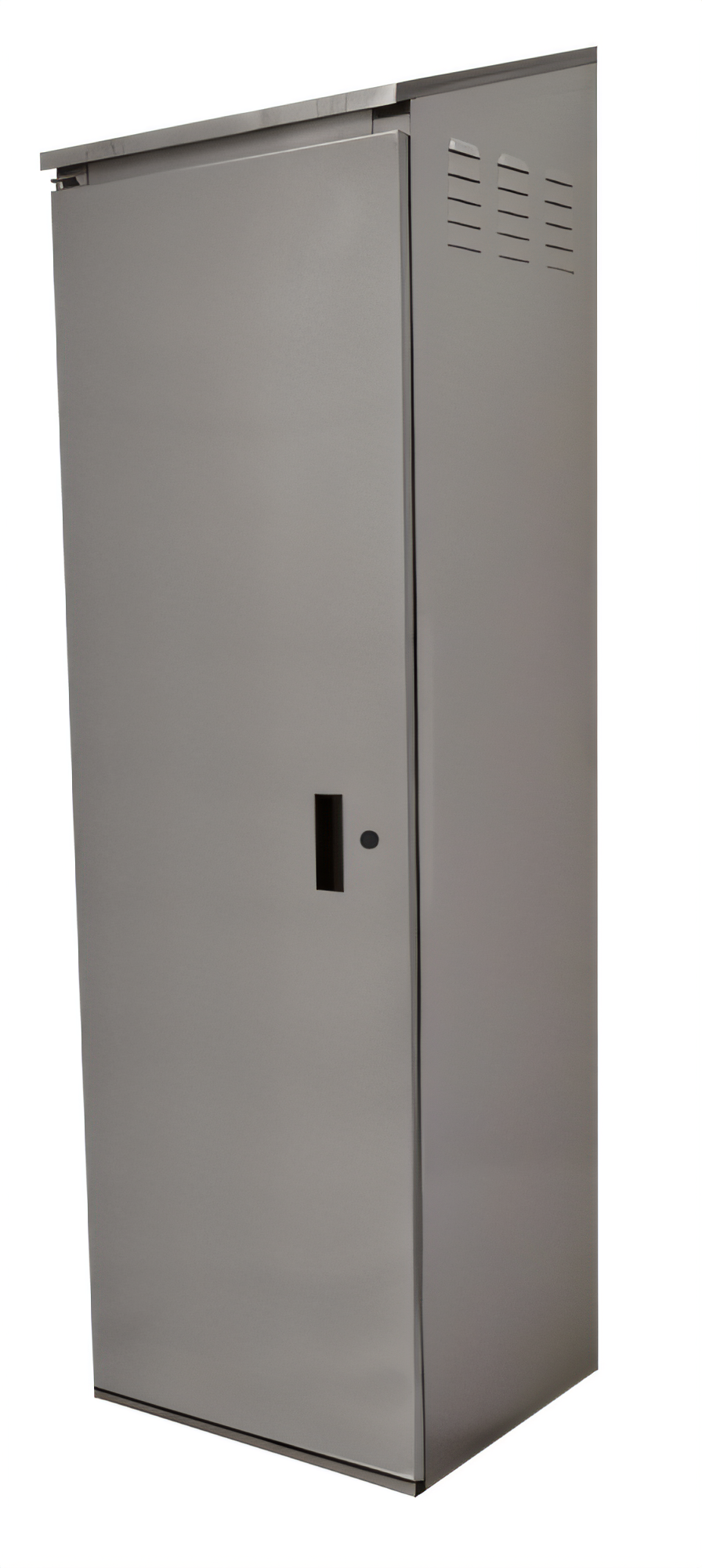

Advance Tabco 9-OPC-84 Single-Door Mop Sink Cabinet
25-3/16" W × 22-3/4" D × 84" H • Integrated 16" × 20" × 12" Floor Sink • NSF ListedConsolidate your janitorial set-up into one sanitary, space-saving unit. The Advance Tabco 9-OPC-84 pairs a heavy-duty floor mop sink with ventilated storage and welded stainless-steel strength—perfect for restaurants, healthcare facilities, schools, and commercial buildings that demand durability and code compliance.
Key Features

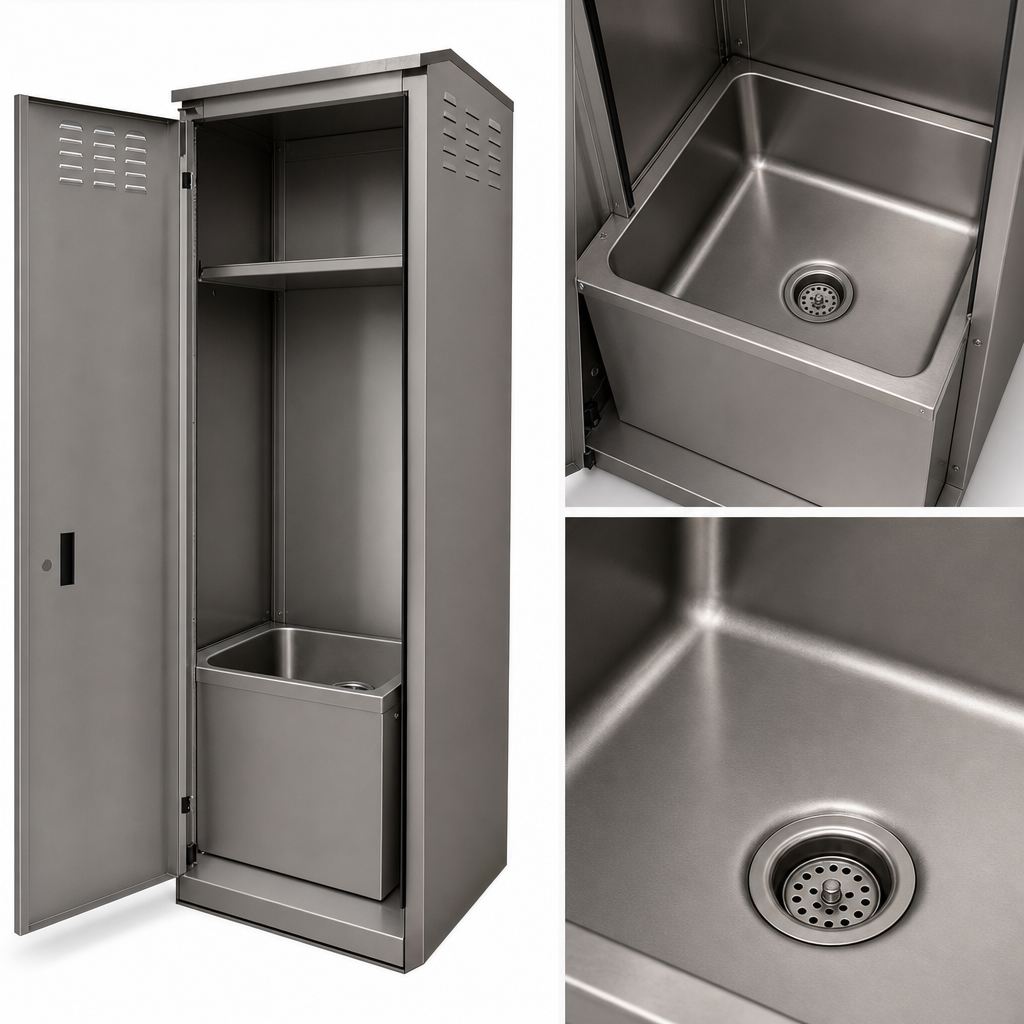

- Integrated 16" × 20" × 12" mop sink with brass drain & stainless strainer plate
- All TIG-welded 16 ga. 304 SS bowl & 18 ga. apron with satin finish
- 18 ga. 430 SS cabinet—corrosion-resistant & easy to sanitize
- Left-hinged door (pre-punched for optional lock); recessed handle for a sleek profile
- Slotted side panels for continuous ventilation & rapid drying
- (2) Molded mop/broom holders—one on each sidewall
- (1) Fixed intermediate shelf keeps chemicals & supplies organized
- Open rear for fast, unobstructed plumbing connections
- Built to NSF standards for food-service & healthcare applications
Specifications
| Overall dimensions | 25 3⁄16" W × 22 3⁄4" D × 84" H |
|---|---|
| Cabinet material | 18 ga. 430 series stainless steel |
| Sink bowl material | 16 ga. 304 series stainless steel |
| Sink apron material | 18 ga. 304 series stainless steel |
| Bowl size | 16" L × 20" W × 12" D |
| Drain outlet | 2" IPS with brass body & compression-ring assembly |
| Shelf configuration | (1) fixed intermediate utility shelf |
| Door swing | Left-hand (right-hand available—see options) |
| Shipping weight | Approx. 345 lb |
| Certifications | NSF |
Factory Options & Accessories
- CAB-R – Convert to right-hand door swing
- SU-27 – Door lock kit for secure chemical storage
- K-94-SHELF – Additional fixed mid-shelf
- K-94-BACK / K-94-BACK-300 – Stainless back panel for island installs
- K-472 – 8" O.C. faucet holes (specify height)
- K-240 – Service faucet
Need an all-300 series stainless cabinet? Order model 9-OPC-84-300.
Installation note: Cabinet ships with an open rear to simplify connection to a 2" waste line.
Verify local code requirements prior to installation.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
84.0in
Width
25.19in
Depth
22.75in
Shipping Weight
345.0lbs
Height
84"
Construction
stainless steel
Overall Width (side - side)
24" - 30"
Specifications
Cabinet with Mop Sink, 25-3/16"W x 22-3/4"D x 84"H, mop sink base with drain (bowl 16” x 20” x 12”), left hinged door, (2) mop holders, (1) fixed intermediate shelf, slotted side panels for ventilation, 16/304 series stainless steel sink bowl, 18/304 series stainless steel sink bowl apron, 18/430 series stainless steel cabinet, NSF (right hinged door available on request)
