Advance Tabco 9-OP-48DF Mop Sinks

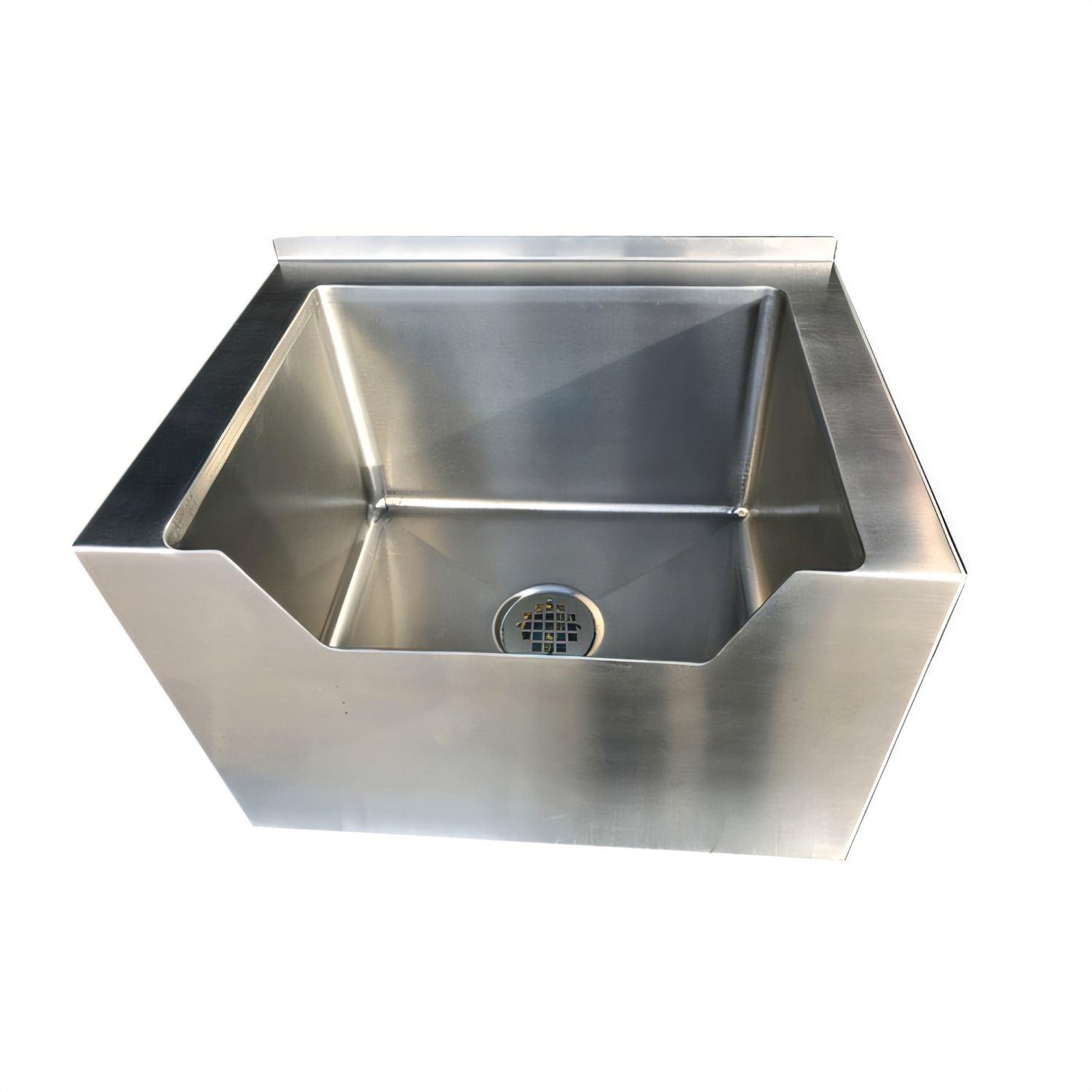

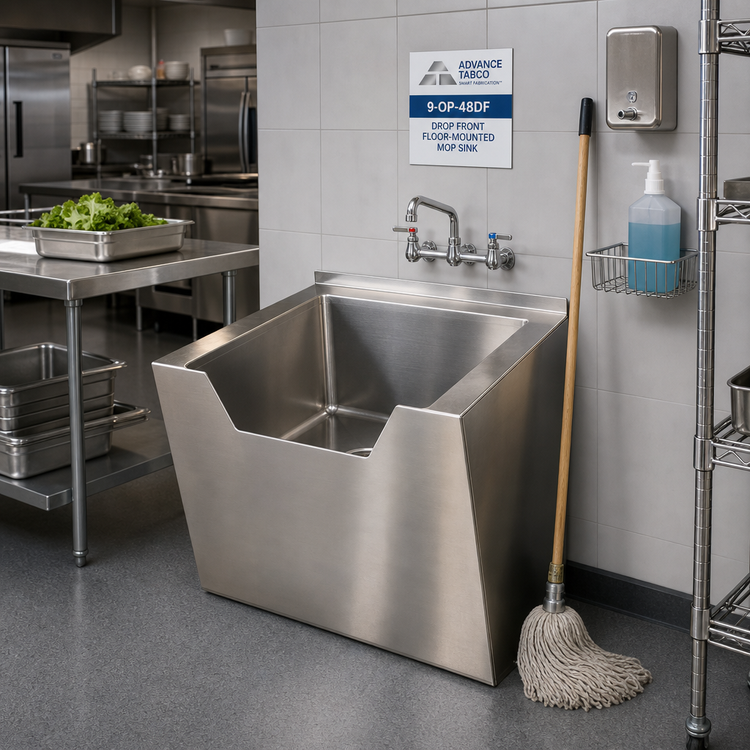

Advance Tabco 9-OP-48DF Drop-Front Floor Mop Sink

Engineered for fast, safe and sanitary janitorial work, the 9-OP-48DF free-flow mop sink installs flush to your floor so staff never need to lift heavy buckets again. A 2" IPS K-16 drain, fully welded 16-gauge 304 stainless construction and a handy drop-front notch make this the ultimate solution for high-volume maintenance rooms, healthcare facilities and commercial kitchens.

Why You’ll Love It

• Drop-front design lets you tip mop buckets directly into the bowl without dangerous lifting.

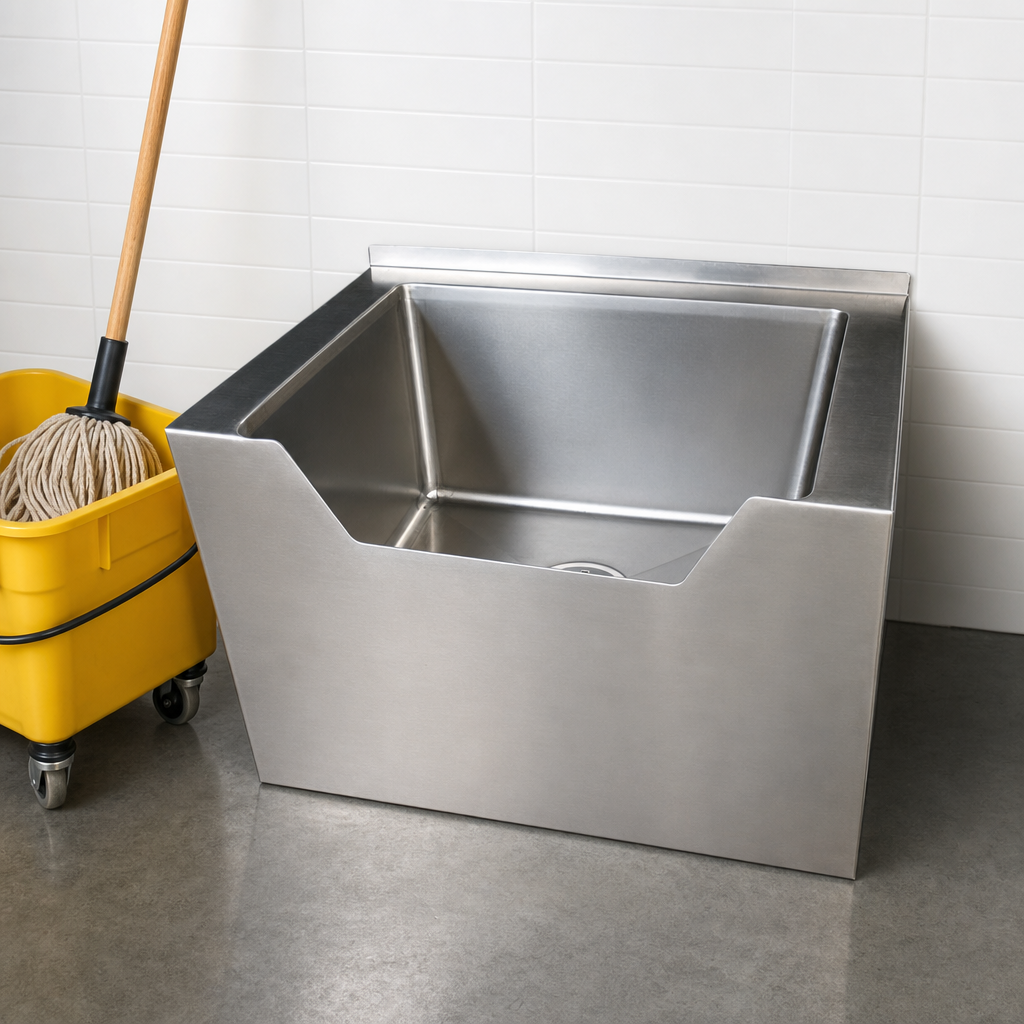

• Floor-mounted installation eliminates a step up/down and speeds workflow.
• Rugged 16-ga type 304 stainless steel bowl and apron resist corrosion and chemicals.
• K-16 free-flow drain with 2" IPS outlet, stainless strainer plate and brass body included.
• TIG-welded seams ground smooth to a satin finish for easy cleanup and a professional look.
• Integrated tile edge on the rear creates a watertight, sanitary wall seal.
• Rectangular 28" × 20" bowl provides generous capacity for wringers, buckets and squeegees.

Dimensions & Specifications

Optional Accessories

• K-299D — 16" high side & back splashes (all three sides, 16 ga)
• K-290L / K-290R / K-290LRD — Left, right or two-side splashes with back panel
• K-240 Service Faucet* with vacuum breaker
• K-242 23" wall-mount mop hanger
• K-243 Stainless steel mop drainage tray
• K-244 30" hose & hanger kit
• K-245 8" × 24" utility shelf  |  K-246 8" × 36" utility shelf

* K-240 faucet is intended for non-potable water and does not meet Federal Lead-Free standards.

Installation Notes

• Sinks mount directly to finished floor; ensure a level, properly reinforced substrate.
• Connect drain to a 2" waste line using the provided compression fittings.
• Seal rear tile edge and any optional splashes with NSF-approved silicone.
