Advance Tabco  |  SKU: 9-OP-40DF  |  UPC: 747545172013

Advance Tabco 9-OP-40DF Mop Sinks

$1,810.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Commercial Plumbing Supplies Commercial Sinks Mop Sinks Mop Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

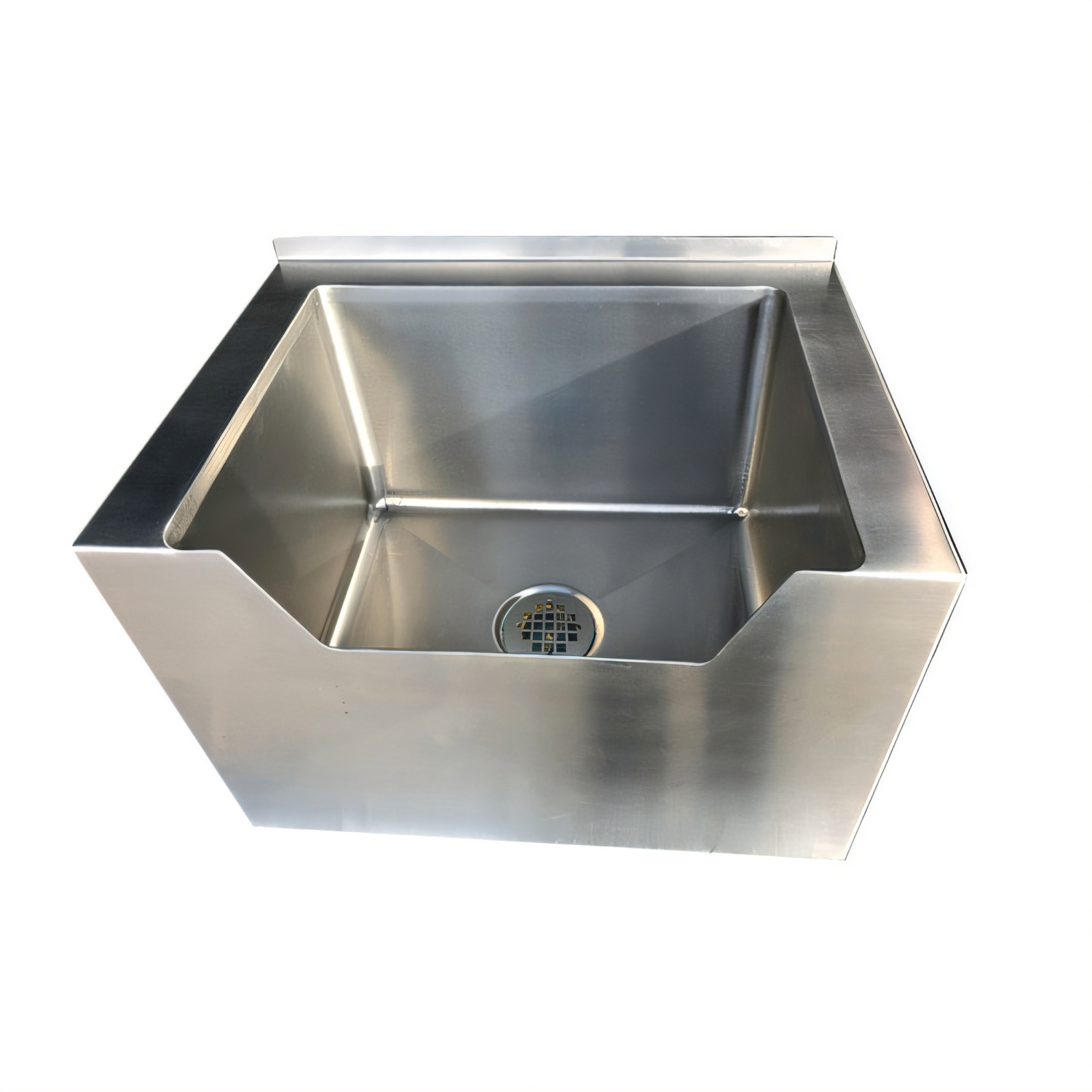

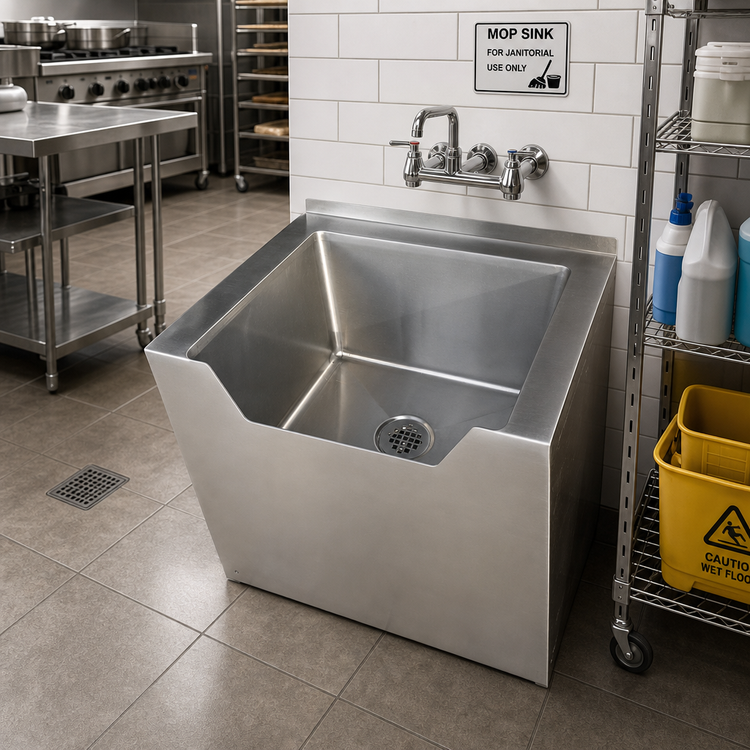

Advance Tabco 9-OP-40DF Drop-Front Stainless Steel Mop Sink

25" W x 18-1/2" D x 16" H • 16 ga 304 SS • K-16 Free-Flow Drain

Tackle daily clean-up without the strain of lifting heavy buckets. The floor-mounted 9-OP-40DF features a convenient drop-front design that lets staff roll mop buckets directly into a generous 12"-deep bowl—speeding up work while protecting backs and floors alike.

Key Benefits

  • Drop-front notch makes dumping mop water quick and ergonomic.

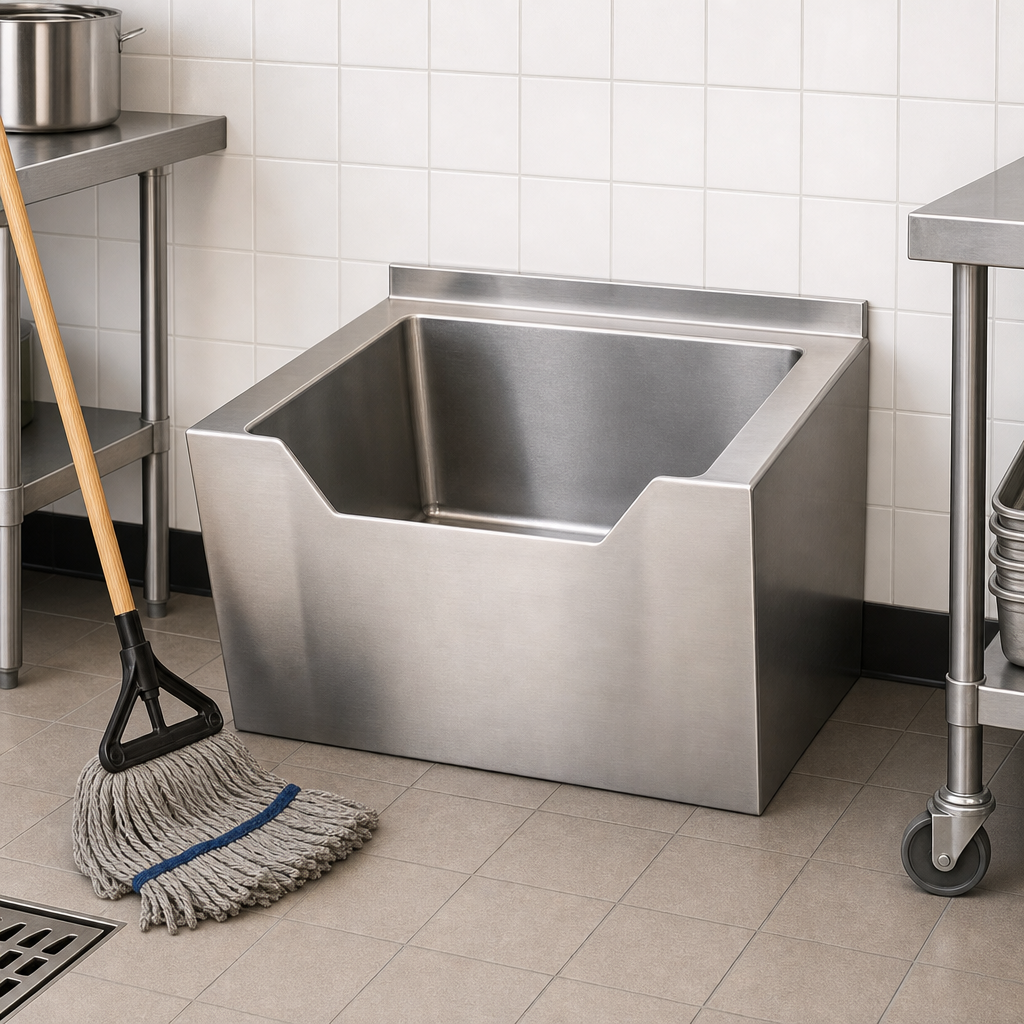

  • Floor-mount installation contains splashes at ground level and fits most janitorial closets.
  • Heavy-duty 16-gauge, type 304 stainless steel resists corrosion, chemicals & disinfectants.
  • Spacious rectangular bowl (20" W x 16" F-B x 12" D) handles large buckets and wringers.
  • Integral tile edge on rear creates a sanitary, flush fit against finished walls or floor recesses.
  • All TIG-welded seams are blended to a smooth satin finish for easy wipe-down.
  • Includes K-16 free-flow drain assembly with 2" IPS outlet for fast, unrestricted drainage.

At-a-Glance Specifications

Model 9-OP-40DF
Installation Floor mounted, drop-front (notched)
Overall Dimensions (W x D x H) 25" x 18-1/2" x 16"
Bowl Size (W x F-B x Depth) 20" x 16" x 12"
Material 16 ga type 304 stainless steel (sink bowl & apron)
Drain K-16 free-flow drain, 2" IPS outlet
Shipping Weight Approx. 85 lb

Optional Accessories (sold separately)

  • K-298 – 16" high three-sided splash set for full perimeter protection
  • K-288L / K-288R – 16" high splash (left or right & back)
  • K-240 – Service faucet with vacuum breaker* non-potable water only
  • K-242 – 23" wide wall-mount mop hanger
  • K-243 – Stainless steel mop drainage tray
  • K-244 – 30" hose & hanger kit
  • K-245 – 8" x 24" utility shelf  |  K-246 – 8" x 36" utility shelf
  • K-16 – Replacement drain kit
Installation Tip: Verify floor recess and 2" waste-line clearance before setting the sink. A flush, level installation is critical for proper drainage and ADA compliance.

Looking for custom fabrication, additional shelves, or splash guards? Contact us for a quote.

Features & Specs

Manufacturer

Advance Tabco

Height

16.0in

Width

25.0in

Depth

18.5in

Shipping Weight

85.0lbs

Bowl Height

12" deep

Style

floor mounted

Bowl Depth

16" front-to-back

Bowl Width (left to right)

20"

Specifications

Mop Sink with Drop Front, floor mounted, 25"W x 18-1/2"D x 16"H (overall), 20"W x 16" front-to-back x 12" deep (bowl size), free flow drain with 2" IPS outlet, stainless steel construction
