Advance Tabco | SKU:
9-OP-36FM-SSRL
Advance Tabco 9-OP-36FM-SSRL Mop Sinks
$3,492.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 9-OP-36FM-SSRL Mop Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 9-OP-36FM-SSRL Mop Sinks
$3,492.00
Unit price
/
Unavailable
Description

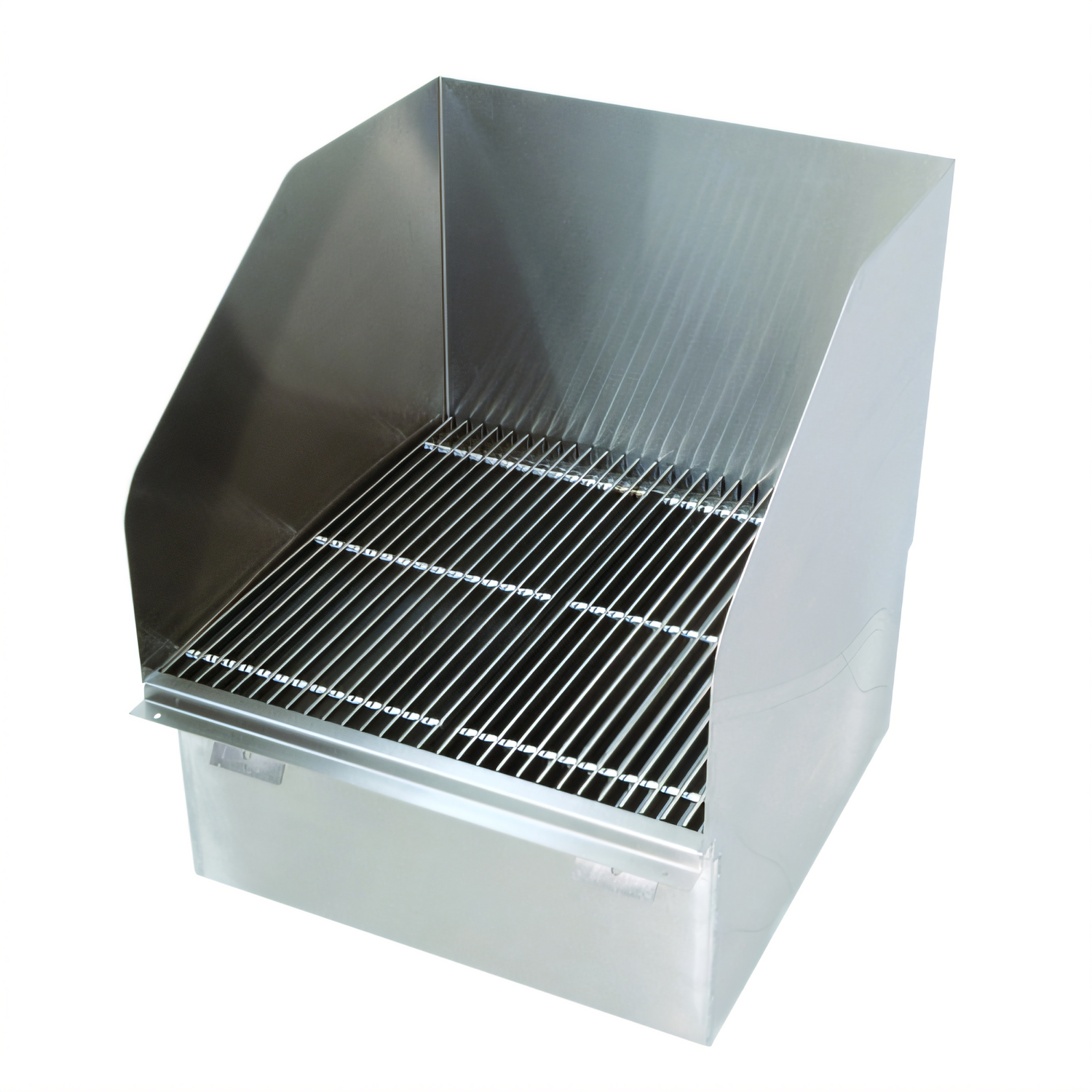

Advance Tabco 9-OP-36FM-SSRL Flush-Mount Mop Sink — 33-3/8" W x 24" D

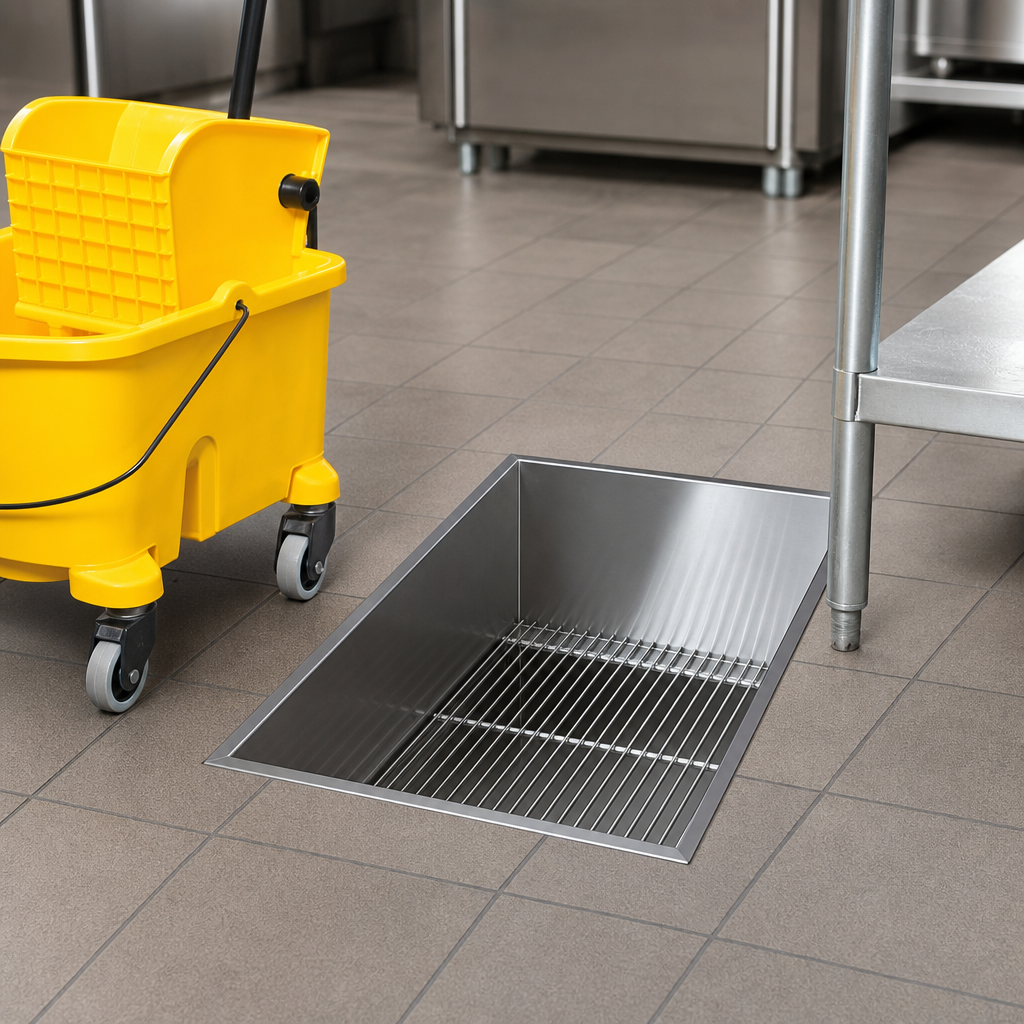

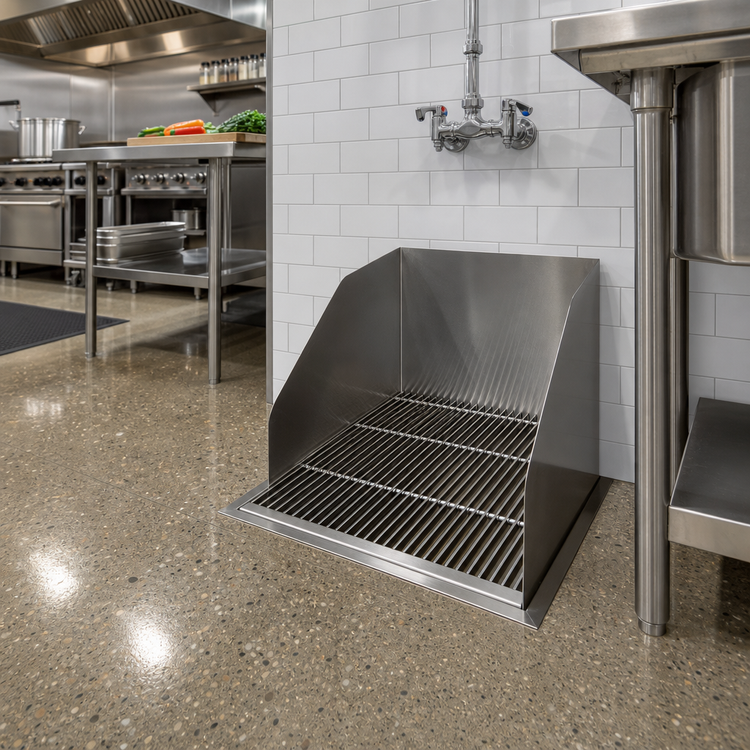

304 Stainless Steel • 3-Side Splash • “Subway-Style” GrateEliminate heavy lifting and messy spills. This floor-level mop sink lets custodians roll full mop buckets straight onto the grate, rinse, drain and roll away in seconds—all while protecting walls and surrounding floors from splash-back.
Key Benefits
- Flush-to-floor design allows effortless bucket roll-in & roll-out.
- 16 ga. type 304 stainless steel bowl stands up to harsh cleaners and daily abuse.
- Three 16-1/2" high splashes (back, left & right) confine water inside the sink.
- Two-piece, removable stainless “subway-grate” keeps casters from getting trapped and lifts out for deep cleaning.
- Perforated stainless steel strainer basket with handle catches debris before it reaches the drain.
- 4" O.D. x 3" H drain sleeve accepts up to a 4" waste line; interior slope speeds drainage.
- All TIG-welded seams are blended to a smooth, sanitary satin finish.
Technical Specifications
| Model | 9-OP-36FM-SSRL |
|---|---|
| Installation | Flush-mount (recessed) — new construction |
| Overall Size | 33-3/8" L × 24" W |
| Bowl Size | 33-3/8" L × 22" W × 10" D |
| Splash Guards | Back, Left & Right — 16-1/2" H above finished floor |
| Grating | Stainless steel, 2 sections, removable |
| Drain Connection | 4" O.D. x 3" sleeve (Fernco® coupling by others) |
| Material | 16 ga. 304 stainless steel, satin finish |
| Shipping Weight | Approx. 158 lb |
Installation note: Because the sink body is recessed below the finished floor,
it is intended for new construction or major remodels only. Coordinate with plumbing and
concrete contractors and verify local code compliance before ordering.
Optional Accessories (sold separately)
- K-240 Service Faucet (8" O.C.)
- K-03 Vacuum Breaker Repair Kit
- K-16 Replacement Drain Assembly
- FT-2 Replacement Strainer Basket
- K-242 23" Wall-Mount Mop Hanger
- K-244 Hose & Hanger Kit
Advance Tabco continually improves its products and may change specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
28.0in
Width
33.38in
Depth
24.0in
Shipping Weight
158.0lbs
Bowl Depth
24" front-to-back
Bowl Height
10" deep
Style
floor mounted
Specifications
Mop sink, flush-with-floor (recessed into floor), 33-3/8"W x 24"D x 10" deep bowl, with 16-1/2" tall side & rear splashes (above floor), with removable stainless steel subway grating, allows mop buckets to roll over sink at floor level, removable stainless steel strainer basket, 4" O.D. waste pipe 3" tall
