Advance Tabco  |  SKU: 9-OP-36FM-SSL

Advance Tabco 9-OP-36FM-SSL Mop Sinks

$3,375.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Video
Related Searches
Commercial Plumbing Supplies Commercial Sinks Mop Sinks Mop Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

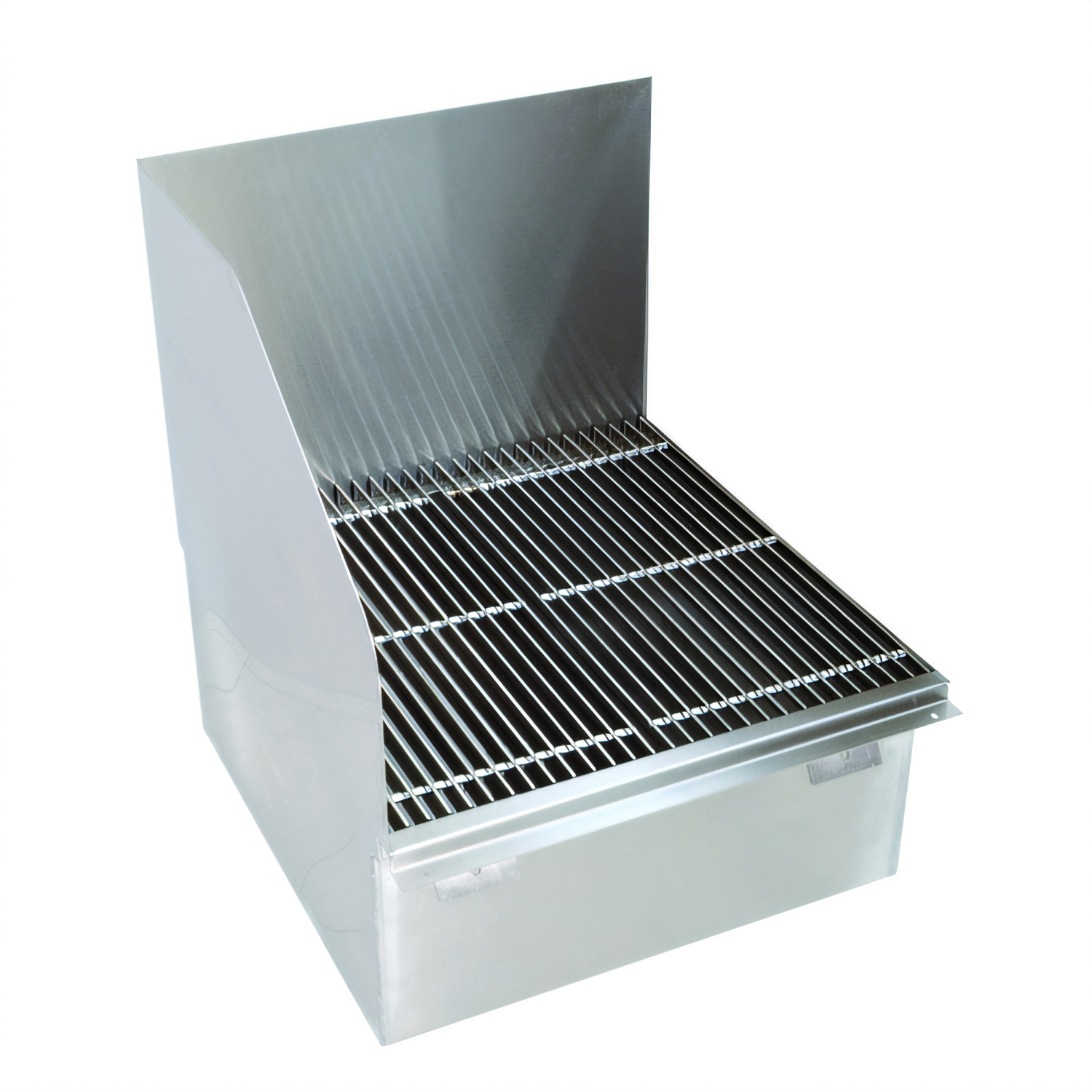

Advance Tabco Flush-Mount Mop Sink – 33-3/8" x 24"

Rear & left splashes • stainless steel subway grate • 10" deep bowl

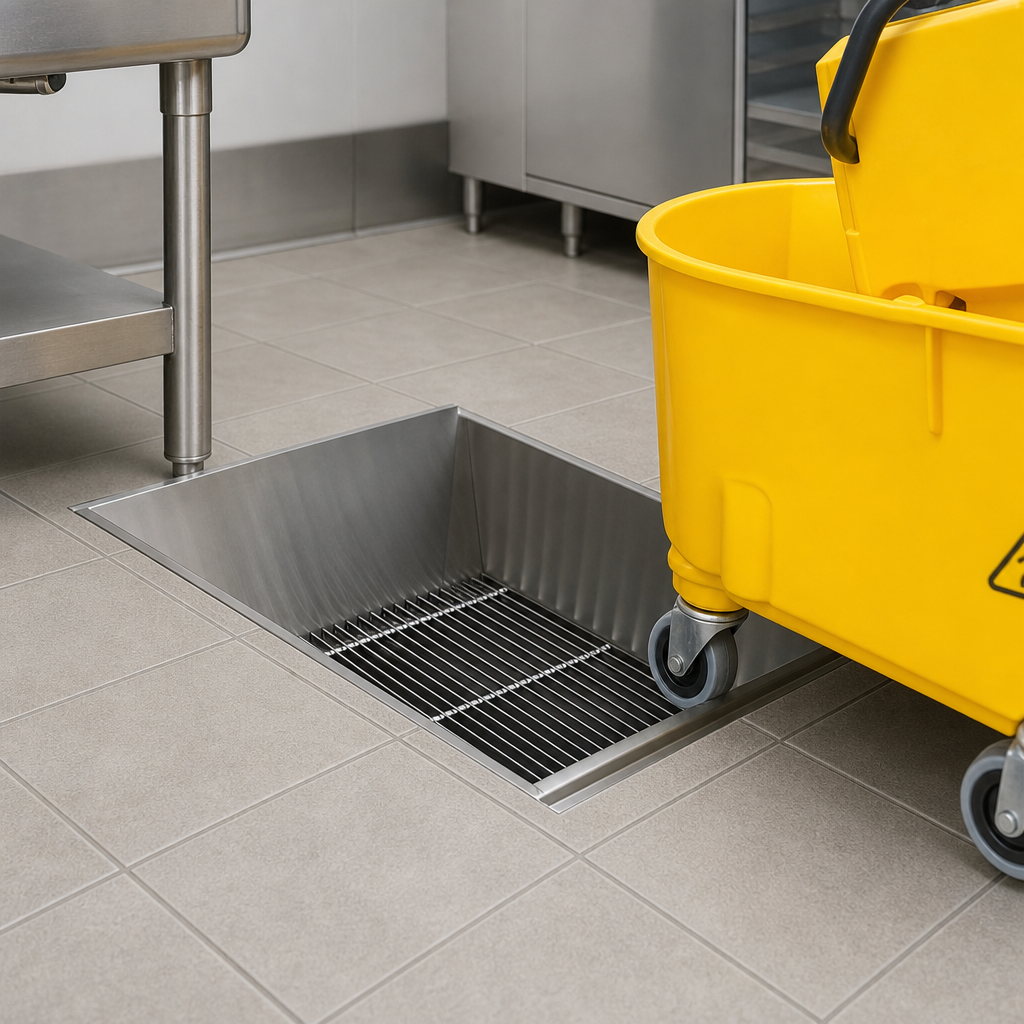

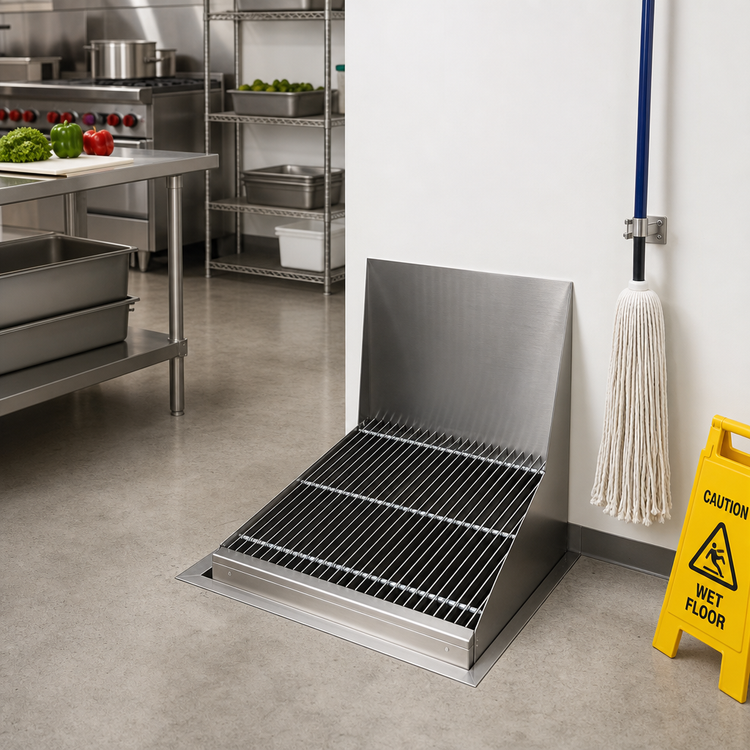

Recessed completely into the finished floor, this heavy-duty stainless steel mop sink lets service carts and mop buckets roll in effortlessly—eliminating lifting, reducing trip hazards, and speeding up clean-up in the toughest commercial environments.

Key Benefits

  • Flush-to-floor installation provides a smooth, unobstructed transition from floor to sink.
  • Spacious 33-3/8" W x 24" D footprint with a full 10" deep bowl handles large mop buckets and rinse jobs with ease.
  • 16-1/2" high rear and left side stainless steel splashes protect surrounding walls and contain overspray.
  • Two-piece removable stainless steel “Subway-Style” grate supports rolling buckets while keeping casters from getting trapped.
  • Perforated stainless steel strainer basket with handle catches debris for quick, sanitary disposal.
  • All-TIG-welded, 16-ga. type 304 stainless steel construction with a blended satin finish stands up to daily abuse.
  • Integral 4" O.D. drain sleeve (3" tall) is pitched toward the waste outlet for fast, complete drainage.

Ideal For

  • Commercial & institutional kitchens
  • Janitorial and housekeeping closets
  • Healthcare facilities
  • Schools, universities & stadiums
  • Food-processing & manufacturing plants

Specifications

Overall footprint 33-3/8" W × 24" D (recessed)
Bowl size 33-3/8" W × 22" D × 10" H
Splashes 16-1/2" H rear & left
Grate Stainless steel, 2-piece, removable, closely spaced bars
Strainer Perforated stainless steel basket with lift handle
Drain connection 4" O.D. sleeve  |  3" long (accepts up to 4" waste pipe)
Material & finish 16-ga. type 304 stainless steel  |  satin finish
Approx. weight ≈ 150 lb
Installation Flush mount – for new construction or major renovation

What’s Included

  • Flush-mount mop sink body
  • Two-piece stainless steel subway grate
  • Stainless steel strainer basket

Service faucets, vacuum breakers, mop hangers, replacement drains and other accessories are available separately.

Important: This sink is designed for flush installation during new construction. Coordinate recess dimensions, floor tile height and plumbing connections before pouring concrete or setting tile.

Features & Specs

Manufacturer

Advance Tabco

Height

28.0in

Width

35.63in

Depth

24.0in

Shipping Weight

150.0lbs

Bowl Depth

24" front-to-back

Style

floor mounted

Bowl Height

10" deep

Specifications

Mop sink, flush-with-floor (recessed into floor), 33-3/8"W x 24"D x 10" deep bowl, with 16-1/2" tall rear & left side splashes (above floor), with removable stainless steel subway grating, allows mop buckets to roll over sink at floor level, removable stainless steel strainer basket, 4" O.D. waste pipe 3" tall
